Introduction
1.1 Product introduction
1.2 Detailed parameters
| parameters | |
|---|---|
| Model | BSD1218-A101KL68 |
| Size | 10.1 inch |
| Resolution | 800x1280 (10) |
| Display interface | MIPI |
| Visual Angle | 160° |
| Touch screen | multi-point capacitive touch |
Usage
2.1 Hardware connection

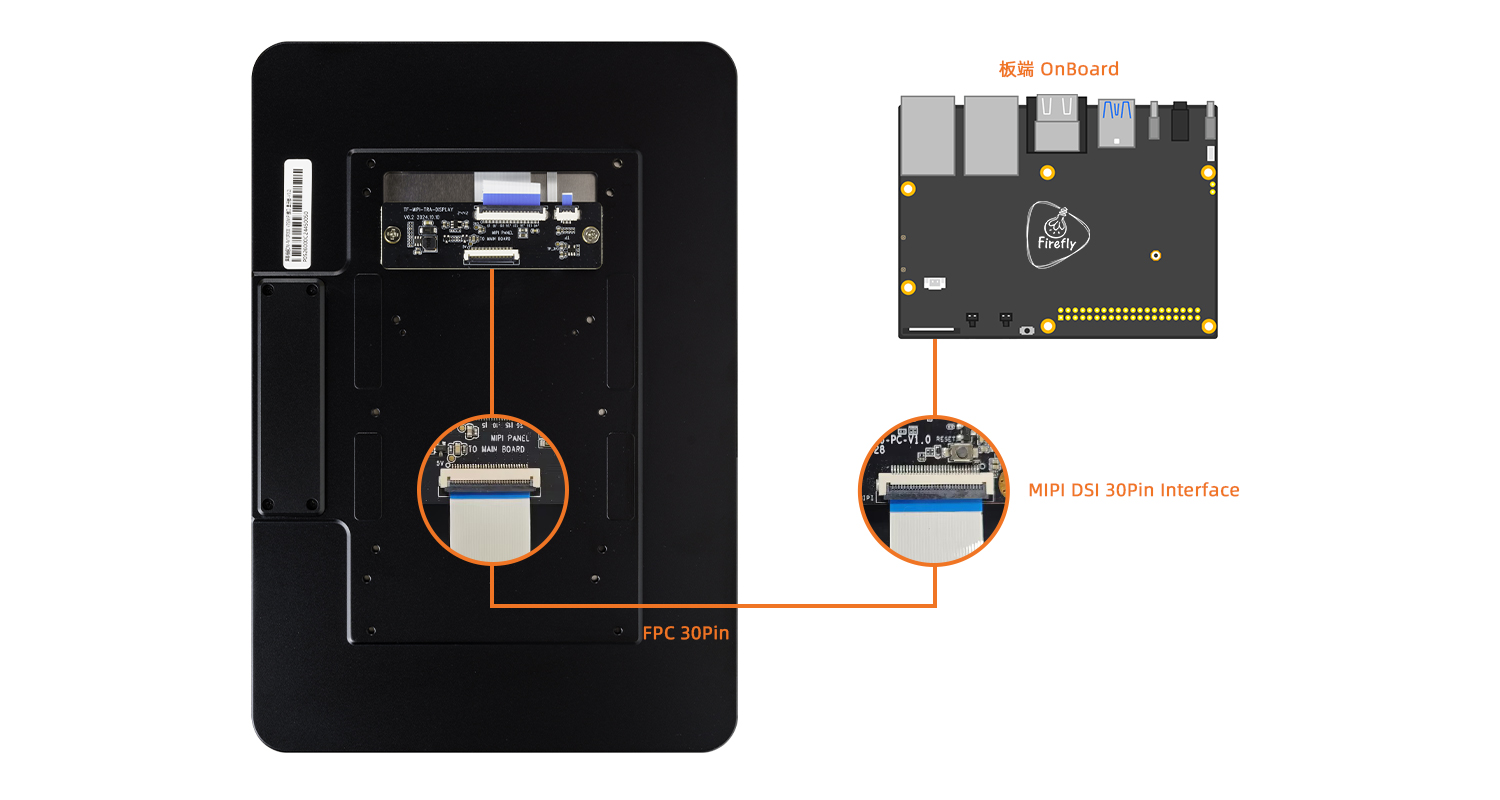

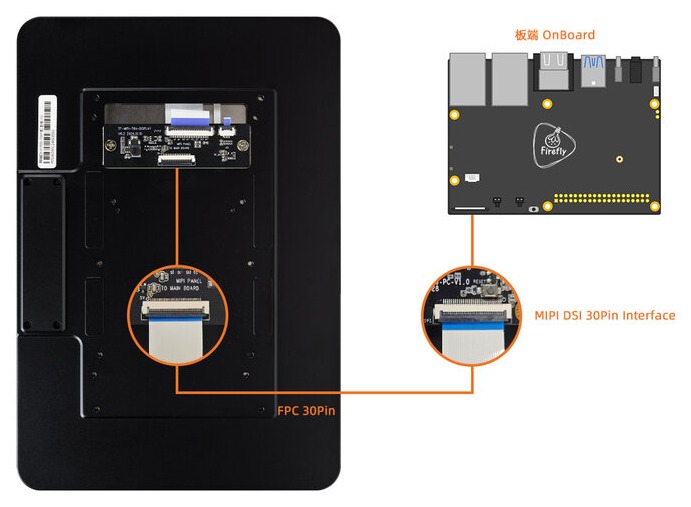

2.1.1 30pin MIPI DSI Interface Connection

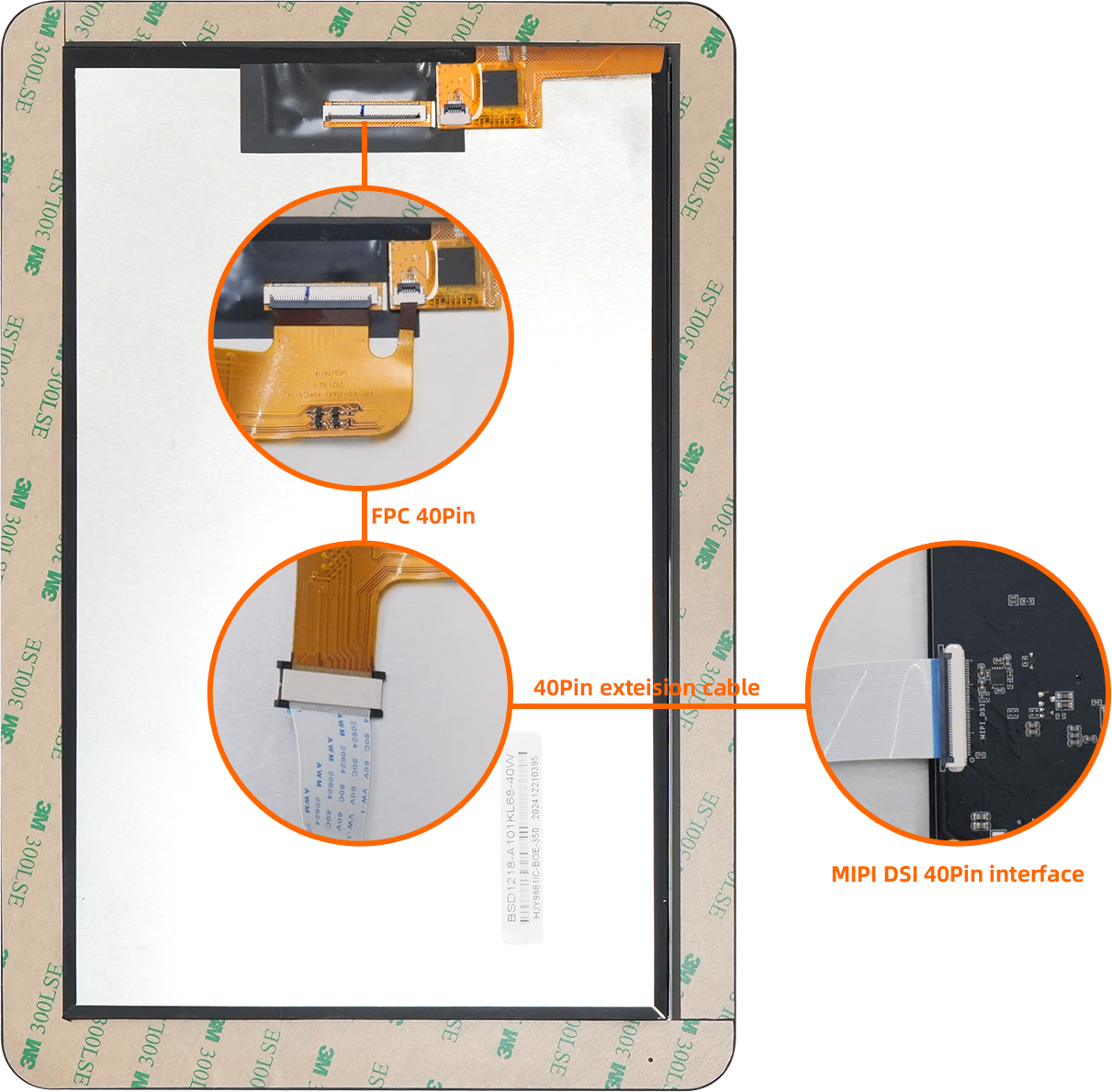

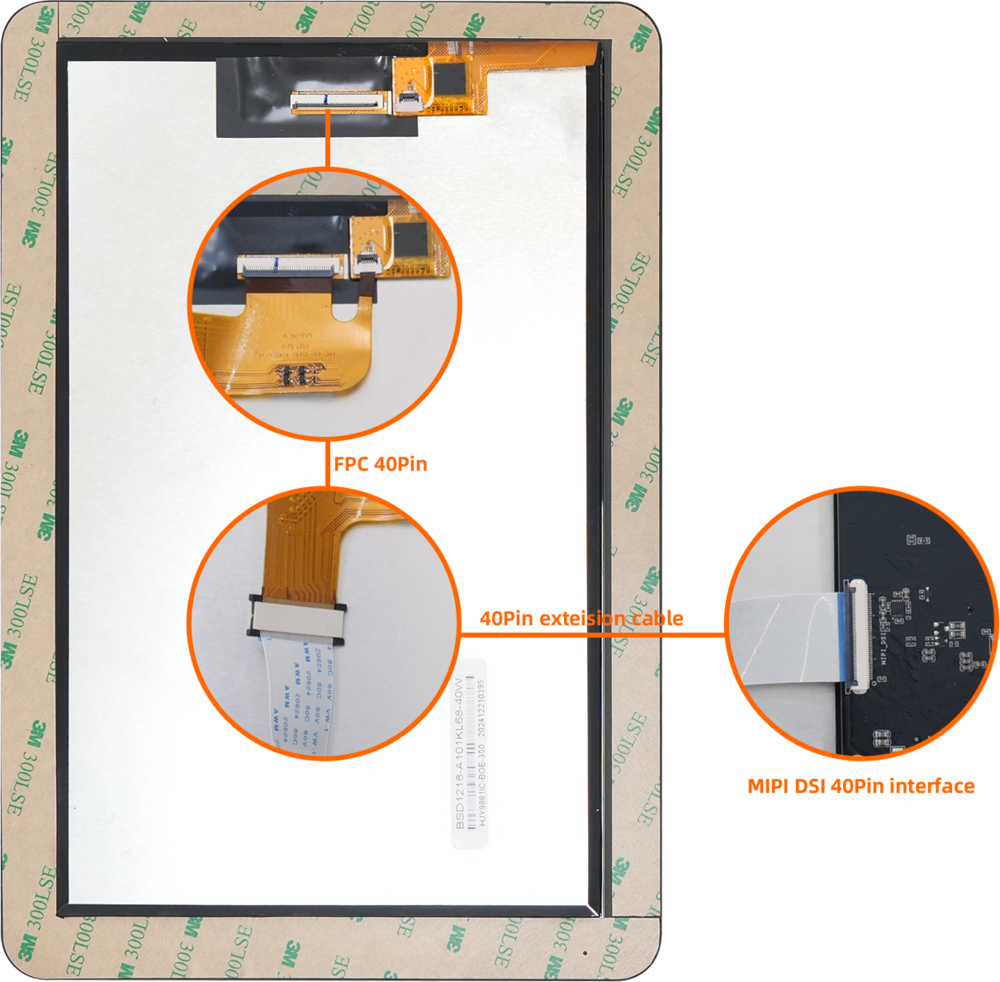

2.1.2 40pin MIPI DSI Interface Connection
Connection instructions:
- Due to variations in the silkscreen labels of different development boards, such as
MIPI_DSI,MIPI-DSI, orDSI_MIPI, the default connection should be to the interface labeled withMIPI DSI. - If the development board has multiple MIPI DSI interfaces, such as
MIPI_DSI0,MIPI_DSI1,DSI0_MIPI, orDSI1_MIPI, the default connection should be to the interface labeledMIPI DSI0. - Use the 30-pin same-side FPC cable , while in a powered-off state, connect it as shown in the diagram to the corresponding MIPI DSI interface on the board.
MIPI CSI interface, as this may burn out the module or development board.Detailed Interface Definition Reference:
| CPU | Board |
|---|---|
| RK3566 | AIO-3566JD4, ROC-RK3566-PC |
| RK3568 | AIO-3568J, ROC-RK3568-PC, ROC-RK3568-PC SE, ITX-3568JQ |
| RK3588 | ITX-3588J, AIO-3588Q, AIO-3588L |
| RK3588S | ROC-RK3588S-PC,AIO-3588SJD4,AIO-3588SG |
| RK3576 | ROC-RK3576-PC, AIO-3576Q, AIO-3576C |
| RK3399 | AIO-3399C, ROC-RK3399-PC-PLUS |
Firmware and Resource download
Related documents and firmware download, see the official website Resource Download
Tutorial
4.1 Flash firmware
| CPU | USB upgrade | SD upgrade |
|---|---|---|
| RK3566 | AIO-3566JD4, ROC-RK3566-PC | AIO-3566JD4, ROC-RK3566-PC |
| RK3568 | AIO-3568J, ROC-RK3568-PC, ROC-RK3568-PC SE, ITX-3568JQ | AIO-3568J, ROC-RK3568-PC, ROC-RK3568-PC SE, ITX-3568JQ |
| RK3588 | ITX-3588J, AIO-3588Q, AIO-3588L | ITX-3588J, AIO-3588Q, AIO-3588L |
| RK3588S | ROC-RK3588S-PC,AIO-3588SJD4,AIO-3588SG | ROC-RK3588S-PC, AIO-3588SJD4, AIO-3588SG |
| RK3576 | ROC-RK3576-PC, AIO-3576Q, AIO-3576C | ROC-RK3576-PC, AIO-3576Q, AIO-3576C |
| RK3399 | ROC-RK3399-PC-PLUS,AIO-3399C(AI) | ROC-RK3399-PC-PLUS,AIO-3399C(AI) |
4.2 Compile the firmware
RK3566 platform
| System | Board |
|---|---|
| Android11.0 | AIO-3566JD4, ROC-RK3566-PC |
| Ubuntu | AIO-3566JD4, ROC-RK3566-PC |
| Buildroot | AIO-3566JD4, ROC-RK3566-PC |
RK3568 platform
| System | Board |
|---|---|
| Android11.0 | AIO-3568J, ROC-RK3568-PC, ROC-RK3568-PC SE, ITX-3568JQ |
| Ubuntu | AIO-3568J, ROC-RK3568-PC, ROC-RK3568-PC SE, ITX-3568JQ |
| Buildroot | AIO-3568J, ROC-RK3568-PC, ROC-RK3568-PC SE, ITX-3568JQ |
RK3588 系列
| 系统 | 板卡型号 |
|---|---|
| Android14.0 | ITX-3588J, AIO-3588Q, AIO-3588L |
| Ubuntu | ITX-3588J, AIO-3588Q, AIO-3588L |
| Buildroot | ITX-3588J, AIO-3588Q, AIO-3588L |
RK3588S 系列
| 系统 | 板卡型号 |
|---|---|
| Android14.0 | ROC-RK3588S-PC, AIO-3588SJD4, AIO-3588SG |
| Ubuntu | ROC-RK3588S-PC, AIO-3588Q, AIO-3588SG |
| Buildroot | ROC-RK3588S-PC, AIO-3588Q, AIO-3588SG |
RK3576 系列
| System | Board |
|---|---|
| Android14.0 | ROC-RK3576-PC, AIO-3576Q, AIO-3576C |
RK3399 platform
| System | Board |
|---|---|
| Android7.1 | ROC-RK3399-PC-PLUS, ROC-RK3399-PC-Pro, AIO-3399C(AI) |
| Android10.0 | ROC-RK3399-PC-PLUS, ROC-RK3399-PC-Pro, AIO-3399C(AI) |
| Ubuntu | ROC-RK3399-PC-PLUS, ROC-RK3399-PC-Pro, AIO-3399C(AI) |
