Interface definition

Interface definition of the whole machine

ITX-3568Q provides rich interfaces, including:

• 12V power supply interface
• 4 x USB3.0 (otg×1, host×3)
• 4 x USB2.0 (interface 1, seat 3)
• HDMI
• VGA
• MIPI screen interface
• LVDS screen interface
• Ethernet
• MIC interface
• 3.5mm headphone jack
• TF card slot
• SIM card slot
• SATA 3.0 interface
• FAN interface
• Speaker interface
• Power button (seat)
• Reset button
• Recovery button
• Debug serial port
• Industrial serial port (RS485, RS232, TTL)
• Expansion port (ADC, I2C, GPIO)
• MIPI camera interface
• MINI-PCIE 4G interface
• M.2 5G interface
• PCIe 3.0 interface
• M.2 SATA 3.0 interface
• CAN/CANFD

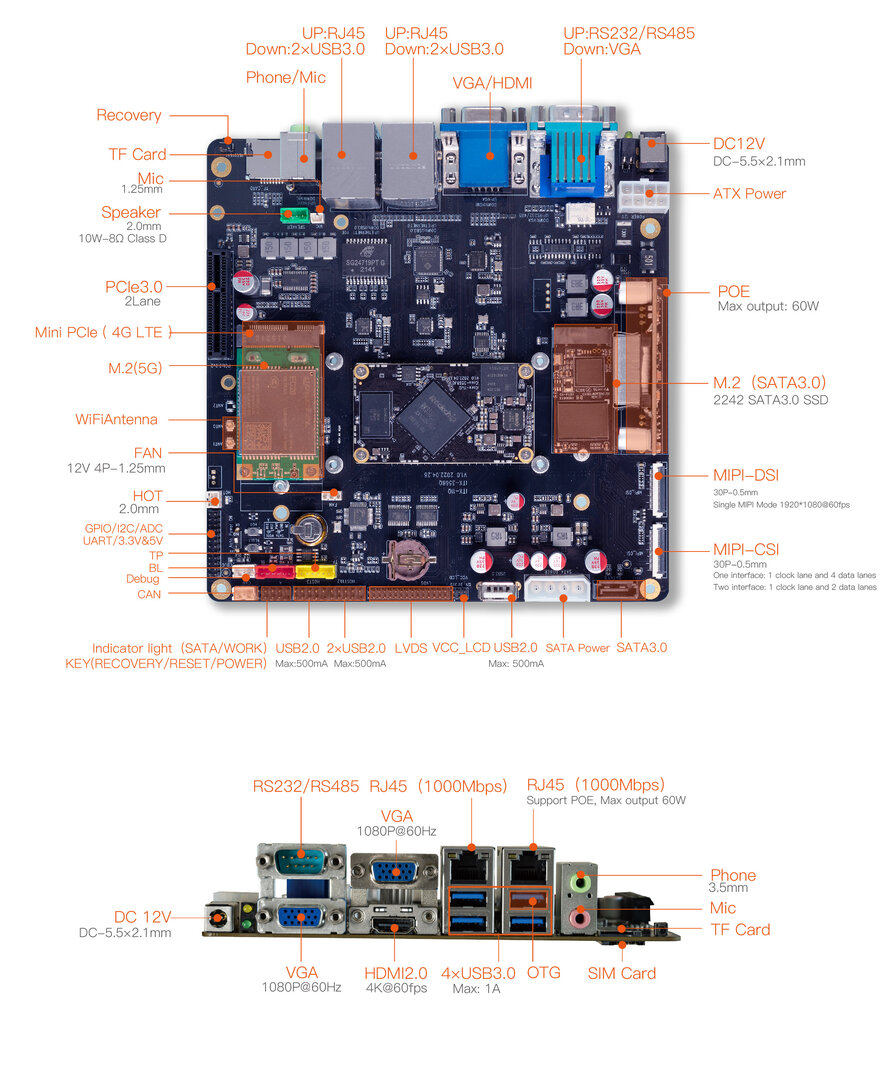

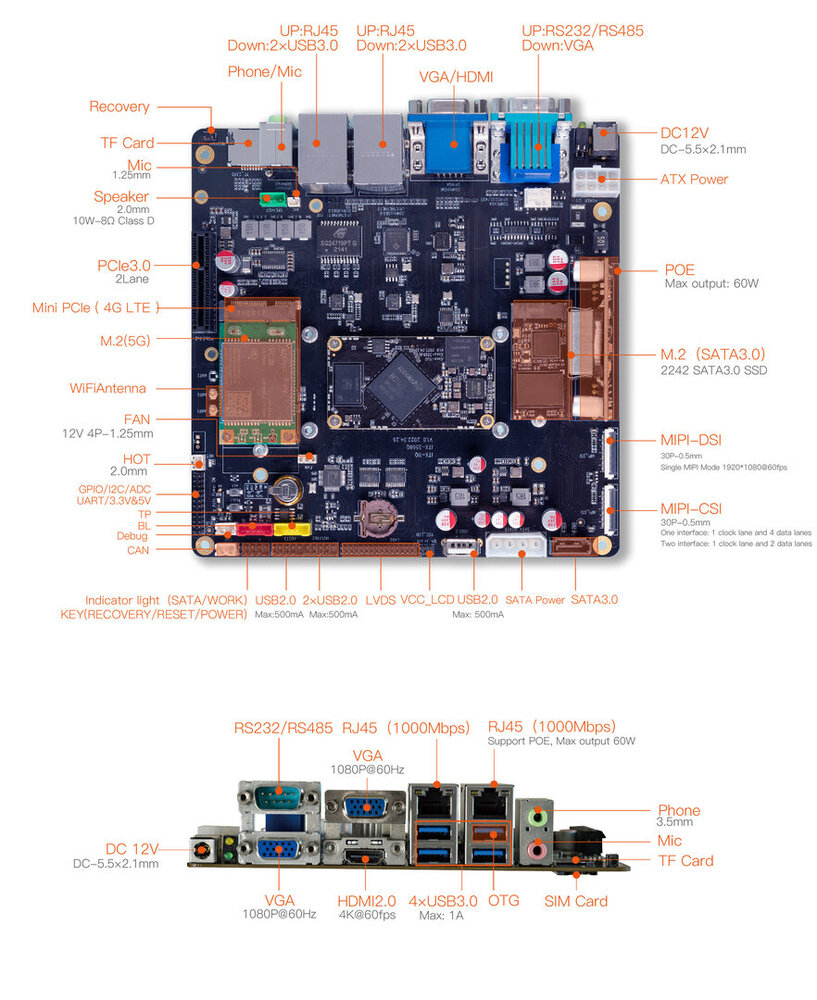

The details are as follows:
