Hardware Interfaces

Board Interface Specification

AIO-3576C V1.0 interfaces include:

• 1 x HDMI2.1 (Up to 4K120Hz)
• 1 x USB3.0 OTG (Type-C)
• 1 x USB3.0
• 2 x USB2.0 (One Of Them On 4P-1.25mm)
• 1 x MIPI-DSI
• 1 x MIPI-D/CPHY-CSI
• 2 x MIPI-DPHY-CSI
• 1 x TF Card
• 1 x M.2 (SATA3.1 / NVME)
• 1 x WIFI
• 1 x Bluetooth
• 1 x FAN
• 1 x RJ45 (up to 1Gbps)
• 1 × 3.5mm Headphone Jack
• 1 × Mic Input (2P-1.25mm)
• 1 × SPEAKER (4P-1.25mm)
• 1 x DEBUG TTL
• 1 x RS485
• 1 x RS232
• 1 x CAN
• 1 x Mini PCIe (4G Module)
• 1 x eDP 40Pin/30Pin (Multiplexing with HDMI, not supported by default)

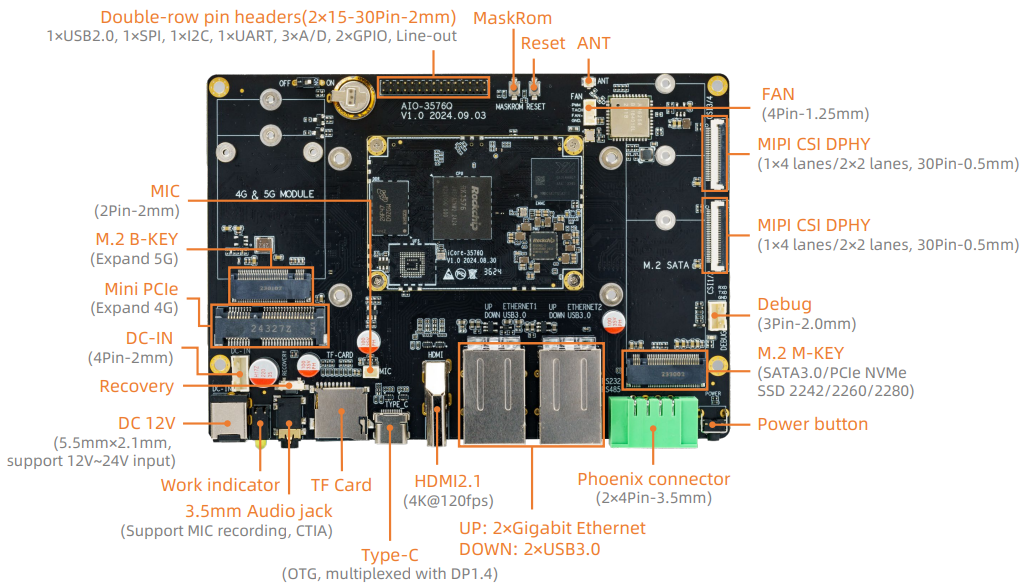

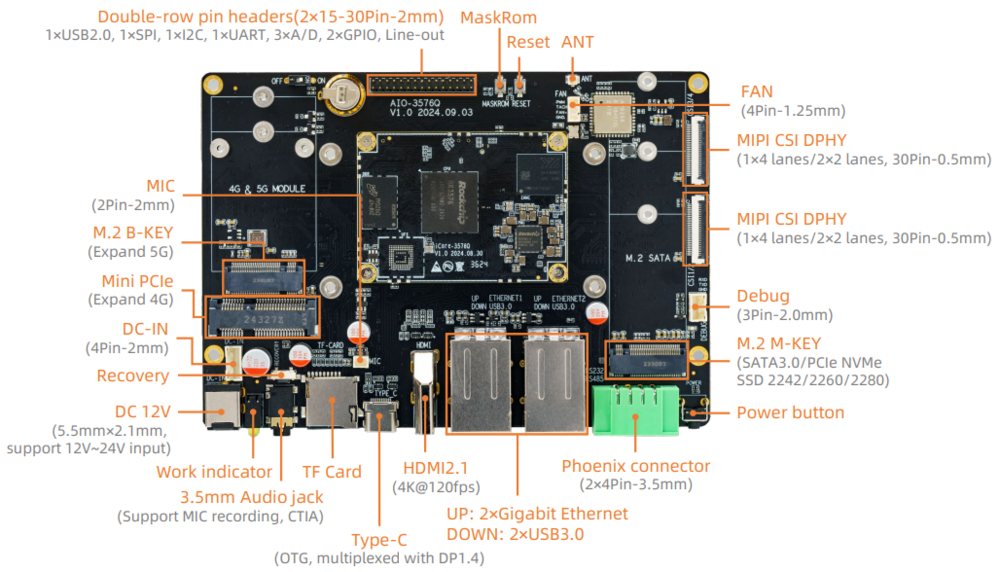

The details are shown below:

Special Notice

MIPI-DSI and LVDS cannot be used at the same time.

eDP and HDMI multiplexing, default HDMI, if you need eDP support, you can contact the official consultation.
