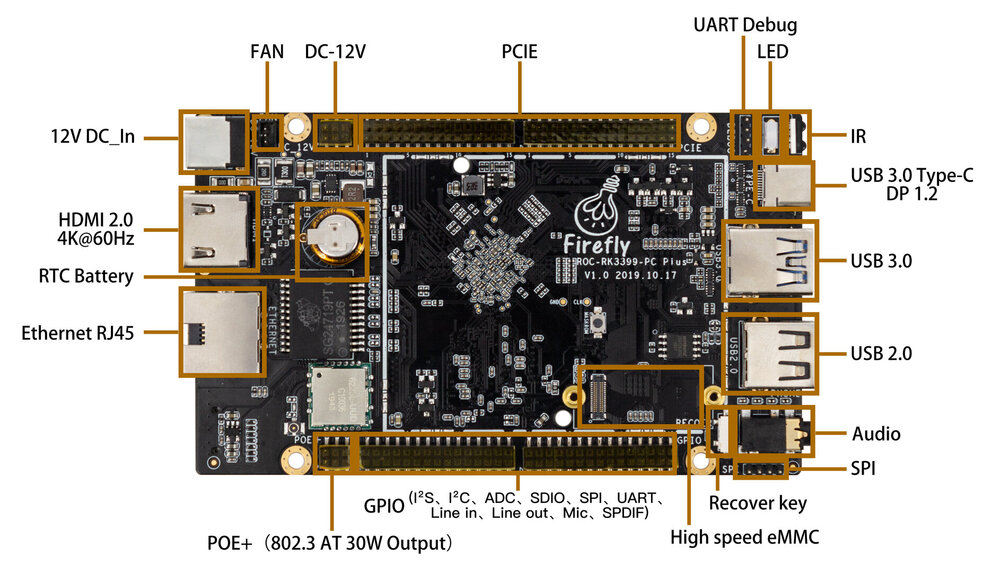

ROC-RK3399-PC-PLUS is a mini PC motherboard, about the size of a small phone.

  • Dual-core Cortex-A72 up to 1.8GHz & Quad-core Cortex-A53 up to 1.5GHz Six Core Processor
  • Mali-T864 GPU,Support OpenGL ES1.1/2.0/3.0, OpenCL1.2, DirectX11.1.
  • LPDDR4 RAM (4GB)
  • 3 x USB 2.0
  • 10/100/1000Mb Eth interface
  • IR Infrared Module
  • HDMI 2.0a with HDCP 2.2
  • DisplayPort 1.2 (4K 60Hz)
  • 3 x MIPI interfaces
    only for DSI, MIPI1 for DSI or CSI, MIPI2 only for CSI
  • eDP 1.3
  • I2S,Support 8 Channels
  • High speed eMMC Expansion Interface
  • MicroSD (TF) Card Slot
  • 1 x Type-C Interfaces
    support DP 1.2、USB3.0
  • RTC : battery model -- CR1220 ; Battery seat -- CR1220,BS-12-A3B0J002
  • 132 Pin Expansion Interfaces
    、SPI、Uart、I2S....

Shipping list (Only for reference )

  • 1 x ROC-RK3399-PC-PLUS
  • 1 x Type-C data cable

Maybe you need to purchase the following accessories:

  • SD card、emmc
  • USB Serial Adapter
  • 12V power adapter
