Interface Definition

Machine interface definition

ROC-RK3566-PC provides a wealth of interfaces, mainly including:

• 1 x usb3.0 (host)
• 1 x usb3.0 (host)
• 1 x hdmi
• 1 x mipi dsi
• 1 x 1G eth interface
• 1 x 2.4/5G wifi
• 1 x 3.5mm Phone Jack
• 1 x Type-C(PD) power interface
• 1 x ir interface
• 1 x tf card slot
• 1 x power key
• 1 x reset key
• 1 x recovery key
• 1 x debug serial
• 1 x Nor flash
• 1 x mipi csi

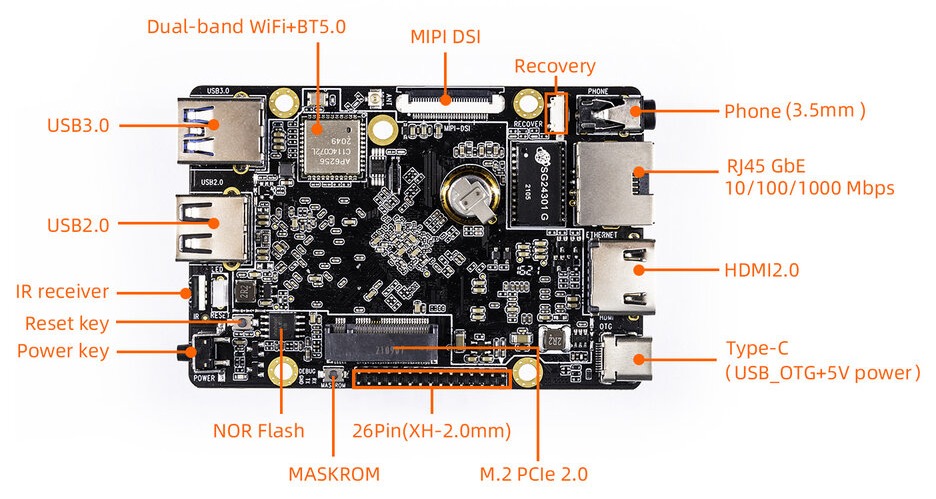

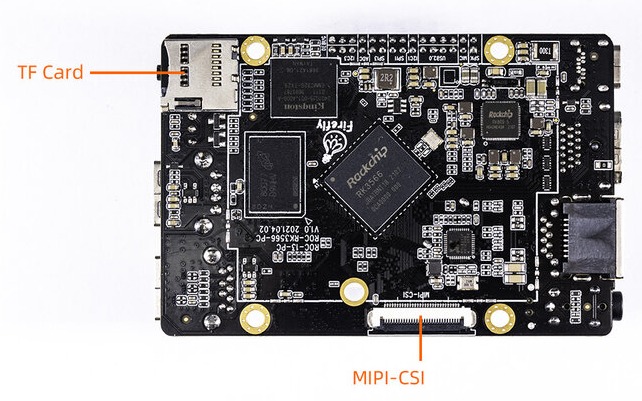

The details are as follows:
