Interface definition

Interface definition of the whole machine

ROC-RK3568-PC provides rich interfaces, including:

• Power interface
• 1 x Type C(host/device)
• 1 x USB3.0（host)
• 2 x USB2.0（host)
• HDMI
• MIPI screen interface
• EDP screen interface
• Ethernet
• WIFI antenna
• bluetooth antenna
• 3.5 mm headphone jack
• 12 v power supply interface
• TF card slot
• SATA 3.0 interface
• Speaker interface
• Power button
• Reset button
• Recovery button
• MaskRom button
• Debugging serial port
• Industrial serial port (RS485,RS232,TTL)
• MIPI camera interface
• M.2 PCIE3.0 interface

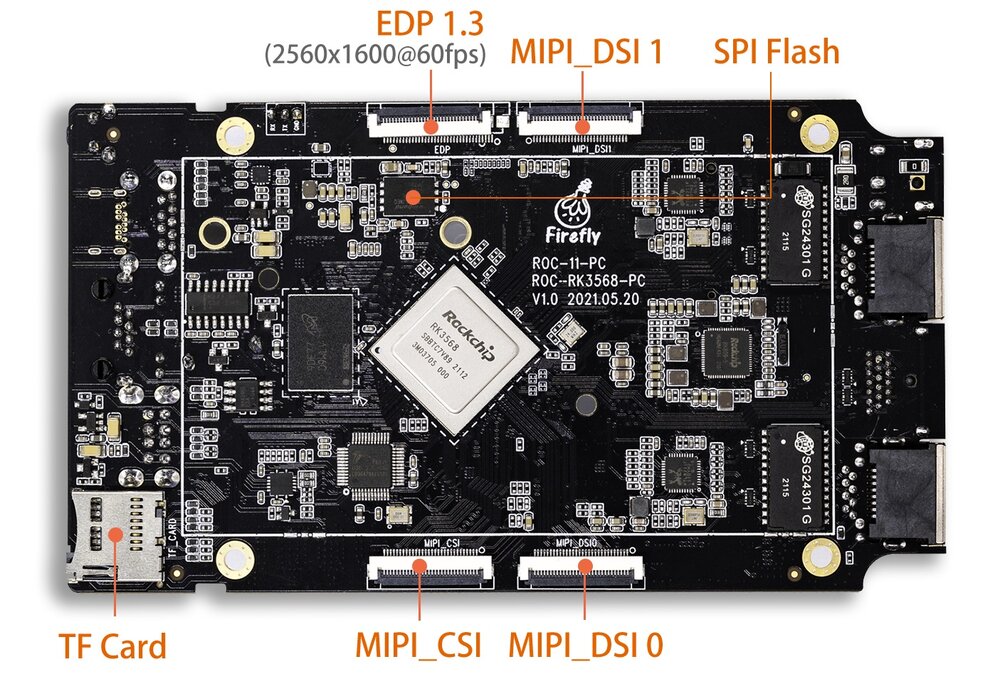

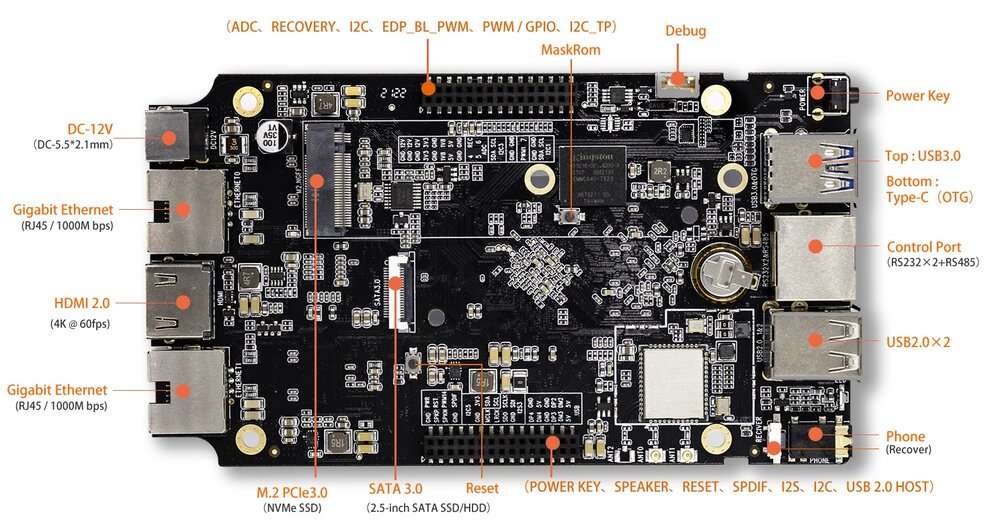

The details are as follows:
