Interface definition
Interface definition of the whole machine
ROC-RK3576-PC V1.1 provides rich interfaces, including:
- 1 x HDMI2.1 (Max output support 4K@120Hz)
- 1 x Display Port1.4 (Max output support 4K@120Hz)
- 1 x USB3.0 OTG(Type-C)
- 2 x MIPI-DSI
- 1 x MIPI-CSI
- 1 x SATA3.0 or PCIe2.0
- 1 x TF Card
- 1 x USB3.0
- 3 x USB2.0 (Two USB2.0 are led by a 20-pin pin row)
- 1 x WIFI
- 1 x Bluetooth
- 1 x FAN
- 2 x RJ45 (Suport 1Gbps)
- 1 × 3.5mm Headphone
- 1 × Mic（2P-1.25mm）

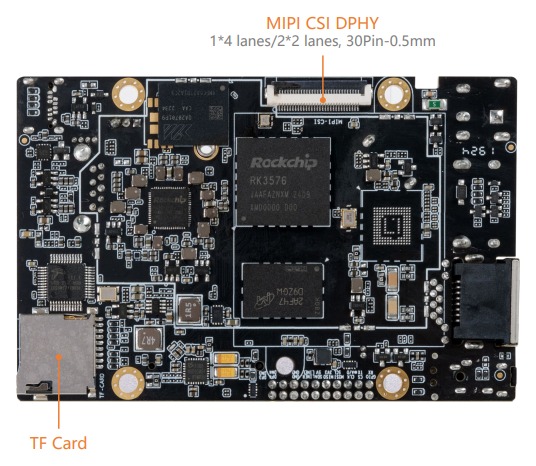

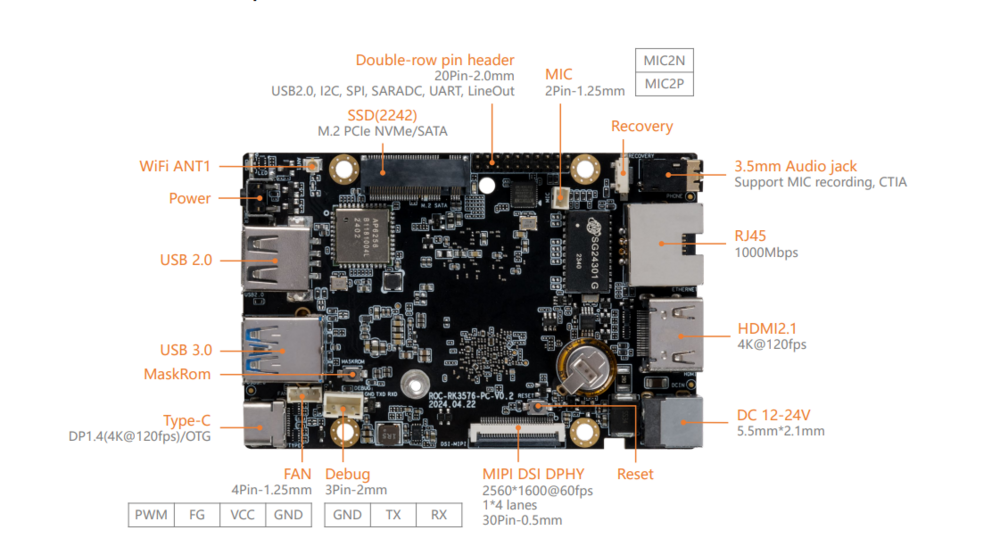

The details are shown below：
