Hardware Interfaces
Board Interface Specification
AIO-3576Q V1.0 interfaces include:
- 1 x HDMI2.1（Up to 4K120Hz）
- 1 x USB3.0 OTG(Type-C)
- 2 x USB3.0
- 3 x USB2.0 (One Of Them On Extension Pins)
- 1 x MIPI-DSI
- 1 x MIPI-D/CPHY-CSI
- 2 x MIPI-DPHY-CSI
- 1 x TF Card
- 1 x M.2(SATA3.1)
- 1 x WIFI
- 1 x Bluetooth
- 1 x FAN
- 2 x RJ45（up to 1Gbps）
- 1 × 3.5mm Headphone Jack
- 1 × Mic Input（2P-1.25mm）
- 1 × Line Out（Extension Pins）
- 1 x RS485
- 1 x RS232
- 1 x CAN
- 1 x Mini PCIe (4G Module)
- 1 x PCIe M.2 (5G Module)

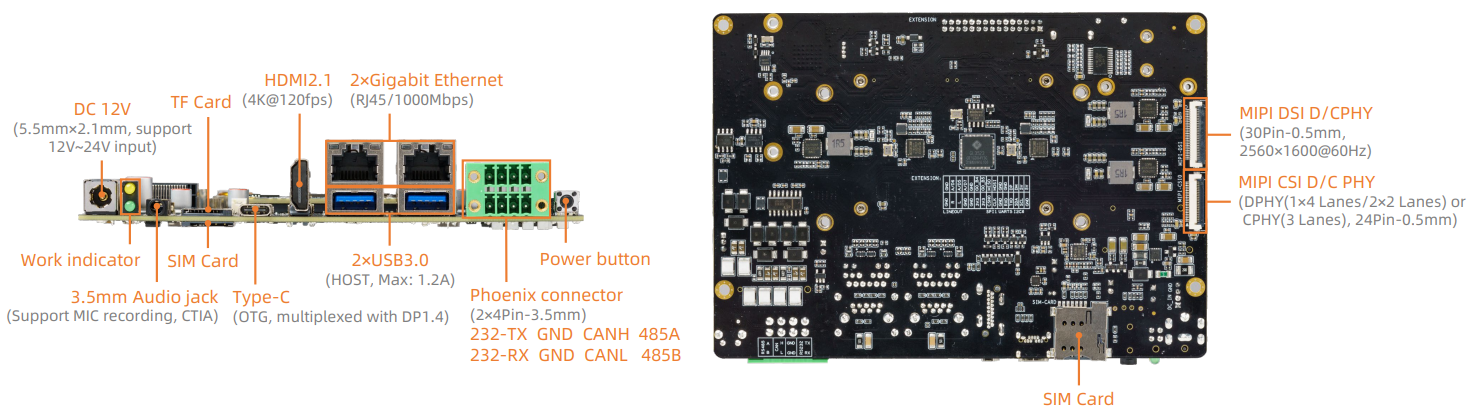

The details are shown below:
Special Notice
Mini PCIe (4G Module) and PCIe M.2 (5G Module) used same USB bus, so they can not be used at same time.
