Interface definition
AIO-3399C interface definition
AIO-3399C provides rich interfaces, including :
- Power interface,
- Type - C (OTG),
- 1 x USB3.0, 4 x USB2.0 (interface 2, seat 2),
- HDMI,
- Ethernet,
- Double an LVDS interface screen, eDP screen interface,
- TP touch interface,
- Screen voltage jump line interface,
- Backlight interface,
- WIFI antenna,
- Bluetooth antenna,
- Power button,
- MIC interface,
- Audio input/output (linein, lineout), 3.5 mm headphone jack,
- Power RTC interfaces,
- 12 v power supply interface,
- IR interface,
- TF card slot, SIM card slot,
- Interface extension buttons,
- I2C,I2S，
- Speaker interface,
- USB2.0 HOST,
- Recovery button,
- EDP screen interface,
- debugging serial port,
- Industrial serial port (RS485,RS232,2TTL),
- RTC power interface,
- MIPI screen interface (dual LVDS multiplex),
- mini-pcie.

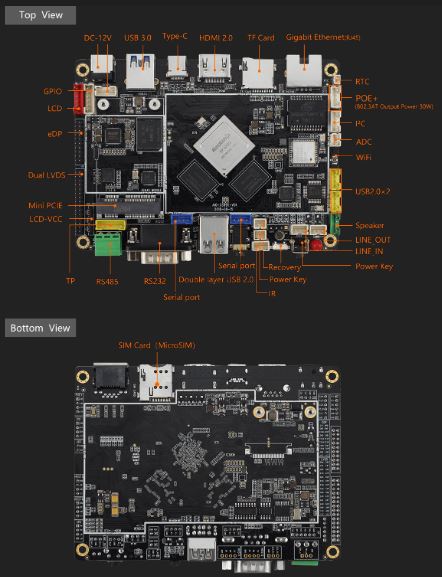

The details are as follows:

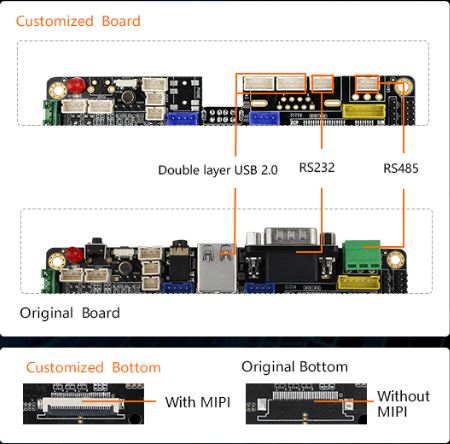

In addition, customers can also customize the boards of relevant functional interfaces as required, as shown in the figure below:

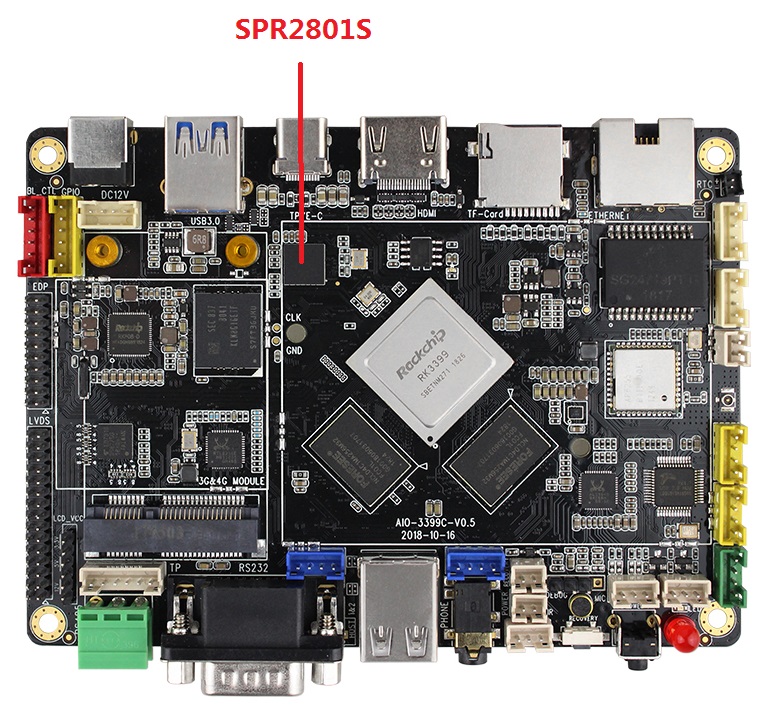

Beside interface above，AIO-3399C(AI) support NPU speeding for it drive SPR2801S .Howerver, AIO-3399C(AI) do not support all Type-C function (ADB, OTG, DP display)，but it can be used to download firmware with Type-C.
Note：The hardware version of AIO-3399C(AI) without SPR2801S dosen't support function of npu speeding up. To use the function of NPU please choose and buy the hardware version of AIO-3399C(AI) with the chip of SPR2801S.
