Interface definition

Interface definition of the whole machine

AIO-3588L V1.0 provides rich interfaces, including：

• 1 x HDMI2.1 (Max output support 8K@60Hz)
• 1 x HDMI2.0
• 1 x HDMIIN2.0 (Max input support 4K@60Hz)
• 1 x Display Port1.4 (Max output support 8K@30Hz)
• 1 x USB3.0 OTG(Type-C)
• 2 x MIPI-DSI
• 2 x MIPI-CSI
• 1 x M.2 SATA3.0 或 M.2 PCIe2.0
• 1 x PCIe3.0x4
• 1 x TF Card
• 1 x 4G LTE
• 1 x SIM 卡槽
• 2 x USB3.0
• 2 x USB2.0 (Lead out from 44Pin)
• 1 x PCIe2.0 (M.2 E-KEY for WiFi6/BT5.0)
• 1 x FAN
• 1 x RJ45 (Suport 1Gbps)
• 1 × 3.5mm headphone jack

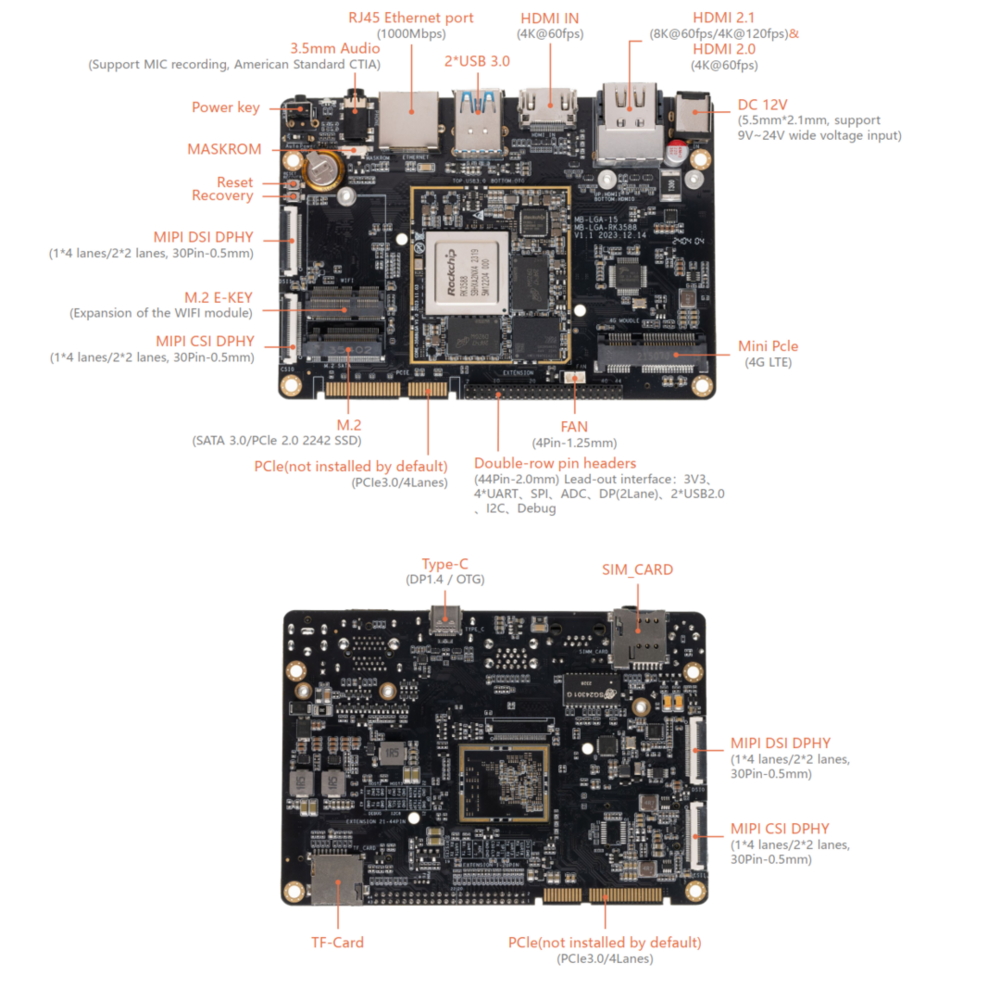

The details are shown below：
