Screen module
DM-M10R800 V2 MIPI module
Product parameters
- model: M101014_BE45_A1
- size: 10.1 inch
- resolution: 800x1280
- display interface: MIPI
- panel material: IPS panel
- visual Angle: 160°
- touch screen: multi-point capacitive touch
Refer to the firmware
The official firmware name supporting the 10.1 screen has the word MIPI. Below is the link to the firmware: Firmware link
If you need to use the dual screen display function, please refer to the FAQ first
Compile command
./FFTools/make.sh -d rk3566-roc-pc-mipi101_M101014_BE45_A1 -j8 -l rk3566_roc_pc_mipi-userdebug
./FFTools/mkupdate/mkupdate.sh -l rk3566_roc_pc_mipi-userdebugdiff --git a/kernel/arch/arm64/boot/dts/rockchip/rk3566-roc-pc-mipi101_M101014_BE45_A1.dts b/kernel/arch/arm64/boot/dts/rockchip/rk3566-roc-pc-mipi101_M101014_BE45_A1.dts
index ebbb5d1123f..71e82f8d9c0 100644
--- a/kernel/arch/arm64/boot/dts/rockchip/rk3566-roc-pc-mipi101_M101014_BE45_A1.dts
+++ b/kernel/arch/arm64/boot/dts/rockchip/rk3566-roc-pc-mipi101_M101014_BE45_A1.dts
@@ -7,6 +7,13 @@
/dts-v1/;
#include "rk3566-roc-pc.dtsi"
+/*
+ * Select one of the two
+ * using single camera xc7160 ----> rk3566-roc-pc-cam-8ms1m.dtsi
+ * using dual camera gc2053/gc2093 ----> rk3566-roc-pc-cam-2ms2m.dtsi
+ */
+#include "rk3566-roc-pc-cam-8ms1m.dtsi"
+//#include "rk3566-roc-pc-cam-2ms2m.dtsi"
/ {
model = "ROC-RK3566-PC MIPI101 M101014-BE45-A1(Android)";Reference data
Screen module datasheet and adapter board schematic
Real figure

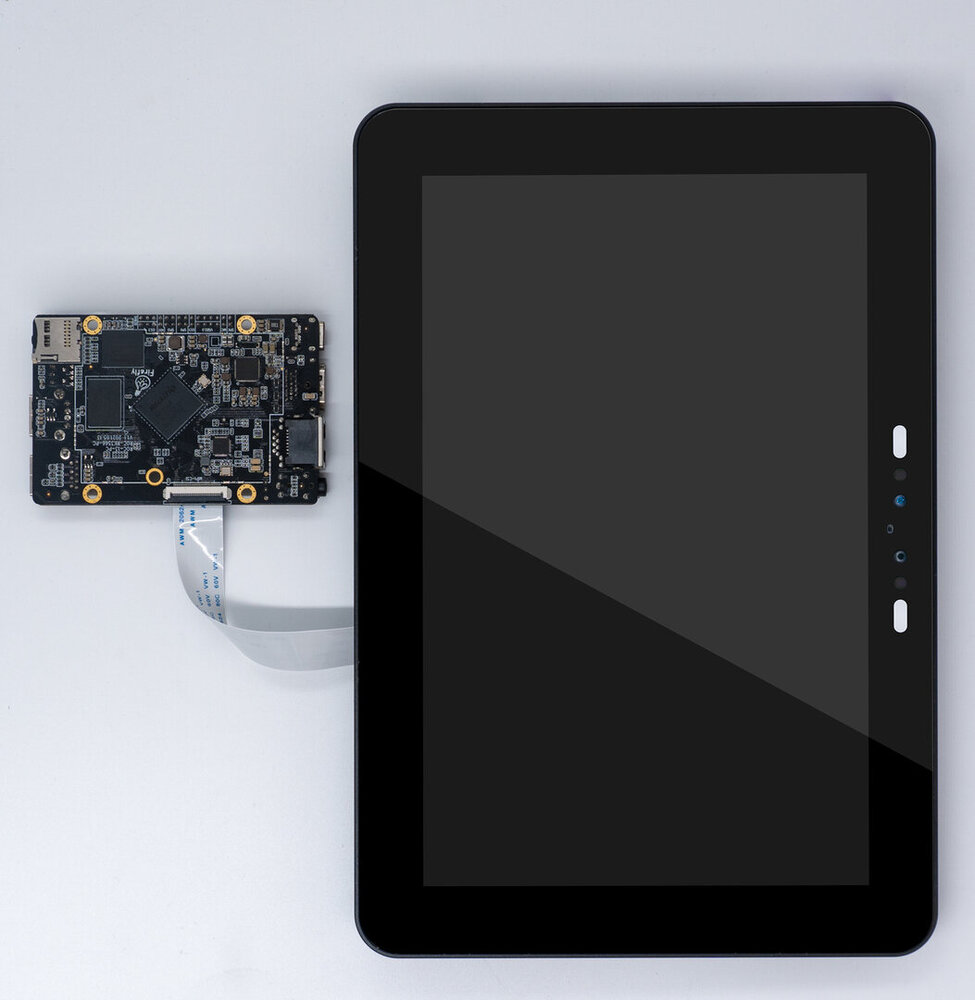

Front

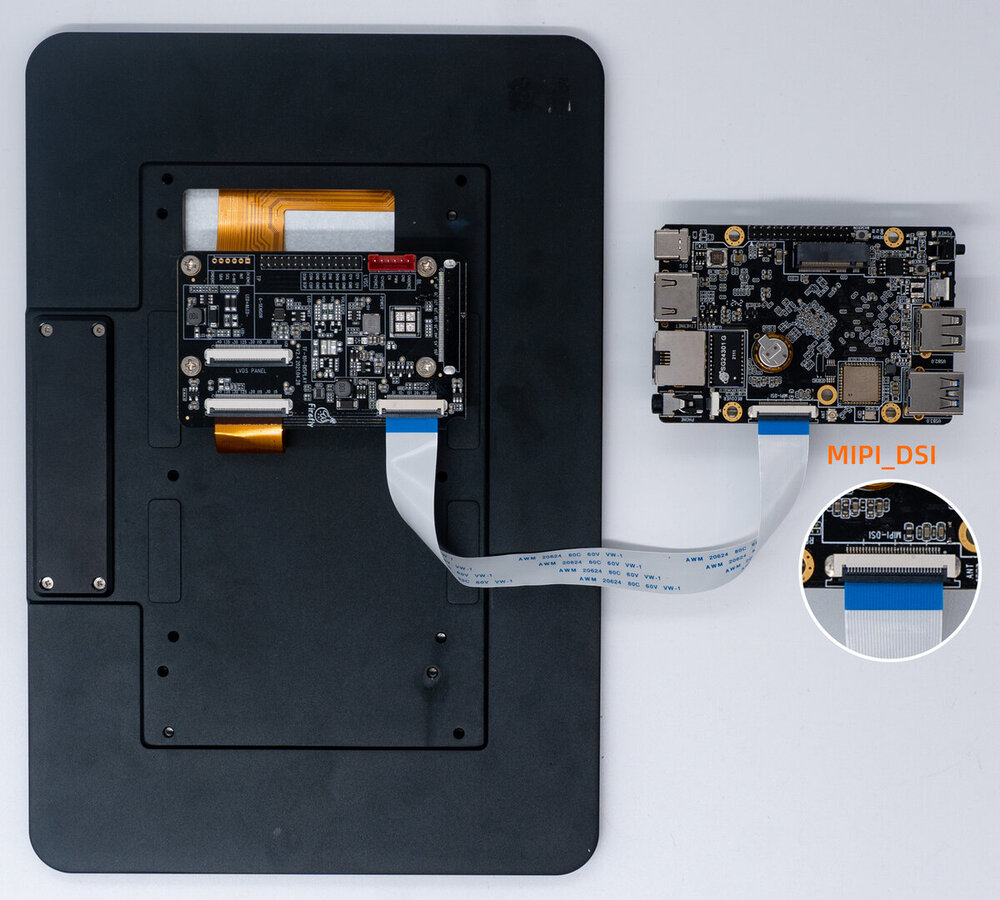

Back
