Screen module

8 "MIPI LCD module

LCD driver section for details

Product parameters

• model: CZNB080860T
• size: 8"
• resolution: 800x1280
• display interface: MIPI
• visual Angle: 160°
• touch screen: multi-point capacitive touch

Compile command

Use the following command when compiling the 10.1-inch screen firmware supported by the official website SDK:

• Android 7.1 (industry)

  ./FFTools/make.sh -j8 -d rk3399-roc-pc-plus-mipi8 -l rk3399_roc_pc_plus_mipi-userdebug
  ./FFTools/mkupdate/mkupdate.sh -l rk3399_roc_pc_plus_mipi-userdebug

Real figure

10.1 "MIPI LCD module

Please refer to LCD driver section for details

Product parameters

• model: CZZC101863T05B
• size: 10.1"
• resolution: 800x1280
• display interface: MIPI
• panel material: IPS panel
• visual Angle: 160°
• touch screen: multi-point capacitive touch

Compile command

• Android 7.1 (industry)

 ./FFTools/make.sh -j8 -d rk3399-roc-pc-plus-mipi101_id_detect -l rk3399_roc_pc_plus_mipi101-userdebug
 ./FFTools/mkupdate/mkupdate.sh -l rk3399_roc_pc_plus_mipi101-userdebug

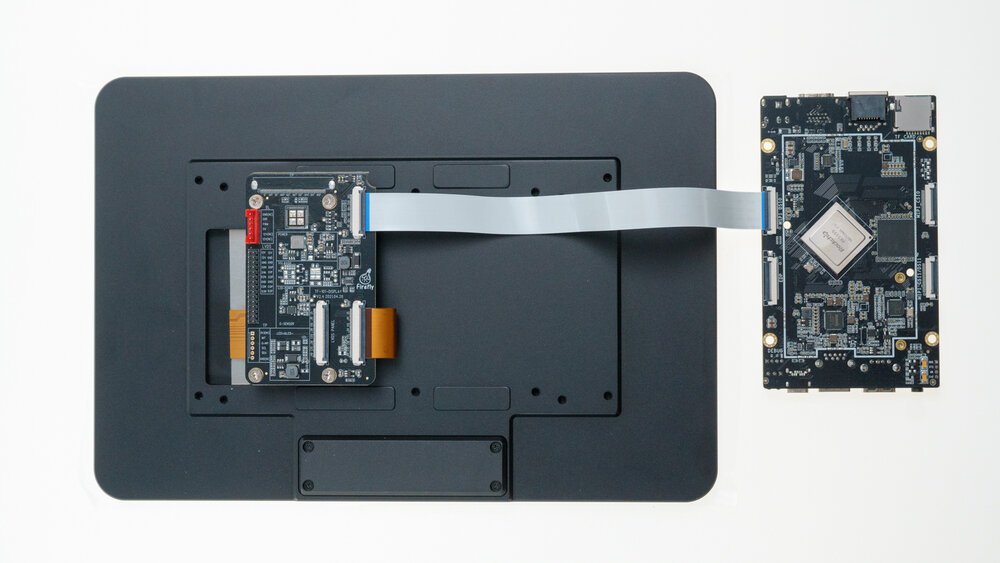

Real figure

Firmware Download

• Google Driver

DM-M10R800 V2 MIPI module

Product parameters

• model: M101014_BE45_A1
• size: 10.1 inch
• resolution: 800x1280
• display interface: MIPI
• visual Angle: 160°
• touch screen: multi-point capacitive touch

Refer to the firmware

• Note: The official firmware name supporting the 10.1 MIPI screen has the word "MIPI". Below is the link to the firmware: Firmware link

Compile command

./FFTools/make.sh -j8 -d rk3399-roc-pc-plus-mipi101-JDM101014_BC45_A1 -l rk3399_roc_pc_plus_mipi101-userdebug
./FFTools/mkupdate/mkupdate.sh -l rk3399_roc_pc_plus_mipi101-userdebug

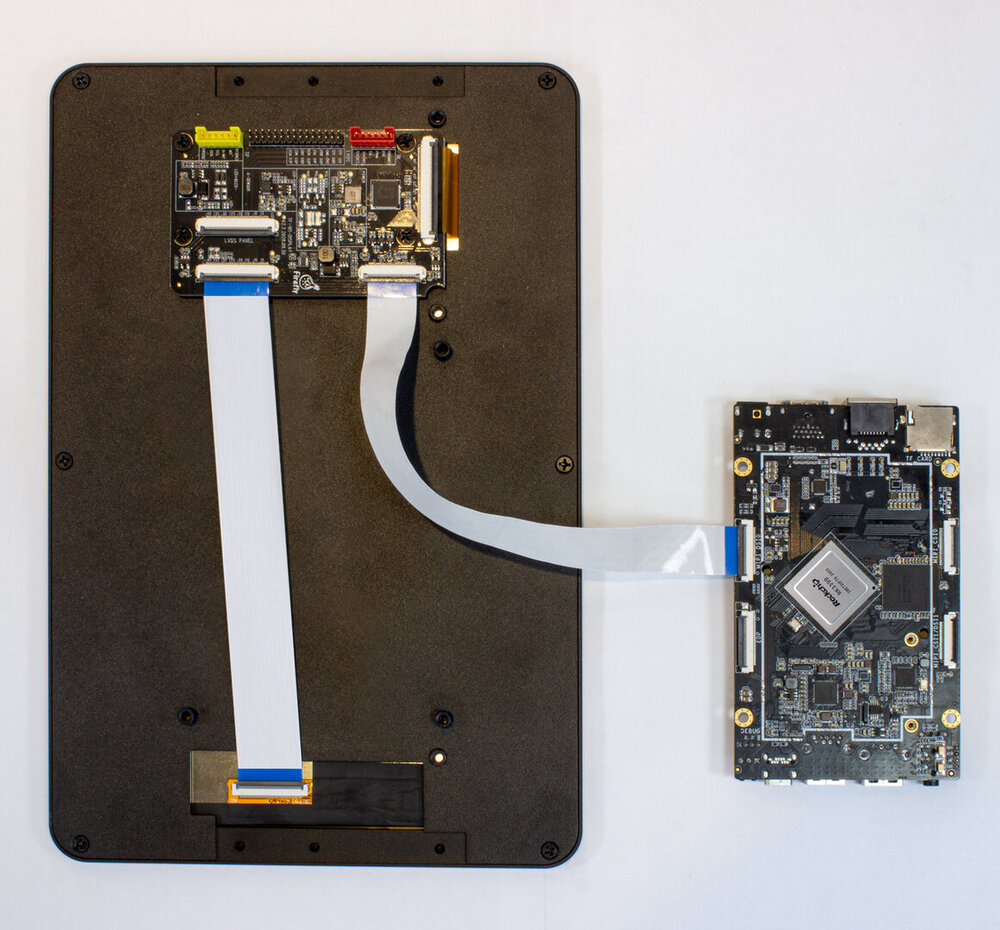

Real figure

Reference data

[schematic of screen module Datasheet& adapter board]

10.1"EDP LCD module

LCD driver section for details

Product parameters

• model: LP079QX1
• size: 10.1"
• resolution: 2560x1600
• display interface: EDP
• panel material: IPS panel
• visual Angle: 160°
• touch screen: multi-point capacitive touch

Compile command

Use the following command when compiling the 10.1-inch screen firmware supported by the official website SDK:

• Android 7.1 (industry)

 ./FFTools/make.sh -j8 -d rk3399-roc-pc-plus-edp -l rk3399_roc_pc_plus_edp-userdebug
 ./FFTools/mkupdate/mkupdate.sh -l rk3399_roc_pc_plus_edp-userdebug

Real figure
