Camera Module

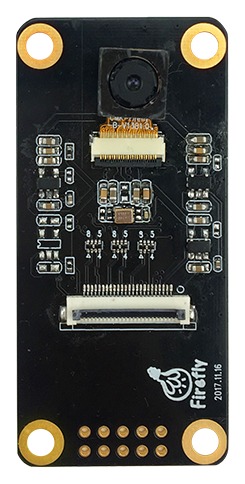

OV13850 Camera Moudle(Out of production)

Product Parameter

Brand：Omnivision
Model：CMK-OV13850
Interface：MIPI
Pixels：1320W

Reference firmware

CMK-OV13850 camera module is supported by the default firmware of Android 7.1.
The public firmware of Android 10.0 must be manually modified DTS.

The modified method of 10.0

--- a/kernel/arch/arm64/boot/dts/rockchip/rk3399-roc-pc-plus.dtsi
+++ b/kernel/arch/arm64/boot/dts/rockchip/rk3399-roc-pc-plus.dtsi
 &i2c1{

-    XC6130b@23{
+    ov13850b@10{
     status = "okay";
     };
-    XC7022b@1b{
+    ov13850f@10{
     status = "okay";
     };

-    /delete-node/ ov13850b@10;
-    /delete-node/ ov13850f@10;
+    /delete-node/ XC6130b@23;
+    /delete-node/ XC7022b@1b;

 };

Modify according to the patch, recompile the kernel, then burn boot.img and reboot.

Datasheet

DataSheet and schematic of OV13850 Camera Module.


Connection Method

Renderings

CAM-8MS1M Monocular camera

Product Parameter

Brand：SV
ISP：XC7160
Sensor: SC8238
Interface: MIPI
Pixels: 800W(Currently only supports up to 1080P, 4K is still being adapted)

Reference firmware

Public Fimware support CAM-8MS1M camera module by default. If it doesn't work, please update the latest firmware. Android7.1 Download link

Physical map

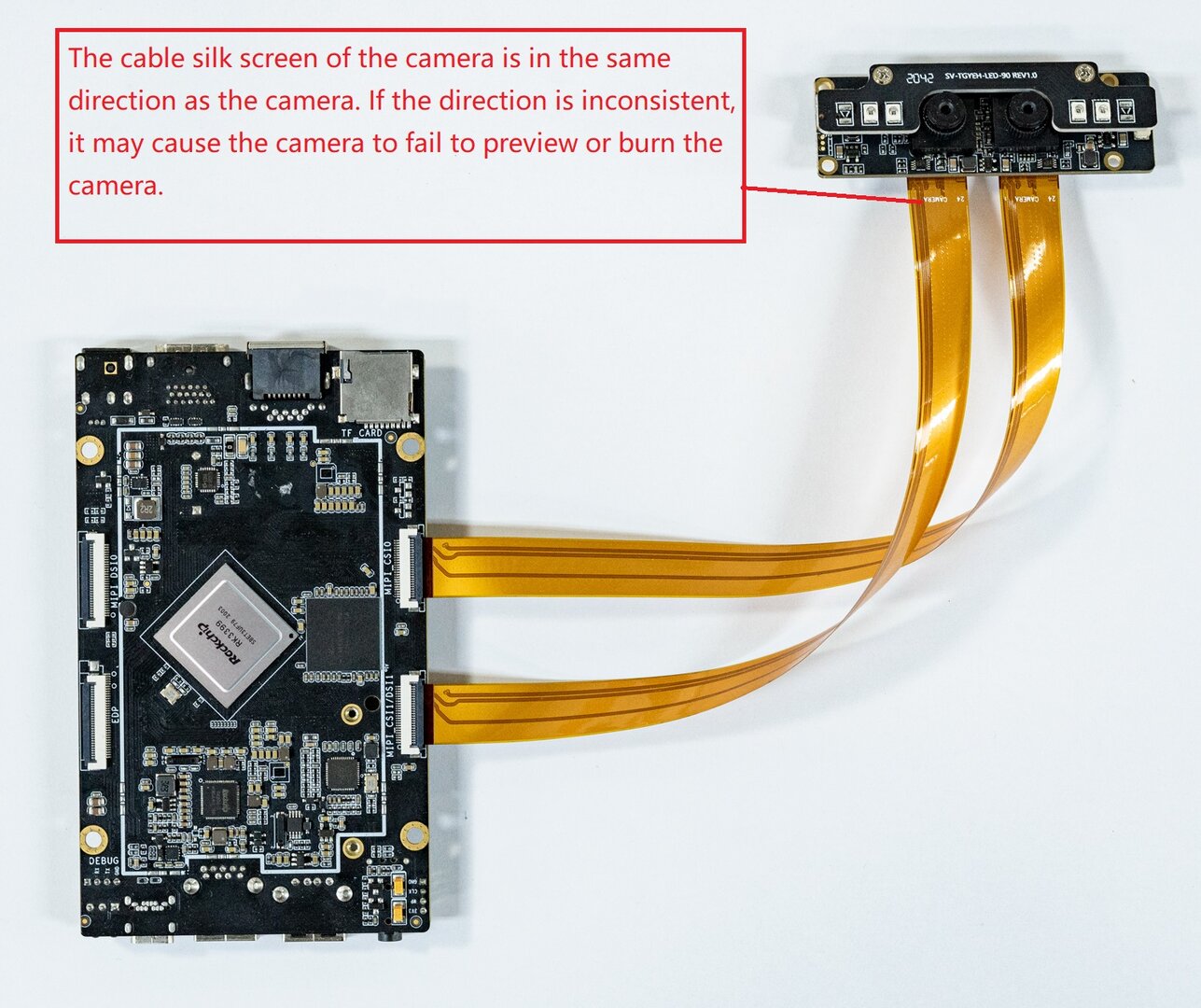

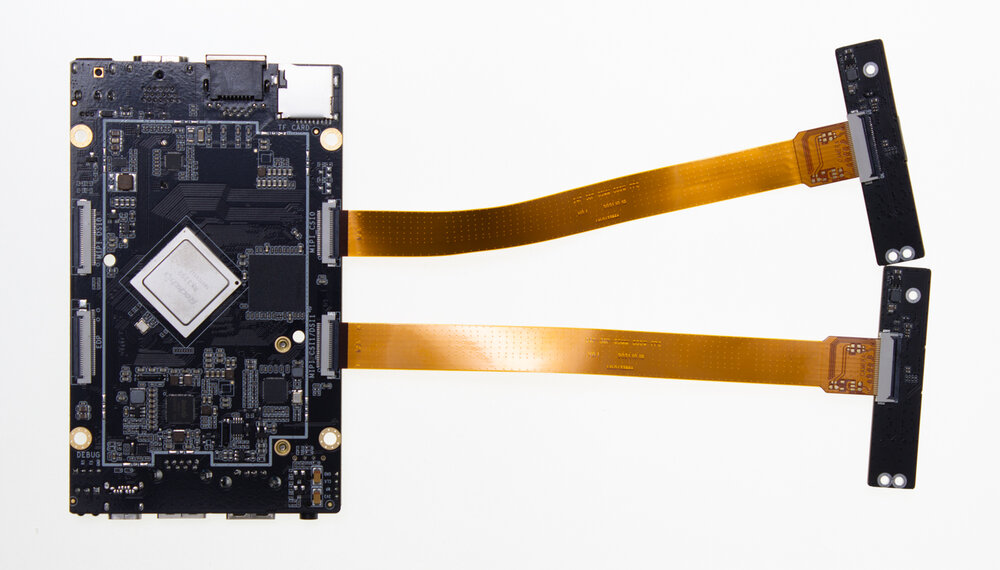

Connection method

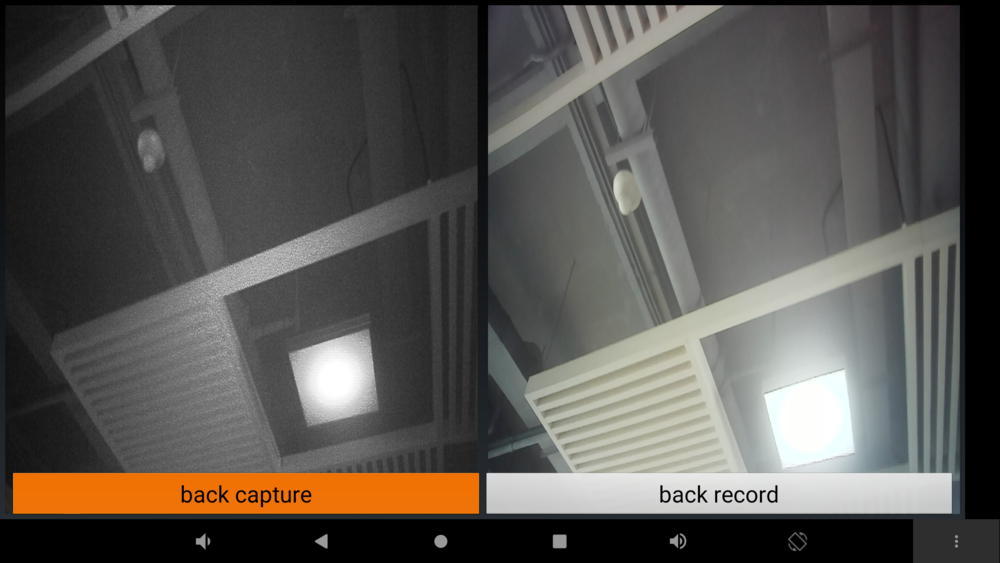

Real pictures

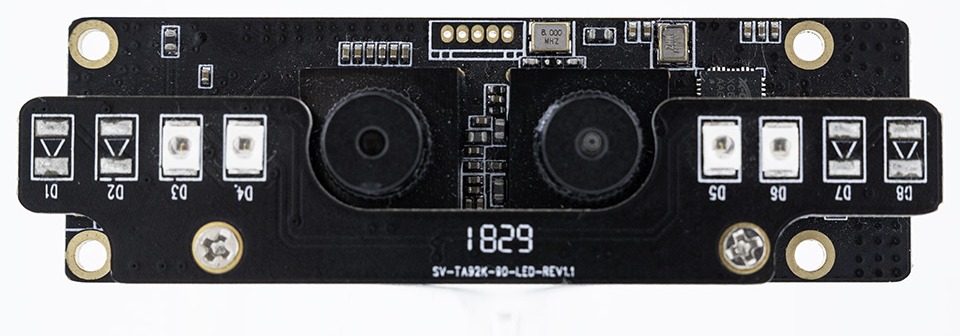

SV-TAYSH-TQ Camera module

Product parameters

Model：XC7022(RGB)/XC6130(IR)
Interface ：MIPI
Pixel ：200W

Patch

「 Android 7.1 」device/rockchip/rk3399/rk3399_roc_pc_plus.mk

 BOARD_NFC_SUPPORT := false
 BOARD_HAS_GPS := false
+BOARD_XC7022_XC6130_SUPPORT := true

 #for 3G/4G modem dongle support
 BOARD_HAVE_DONGLE := false

Modify the above patch and complie Android, then reboot after upgrading system.img.

[Android 10] kernel/arch/arm64/boot/dts/rockchip/rk3399-roc-pc-plus.dtsi

    xc7160b@1b{
+    status = "disabled";
    };
    xc7160f@1b{
+    status = "disabled";
    };

    XC6130b@23{
+    status = "okay";
    };
    XC7022b@1b{
+    status = "okay";
    };

Modify the above patch and complie kernel, then reboot after upgrading boot.img.
