Screen module

DM-M10R800 V2 MIPI module

Product parameters

model: M101014_BE45_A1
size: 10.1 inch
resolution: 800x1280
display interface: MIPI
visual Angle: 160°
touch screen: multi-point capacitive touch

Refer to the firmware

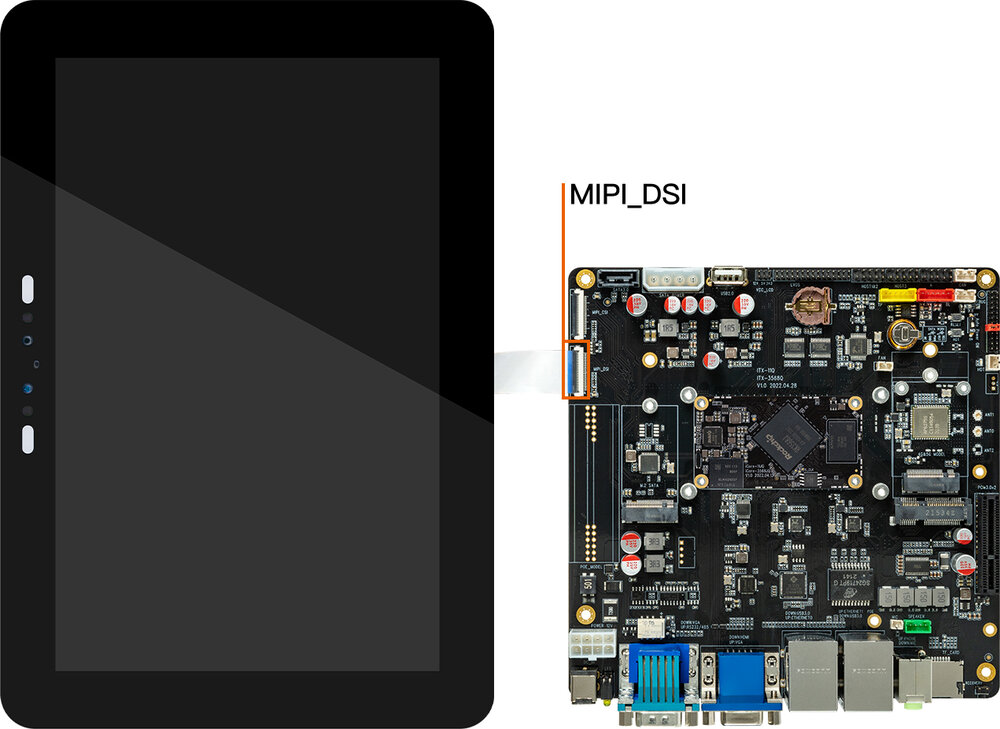

The official MIPI firmware default support MIPI_DSI1 + HDMI display, MIPI screen connected to ITX-3568Q MIPI_DSI1 interface. Below is the link to the firmware: Firmware link

NOTE: When using HDMI display, there may be black edges on both sides of HDMI. The reason is HDMI as a secondary screen, will be scaled according to the aspect ratio of the main screen MIPI. If the aspect ratio of the two is inconsistent, it will lead to black edges.

Compile command

Using official SDK to compile firmware that support 10.1 inches screen firmware need the following command, the default compiled firmware is MIPI_DSI0+HDMI display:

Linux just select mk file

./build.sh itx-3568q-mipi-ubuntu.mk
./build.sh

Android

./FFTools/make.sh -d rk3568-firefly-itx-3568q-mipi101_M101014_BE45_A1 -j8 -l rk3568_firefly_itx_3568q-userdebug
./FFTools/mkupdate/mkupdate.sh -l rk3568_firefly_itx_3568q-userdebug

Note：If need to use CAM-8MS1M camera，first to add patch。

diff --git a/kernel/arch/arm64/boot/dts/rockchip/rk3568-firefly-itx-3568q.dts b/kernel/arch/arm64/boot/dts/rockchip/rk3568-firefly-itx-3568q.dts
index d784287..fbe7b6b 100755
--- a/kernel/arch/arm64/boot/dts/rockchip/rk3568-firefly-itx-3568q.dts
+++ b/kernel/arch/arm64/boot/dts/rockchip/rk3568-firefly-itx-3568q.dts
  @@ -21,8 +21,8 @@
  * using dual camera gc2053/gc2093   ----> rk3568-firefly-itx-3568q-cam-2ms2m.dtsi
   * using hdmi-in module rk628d   ----> rk3568-firefly-itx-3568q-tf-hdmi-mipi-rk628.dtsi
   */
-//#include "rk3568-firefly-itx-3568q-cam-8ms1m.dtsi"
-#include "rk3568-firefly-itx-3568q-cam-2ms2m.dtsi"
+#include "rk3568-firefly-itx-3568q-cam-8ms1m.dtsi"
+//#include "rk3568-firefly-itx-3568q-cam-2ms2m.dtsi"
 //#include "rk3568-firefly-itx-3568q-tf-hdmi-mipi-rk628.dtsi"

Reference data

[schematic of screen module Datasheet& adapter board]
