Screen module

7.85-Inches EDP display module

Product parameter

• Model: LP079QX1
• Size: 7.85-inches
• Resolution: 2048x1563
• Interface: EDP
• Panel Type: IPS
• Viewing Angle: 160°
• Touch Screen: Capacitive multi-touch

Firmware follow

The name of official firmware to support the EDP7.85 Display Module with the words EDP785, the firmware link as followː Firmware link.

Compilation command

Using official SDK to compile firmware that support 7.85 inch screen firmware need the following command：

• Android 7.1 (Box)

 ./FFTools/make.sh -j8 -d rk3399-firefly-edp -l rk3399_firefly_edp_box-userdebug
 ./FFTools/mkupdate/mkupdate.sh -l rk3399_firefly_edp_box-userdebug

Datasheet

Datasheet and schematic of 7.85 inch edp lcd module

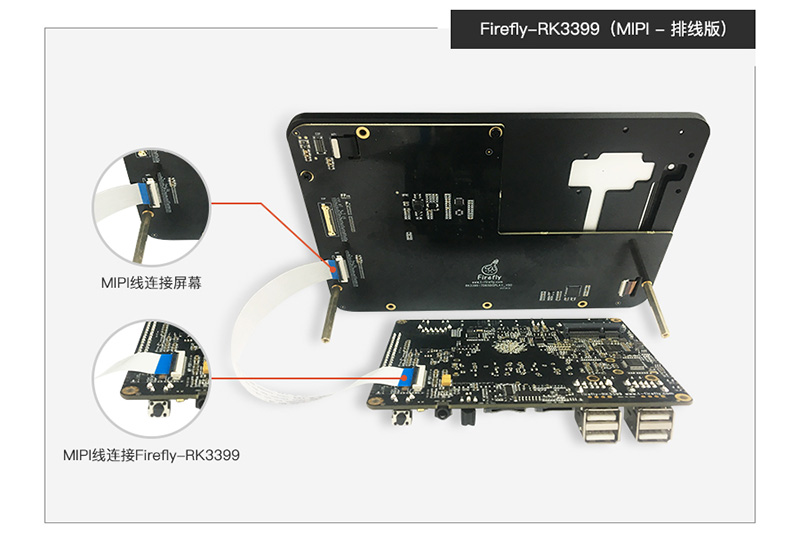

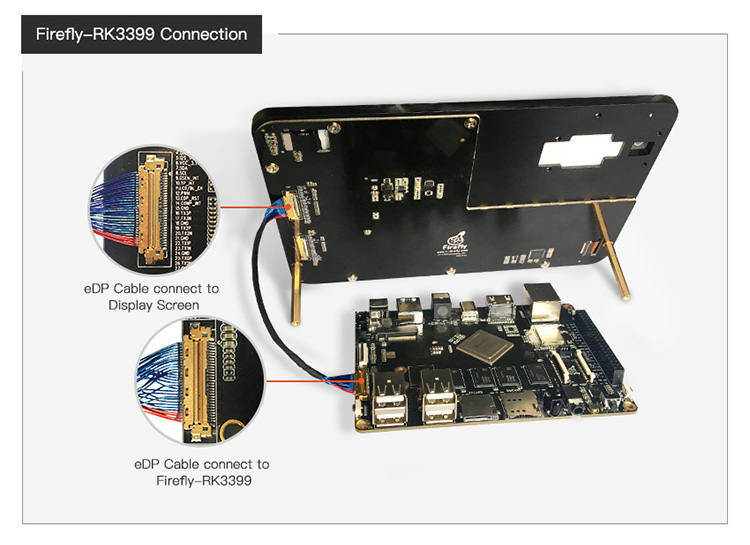

Connection method

7.85-Inches MIPI display module

Product parameter

• Model: B080XAN01
• Size: 7.85-inches
• Resolution: 1024x768
• Interface: MIPI
• Panel Type: IPS
• Viewing Angle: 160°
• Touch Screen: Capacitive multi-touch

Firmware follow

The name of official firmware to support the MIPI7.85 Display Module with the words MIPI785, the firmware link as followː Firmware link.

Compilation command

Using official SDK to compile firmware that support 7.85 inch screen firmware need the following command：

• Android 7.1 (Box)

 ./FFTools/make.sh -j8 -d rk3399-firefly-mipi -l rk3399_firefly_mipi_box-userdebug
 ./FFTools/mkupdate/mkupdate.sh -l rk3399_firefly_mipi_box-userdebug
