Heat sink

Aluminum heat sink

Product parameters

• Adaptation: Firefly-RK3399
• size: 43mm (L)* 39.5mm(W)*11mm(H)

Real figure

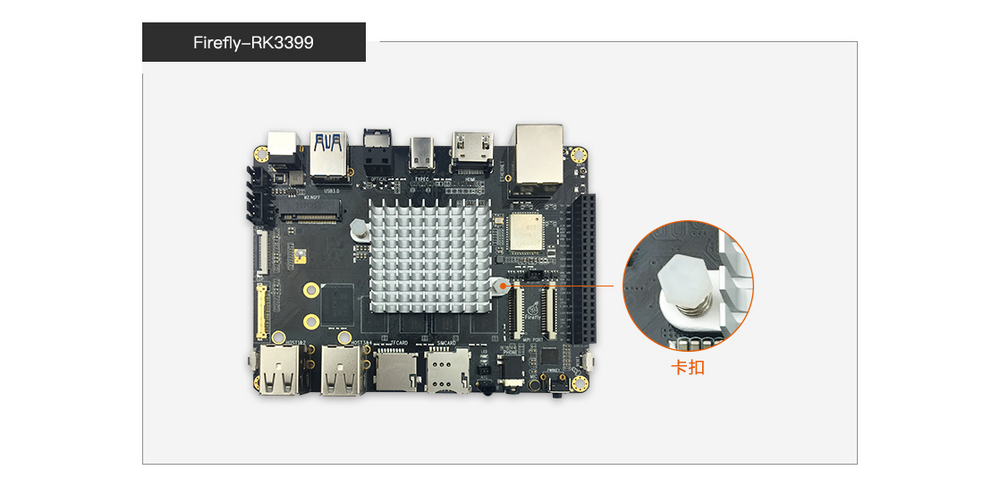

Installation

Integral Cooling Fan

Product Parameter

• Model: TFAN_55S_B
• Adapter: Firefly-RK3399
• Size: 5.5±0.3mm * 55.5±0.3mm
• Voltage: 12V (10.8-13.2V)
• Max air flow: 5.8CFM

Physical map

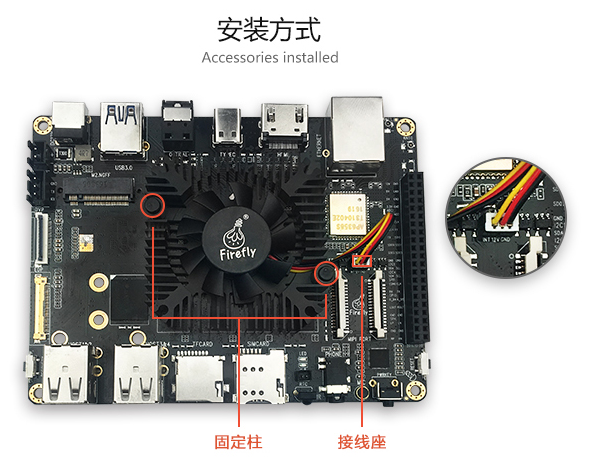

Installation method
