Screen module

10.1" LVDS module

Product parameters

• model: HSX101H40C-L28A
• size: 10.1 inch
• resolution: 800x1280
• display interface: LVDS
• visual Angle: 170°
• touch screen: multi-point capacitive touch

Refer to the firmware

• Note: The official firmware name supporting the 10.1 screen has the word "LVDS". Below is the link to the firmware: Firmware link

Compile command

./FFTools/make.sh -j8 -d rk3399pro-firefly-aioc-lvds-HSX101H40C -l rk3399pro_firefly_aioc_lvds-userdebug
./FFTools/mkupdate/mkupdate.sh

Reference data

[schematic of screen module Datasheet& adapter board]

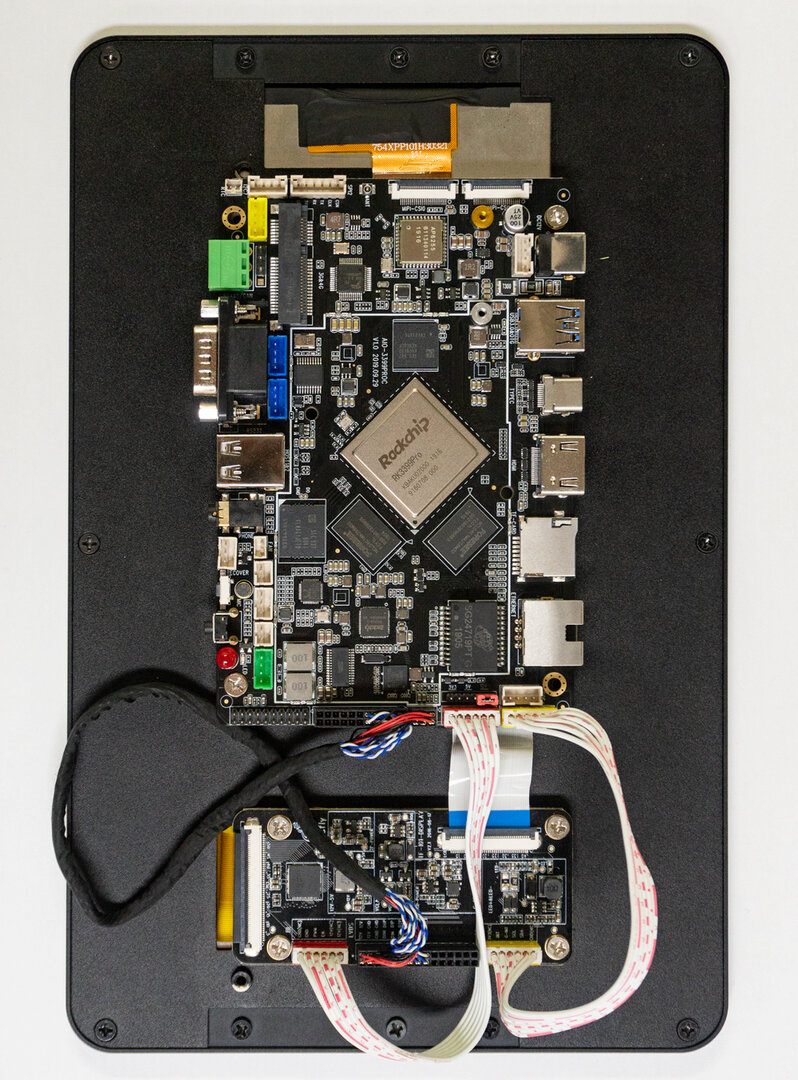

Real figure

• Note: The voltage jumper in the figure below should use 12V

DM-M10R800 V2 MIPI module

Product parameters

• model: M101014_BE45_A1
• size: 10.1 inch
• resolution: 800x1280
• display interface: MIPI
• visual Angle: 160°
• touch screen: multi-point capacitive touch

Refer to the firmware

• Note: The official firmware name supporting the 10.1 MIPI screen has the word "MIPI". Below is the link to the firmware: Firmware link

Compile command

./FFTools/make.sh -j8 -d rk3399pro-firefly-aioc-mipi_M101014_BE45_A1 -l rk3399pro_firefly_aioc_mipi-userdebug
./FFTools/mkupdate/mkupdate.sh -l rk3399pro_firefly_aioc_mipi-userdebug

Reference data

[schematic of screen module Datasheet& adapter board]

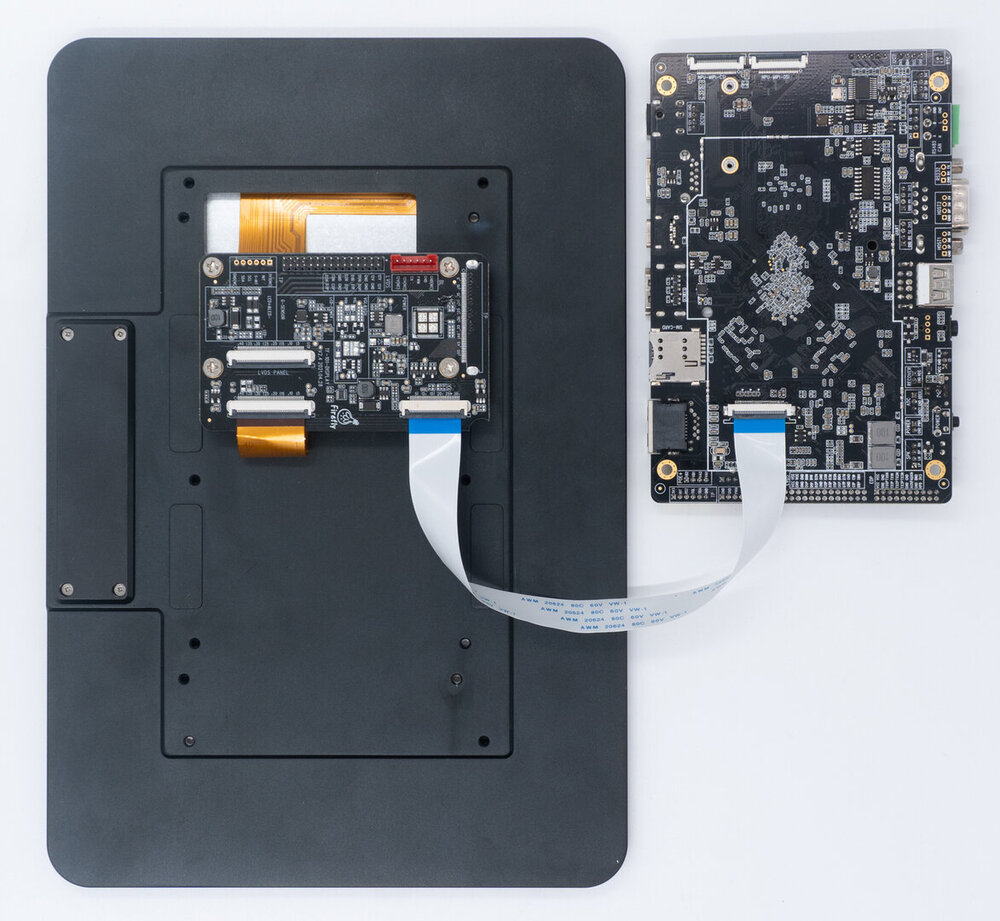

Real figure
