Camera Module

OV13850 Camera Moudle(Out of production)

Product Parameter

Brand：Omnivision
Model：CMK-OV13850
Interface：MIPI
Pixels：1320W

Firmware follow

CMK-OV13850 camera module is supported by default in public firmware.

Datasheet

DataSheet and schematic of OV13850 Camera Module.


Connection Method

Renderings

CAM-8MS1M Monocular camera

Product Parameter

Brand：SV
ISP：XC7160
Sensor: SC8238
Interface: MIPI
Pixels: 800W(Currently only supports up to 1080P, 4K is still being adapted)

Reference firmware

Public Fimware support CAM-8MS1M camera module by default. If it doesn't work, please update the latest firmware. Android 9.0 Download link

Physical map

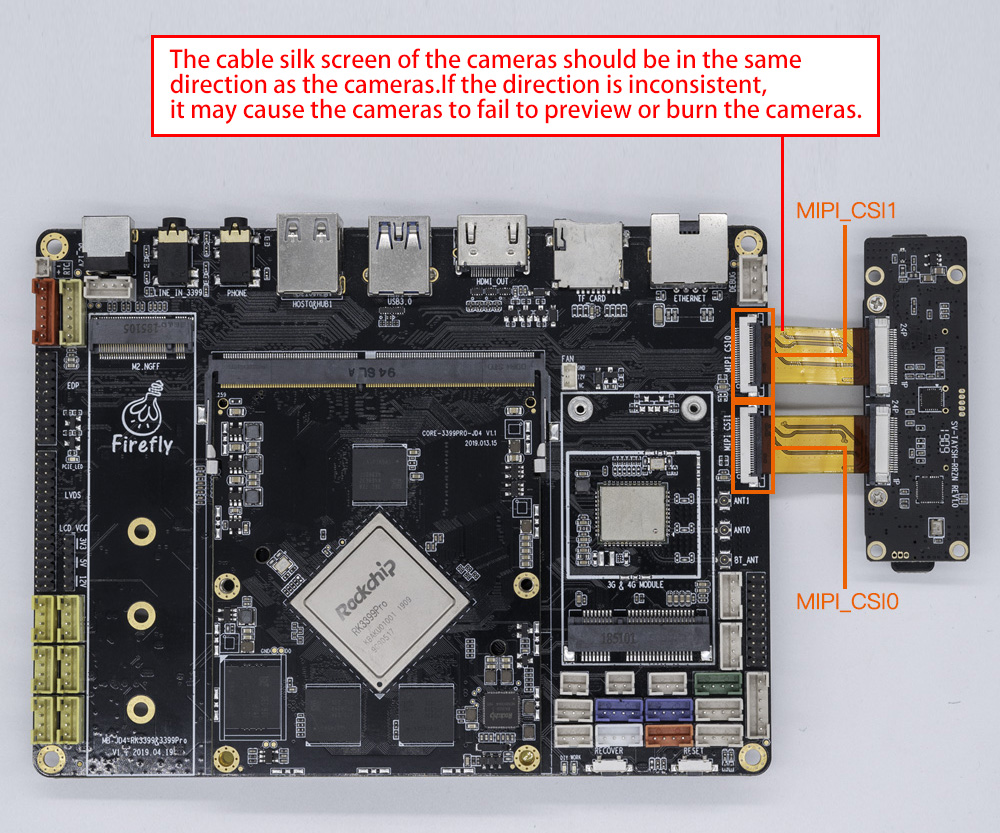

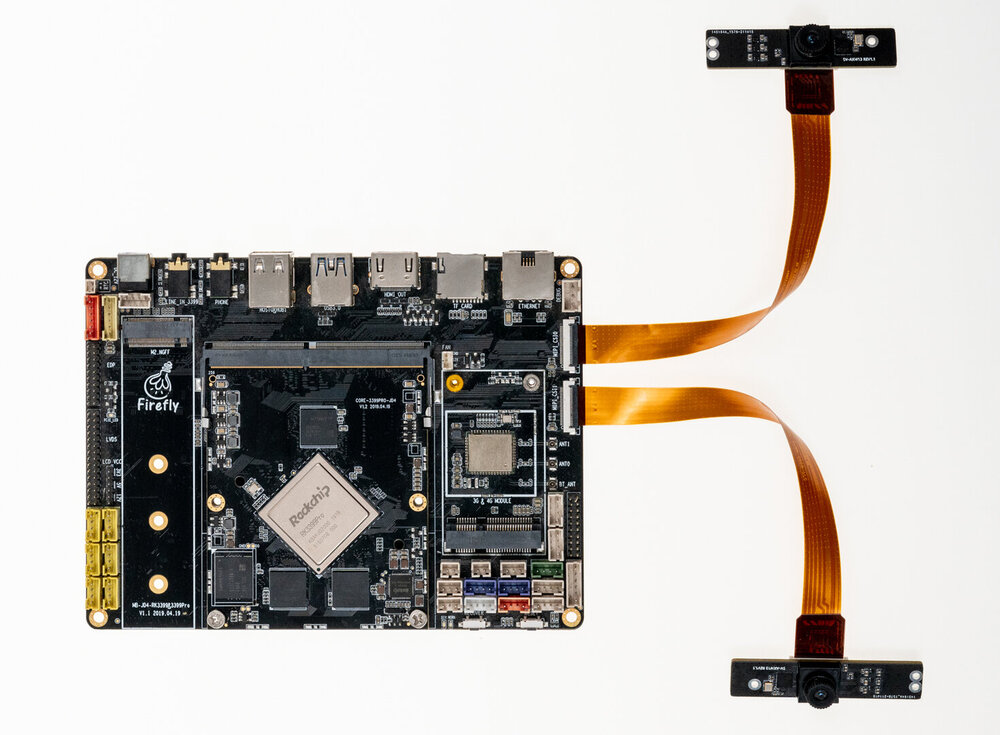

Connection method

Real pictures

SV-TAYSH-TQ Camera module

Product parameters

Model：XC7022(RGB)/XC6130(IR)
Interface ：MIPI
Pixel ：200W

Patch

kernel/arch/arm64/boot/dts/rockchip/rk3399pro-firefly-aiojd4.dtsi

        xc7160b: xc7160b@1b {
+                status = "disabled";
                reset-gpios = <&gpio1 RK_PC4 GPIO_ACTIVE_HIGH>;
        };
        xc7160f: xc7160f@1b {
+                status = "disabled";
                reset-gpios = <&gpio1 RK_PC4 GPIO_ACTIVE_HIGH>;
        };

        XC7022b: XC7022b@1b{
+                status = "okay";
                reset-gpios = <&gpio0 RK_PB5 GPIO_ACTIVE_HIGH>;
        };

        XC6130b: XC6130b@23{
+                status = "okay";
                reset-gpios = <&gpio0 RK_PB5 GPIO_ACTIVE_HIGH>;
        };

Modify the above patch and complie kernel, then reboot after upgrading boot.img.
