Interface definition

Interface definition of the whole machine

AIO-3399Pro-JD4 provides rich interfaces, including:

• Power interface,
• 1 x USB3.0(host/device), 7 x USB2.0 (interface 2, seat 5),
• HDMI,
• Ethernet,
• double an LVDS interface screen, eDP screen interface,
• TP touch interface,
• screen voltage jump line interface,
• backlight interface,
• WIFI antenna,
• bluetooth antenna,
• power button,
• MIC interface,
• audio input/output (linein, lineout), 3.5 mm headphone jack,
• 12 v power supply interface,
• IR interface,
• TF card slot, SIM card slot,
• interface extension buttons,
• speaker interface,
• recovery button,
• EDP screen interface,
• debugging serial port,
• industrial serial port (RS485,RS232,2TTL),
• RTC power interface,
• MIPI screen interface (dual LVDS multiplex),
• mini-pcie.

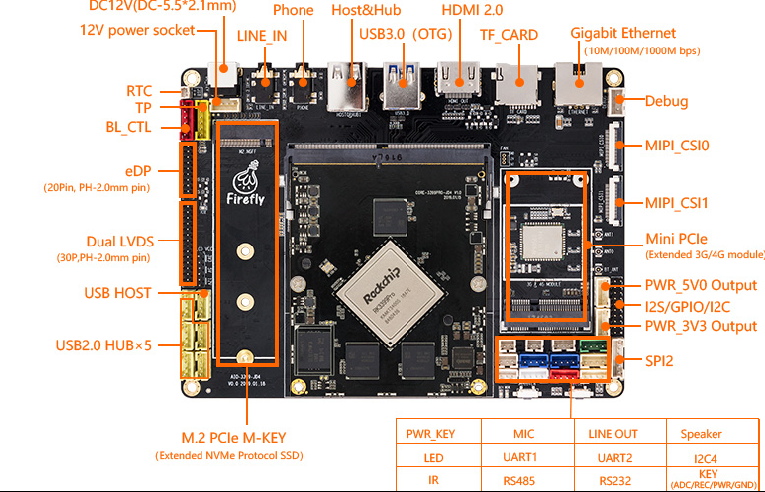

The details are as follows:

Special interface

Software&Hardware: Not support LINE_IN/LINE_OUT, USB_HOST2, Only support SPEAKER One channel (Baseboard JD4-v1.0).
