Screen module

7.85 MIPI LCD module

Note : the AIO-3399J motherboard does not carry the mipi_dsi interface by default, and the hardware needs to be modified if this function is needed. Please refer to LCD driver section for details.

Product parameters

• model: B080XAN01
• size: 7.85 inch
• resolution: 1024x768
• display interface: MIPI
• panel material: IPS panel
• visual Angle: 160°
• touch screen: multi-point capacitive touch

Compile command

Using official SDK to compile firmware that support 7.85 inch screen firmware need the patch (0001-AIO-SDK-mipi-support-7.85-MIPI-lcd.patch ) , and then, execute the following command：

• Android 7.1 (Industry)

  ./FFTools/make.sh -j8 -d rk3399-firefly-aioc-mipi -l rk3399_firefly_aioc_mipi-userdebug
  ./FFTools/mkupdate/mkupdate.sh -l rk3399_firefly_aioc_mipi-userdebug

• Android 7.1 (Box)

./FFTools/make.sh -j8 -d rk3399-firefly-aioc-mipi -l rk3399_firefly_aioc_mipi_box-userdebug
./FFTools/mkupdate/mkupdate.sh -l rk3399_firefly_aioc_mipi_box-userdebug

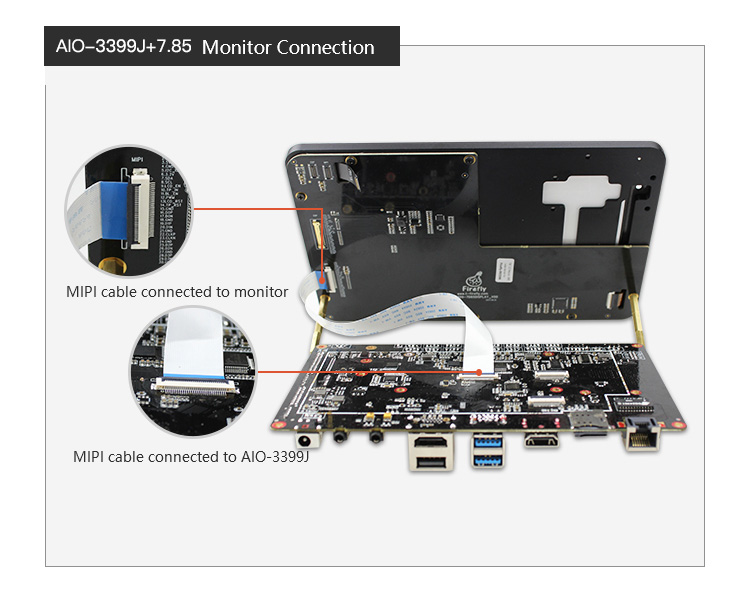

Real figure

• Note: the voltage jumper in the figure below should use 12V.

10.1" LVDS module

Product parameters

• model: HSX101H40C-L28A
• size: 10.1 inch
• resolution: 800x1280
• display interface: LVDS
• visual Angle: 170°
• touch screen: multi-point capacitive touch

Refer to the firmware

• Note: The official firmware name supporting the 10.1 screen has the word "LVDS". Below is the link to the firmware: Firmware link

Compile command

Use the following command when compiling the 10.1-inch screen firmware supported by the official website SDK:

• Android 7.1 (Industry)

./FFTools/make.sh -j8 -d rk3399-firefly-aio-lvds-HSX101H40C -l rk3399_firefly_aio_lvds-userdebug
./FFTools/mkupdate/mkupdate.sh -l rk3399_firefly_aio_lvds-userdebug

• Android 7.1 (Box)

./FFTools/make.sh -j8 -d rk3399-firefly-aio-lvds-HSX101H40C -l rk3399_firefly_aio_lvds_box-userdebug
./FFTools/mkupdate/mkupdate.sh -l rk3399_firefly_aio_lvds_box-userdebug

Reference data

[schematic of screen module Datasheet& adapter board]

Real figure

Note: the voltage jumper in the figure below should use 12V.

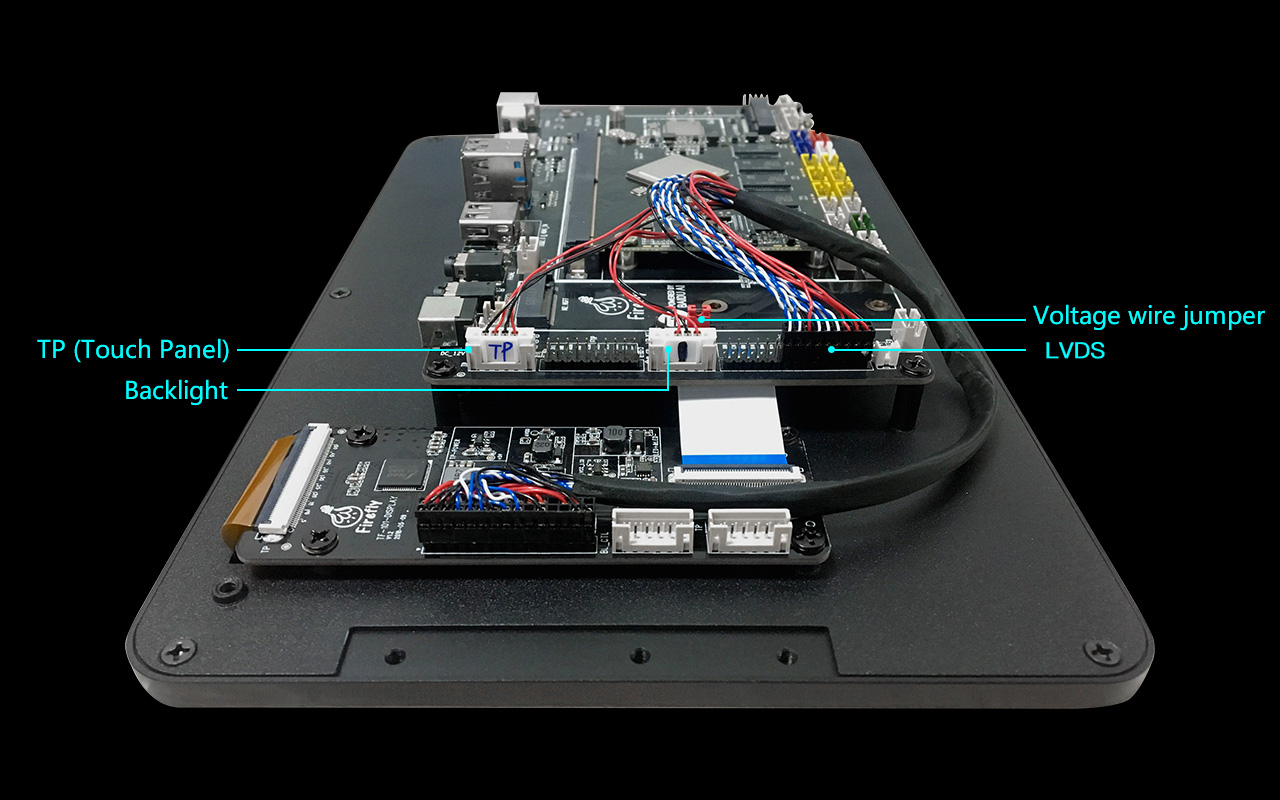

• Old version wiring diagram:

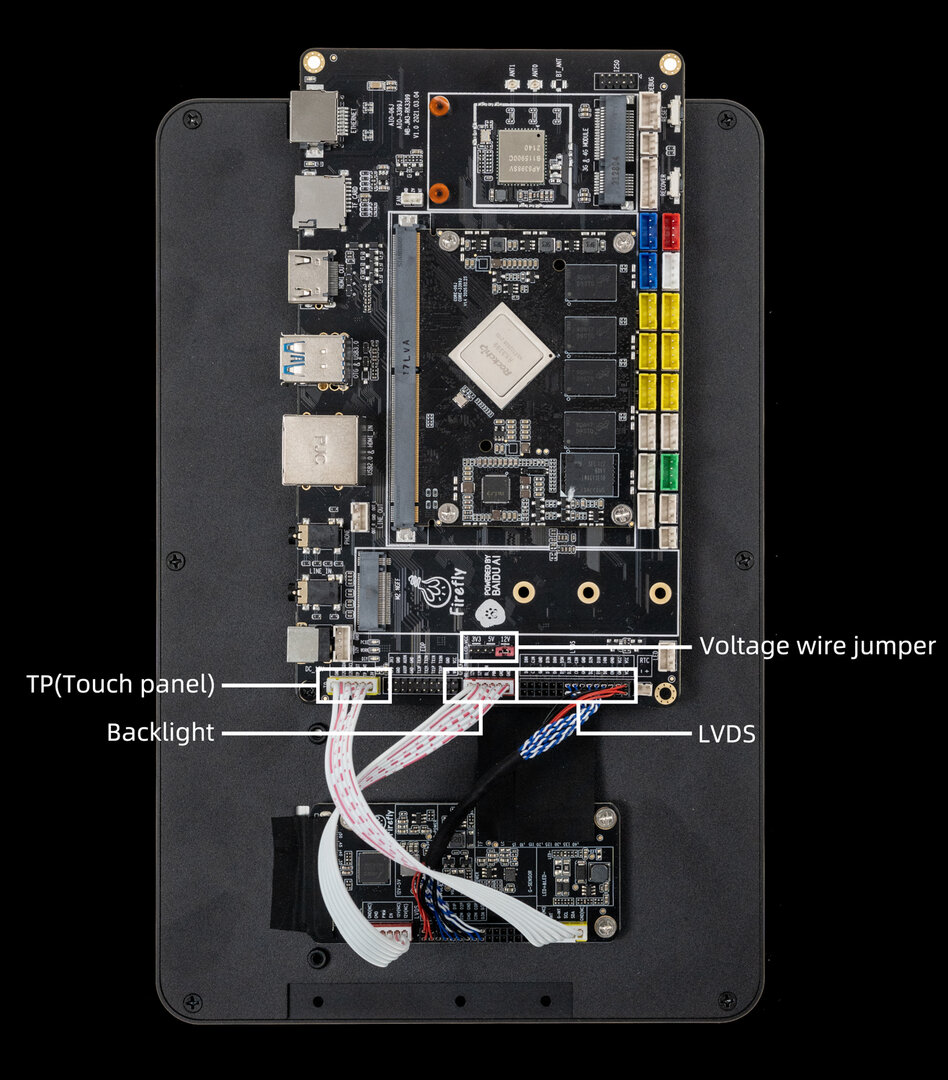

• New version wiring diagram:
