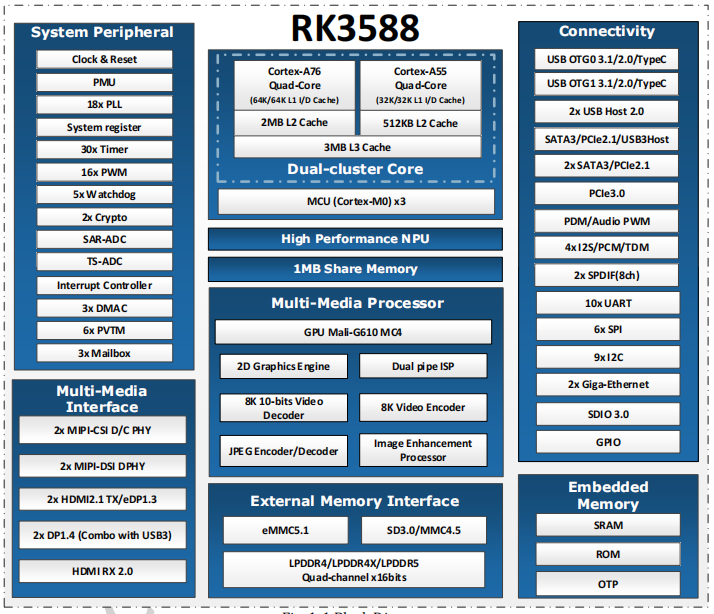

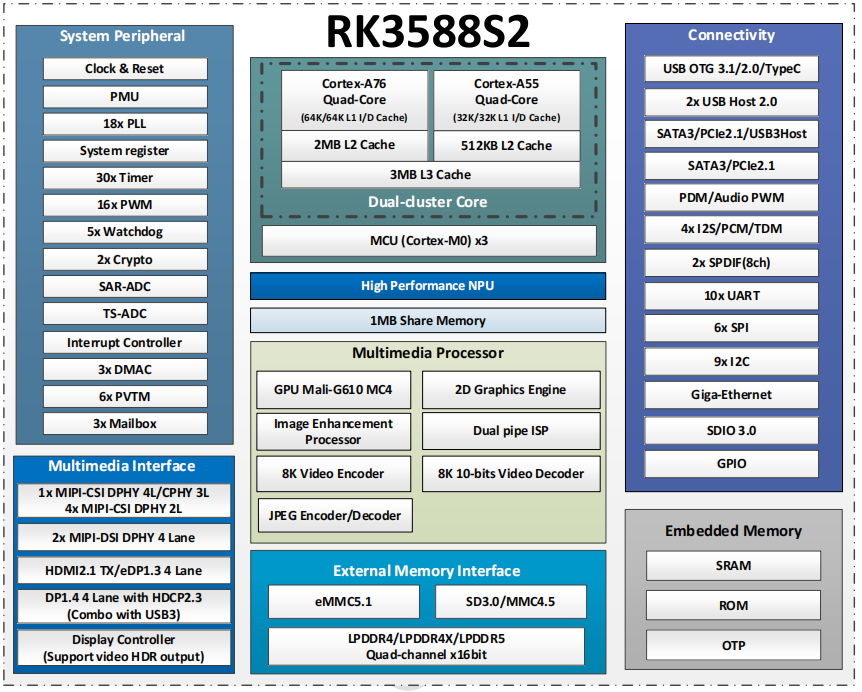

RK3588(s)

Key features

8nm process, quad-core Cortex-A76 + quad-core Cortex-A55
ARM Mali-G610 MC4 GPU, embedded high performance 2D image acceleration module
6.0 TOPs NPU， enable various AI applications
8K video codec ,8K@60fps display out
Rich Display Interface, multi-screen display
Super 32MP ISP with with HDR&3DNR, multi-camera inputs
Rich high-speed interfaces (PCIe, TYPE-C，SATA, Gigabit ethernet) Android and Linux OS

Specification	Details
CPU	• Quad core Cortex-A76 + Quad-core Cortex-A55
GPU	• ARM Mali-G610 MC4• OpenGL ES 1.1/2.0/3.1/3.2• Vulkan 1.1, 1.2• OpenCL 1.1,1.2,2.0• Embedded high performance 2D image acceleration module
NPU	• 6TOPS NPU, triple core, support int4/int8/int16/FP16/BF16/TF32 acceleration
Video Codec	• H.265/H.264/AV1/AVS2 etc. multi video decoder, up to 8K@60fps• 8K@30fps video encoders for H.264/H.265
Display	• Built-in eDP/DP/ HDMI2.1/MIPI display interface, support multiple display engine max to 8K@60fps• Supports multi-screen display with 8K60FPS max
Video in and ISP	• Dual 16M Pixel ISP with HDR&3DNR• Multiple MIPI CSI-2 and DVP interface, support HDMI 2.0 RX• Support HDMI2.0 input with 4K60FPS max
High speed interface	• PCIe3.0/PCIe2.0/SATA3.0/RGMI/TYPE-C/USB3.1/USB2.0
