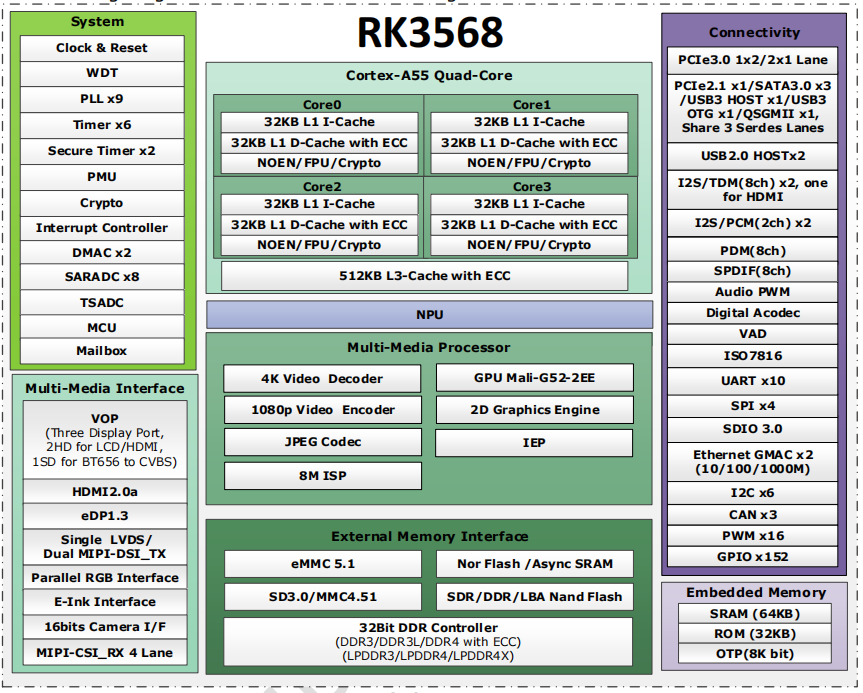

RK3568
Key features
- Quad-core Cortex-A55 up to 2.0GHz
- Mali-G52 GPU
- 1TOPS NPU
- LPDDR4/LPDDR4X/DDR4/DDR3/DDR3L/LPDDR3, ECC
- 4KP60 H.265/H.264/VP9 video decoder
- 1080P60 H.264/H.265 video encoder
- 8M ISP with HDR
- Dual dislplay, LVDS/MIPI-DSI/RGB/eDp/RGB/HDMI2.0/EBC
- 1x8ch I2S/TDM, 1x8ch PDM, 2x2ch I2S
- USB3.0 x2/SATA3.0 x3/PCIE2.1/QSGMII,PCIE3.0 1x2Lanes/2x1Lane
Specification
| Specification | Details |
|---|---|
| CPU | • Quad-Core ARM Cortex-A55, up to 2.0GHz |
| GPU | • ARM G52 2EE• Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1• High performance dedicated 2D processor |
| NPU | • Support 1T |
| Multi-Media | • Support 4K 60fps H.265/H.264/VP9 decoder• Support 1080P 60fps H.265/H.264 encoder• Support 8M ISP with HDR |
| Display | • Support multi-display• Support eDP/HDMI2.0/MIPI/LVDS/24bit RGB/EBC |
| Interface | • Support USB2.0/USB3.0/PCIe3.0/PCIe2.1/SATA3.0/QSGMII |
