Log Collection

While it runs, the device keeps a diary of what happens, and that diary is the log. When you troubleshoot a problem, catching the right logs often leads you to the cause quickly.

This document is scenario-driven: it first walks through the most common situations using "what went wrong", and for each one tells you which log to collect, how to collect it, and how to read the result. At the end it provides the complete fflog command reference for when you need to look something up. You do not need any programming knowledge, all commands can be copied directly, and the sample outputs come from a real device; the actual content depends on your device.

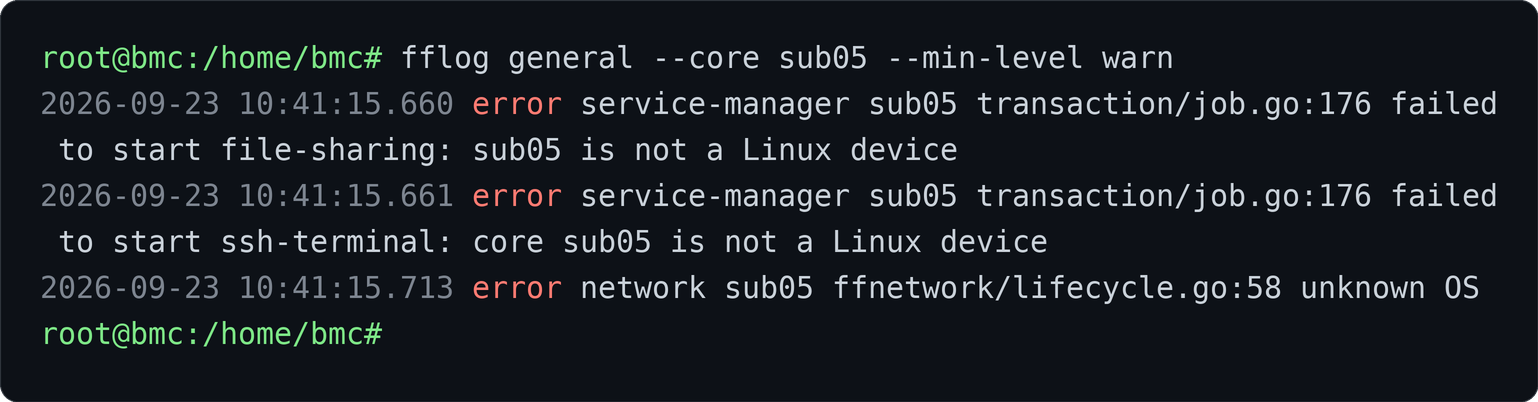

The image below shows the real result of running fflog general --core sub05 --min-level warn on the BMC: a single command reveals the errors on the sub05 sub-board. Each log includes the time, level, failing module (such as service-manager / network), sub-board (sub05), code location (such as transaction/job.go

), and the reason, so you can tell at a glance which sub-board and module went wrong.

Log In to the BMC First

Every scenario starts with logging in to the BMC command line (the logs are stored on the BMC). Choose either method:

SSH: ssh bmc@<aBMC management IP>; for credentials, see Accessing the BMC;
BMC Shell: open a command line in the aBMC web interface through Remote console → BMC Shell.

After logging in, verify that the tool is available:

fflog --version
# fflog v1.0

If you forget the options, just run fflog or fflog <log type> --help to see the help.

Scenario 1: A Sub-board Is Abnormal or Unreachable

Symptom: a particular sub-board (for example sub05) cannot be reached, reports an abnormal state, or its features are unavailable.

What to do: collect only that sub-board's logs, and look at warnings and errors first.

fflog general --core sub05 --min-level warn

Sample output:

2026-09-22 15:00:15.204 warn node-service sub05 OS/node_deploy.go:306 nodeService recovery failed: failed to push nodeService: exit status 1
2026-09-22 15:00:48.220 error service-manager sub05 transaction/job.go:176 failed to start ssh-terminal: core sub05 is not a Linux device
2026-09-22 15:00:48.221 error service-manager sub05 transaction/job.go:176 failed to start file-sharing: sub05 is not a Linux device

If you are not sure which sub-boards exist, list them first:

# List every sub-board name seen in the general logs, with counts
fflog general --all --fields core_name | sort | uniq -c

    535 -
    188 bmc
    135 machine
      9 sub01
      9 sub02
      9 sub03
      9 sub04
    646 sub05
      9 sub06
      9 sub07
     96 sub08
      9 sub09
      9 sub10

How to read it:

Has output: locate the module by time and content. In the sample above, the first line is node-service reporting that nodeService recovery failed on sub05, and the next two show ssh-terminal and file-sharing failing to start on sub05 because it is "not a Linux device";
Empty: the sub-board itself recorded no error, so the cause is likely external (network, power). Continue with Troubleshooting;
In the list, - means a BMC-side log not tied to a specific sub-board, bmc is the management controller itself, and machine is the whole machine.

Only the general log and the system log can be filtered by sub-board (--core); the manager log has no sub-board dimension and cannot be filtered this way.

Scenario 2: A Web Operation or API Call Fails

Symptom: an operation in the aBMC web interface does not take effect, or a Redfish API returns an error.

What to do: the manager log records "who, when, what was requested, the result, and the latency", which fits this kind of problem well.

# Recent operations
fflog manager

# Only requests that did not succeed (status code is not 200)
fflog manager --all --where "status_code != 200"

# Only requests from a particular user
fflog manager --all --user admin

How to read it: a manager log line contains, in order, time, level, operator, source IP, request method and address, status code, latency, and description. For example:

2026-09-23 10:24:07.694 info RunLog admin 172.16.11.30 GET /redfish/v1/Systems/bmc/Oem/Firefly/DateTime 200 19 Successfully obtained date and time
2026-09-22 13:58:48.735 info RunLog admin 172.16.11.30 POST /redfish/v1/Systems/sub05/Actions/ComputerSystem.Reset 200 101 Successfully reset the server power supply

The first is a successful time query (status code 200, 19 ms); the second is a reset operation on sub05. A 2xx status code means success, while 4xx/5xx usually means the request had a problem or the service failed; combined with path you can tell which operation went wrong.

Scenario 3: Hardware Alarms (Temperature, Voltage, Fan)

Symptom: the device raises an alarm, fan speed is abnormal, panel LEDs are abnormal, or you receive temperature or voltage alerts.

What to do: the system log records hardware events and sensor information, so look at it first.

# Recent system logs
fflog system

# All of today's system logs
fflog system --today --all

# Only warnings and above
fflog system --all --min-level warn

How to read it: for example

2026-09-21 21:20:26.073 warn Log1 bmc SEL CPU State 33 "CPU temperature 70°C alarm":"bmc 节点cpu温度过 70 摄氏度"

This means the BMC detected that the CPU State sensor (number 33) exceeded 70°C and raised a SEL alarm; you can then check cooling, fans, and ambient temperature. The fields are, in order: time, level, event ID, sub-board, event type, sensor type, sensor number, and description.

Scenario 4: The Device Fails to Start, or a Service Will Not Come Up

Symptom: after a restart, some feature is unavailable, or a service did not start properly.

What to do: the general log records the startup process and errors of each module.

# Latest general logs
fflog general

# Only errors and warnings
fflog general --level error,warn

# Only one module
fflog general --logger service-manager

How to read it: for example

2026-09-23 09:11:44.674 error kea - dhcp4/core.go:81 /etc/kea/kea-dhcp4.conf is inexistence,program exit
2026-09-23 09:28:22.858 error network sub05 ffnetwork/lifecycle.go:58 unknown OS

The first means the DHCP service exited because a configuration file is missing; the second means the network module could not recognize the system on sub05. The msg is the reason, and the logger (module) and caller (code location) at the front help you locate it quickly.

Scenario 5: The Problem Is Reproducing Right Now

Symptom: the problem appears from time to time, or is reproducing right now, and you want to capture the logs at the moment it happens.

What to do: use --follow to keep watching newly generated logs (it shows only new logs after the command starts and does not replay history).

# Keep showing new error logs
fflog general -f --level error

# Keep watching one sub-board's new logs
fflog general --follow --core sub05

# Keep outputting JSONL for easy saving
fflog manager --follow --format jsonl

Press Ctrl+C to stop.

Scenario 6: Send the Logs to Firefly Technical Support

Symptom: you cannot figure it out yourself and need to send the logs to Firefly technical support for analysis.

What to do: export the logs to files first, then send them. Use --format jsonl (one record per line, which is easy for us to analyze).

# Export the three log types
fflog general --all --format jsonl > /tmp/general.jsonl
fflog manager --all --format jsonl > /tmp/manager.jsonl
fflog system --all --format jsonl > /tmp/system.jsonl

After exporting, you can use wc -l to check how many records each file has:

wc -l /tmp/general.jsonl
# 1672 /tmp/general.jsonl

A file looks like this (one JSON object per line):

{"time":"2026-09-20T17:47:58.972+08:00","level":"info","logger":"node-service","core_name":"sub05","caller":"OS/node_deploy.go:128","msg":"部署成功: 127.0.0.1:5005"}

Then copy the files back to your computer (replace <aBMC management IP> with the real address):

scp bmc@<aBMC management IP>:/tmp/general.jsonl .

You can also retrieve the files through aBMC File Sharing.

Collection Tips

When reporting a problem, also tell us roughly when the fault occurred, the device model, and the firmware version. Make the log time range cover as much of the period before and after the fault as possible, so it can be located more easily.

Appendix: fflog Command Reference

The scenarios above are "how to use it by situation"; this appendix is the "complete manual". For daily use you really only need three commands (fflog general / fflog manager / fflog system) and a few options.

The three log types

Log type	In plain words	Command	Alias
General log	What the device was doing: module startup, running state, internal errors	`fflog general`	`fflog g`
Manager log	Who operated the device through the web or an interface: user, request path, result, latency	`fflog manager`	`fflog m`
System log	The "health" of the hardware: temperature, voltage, fan, and so on	`fflog system`	`fflog s`

Log levels, from low to high: debug < info < warn < error. With no options, the command shows the latest 10 logs, ordered from oldest to newest.

Common options

Option	Description
`-n, --limit N`	Select the latest `N` records (default 10; `N` must be a positive integer).
`--all`	Output all matching records. Mutually exclusive with `-n/--limit`.
`-r, --reverse`	Reverse the display order (newest first).
`--since TIME`	Query from the specified time, inclusive.
`--until TIME`	Query up to the specified time, exclusive.
`--today`	Query from local midnight to the current time. Mutually exclusive with `--since` and `--until`.
`-l, --level LEVELS`	Match exact levels; separate multiple values with commas, for example `warn,error`.
`--min-level LEVEL`	Match logs at or above the given severity, for example `--min-level warn`.
`-w, --where EXPR`	Filter by field; repeatable, and multiple conditions are combined with AND.
`-f, --follow`	Continuously output only logs written after the command starts.
`--interval DURATION`	Follow polling interval (default `500ms`, range `100ms` to `1m`).
`--format FORMAT`	Output format: `compact` (default) or `jsonl`.
`--fields FIELDS`	Output only the specified fields, in the given order.
`--exclude-fields FIELDS`	Remove the specified fields from the default set.
`--delimiter TEXT`	Set the compact field delimiter; `\t` means a tab.
`--header`	Output the field names once before the first compact record.
`--no-color`	Disable coloring of the level field.

--all is mutually exclusive with -n/--limit, --level with --min-level, and --fields with --exclude-fields. --follow cannot be combined with -n, --all, --reverse, --since, --until, or --today.

Dedicated filters

Log type	Dedicated options (separate multiple values with commas)
general	`--core` (sub-board name), `--logger` (module)
manager	`--category`, `--user`, `--status` (status code)
system	`--core` (sub-board name)

Time filtering

--since accepts two forms:

Relative time: a positive integer with a lowercase unit s, m, h, or d, for example 30s, 15m, 2h, 1d (d always means 24 hours);
Local absolute time: YYYY-MM-DD or YYYY-MM-DD HH:MM.

--until accepts only local absolute time. The range is half-open: --since includes the start, --until excludes the end. All times are interpreted and displayed in the device's local time zone.

fflog general --since 30m
fflog manager --since "2026-09-23 08:00" --until "2026-09-23 12:00" --all

Field filtering (--where)

The form is field operator value, with optional spaces around the field and operator. String fields support =, !=, ~ (contains), and !~ (does not contain); number fields support =, !=, >, >=, <, and <=. Multiple --where conditions are always combined with AND.

Log type	String fields	Number fields
general	`logger`, `core_name`, `caller`	none
manager	`category`, `username`, `client`, `method`, `path`	`status_code`, `latency_ms`
system	`log_id`, `core_name`, `entry_type`, `sensor_type`	`sensor_number`

fflog manager --all --where "status_code >= 400"
fflog manager --where "path~/redfish"
fflog manager --where "latency_ms>=30"

If a field value itself contains a comma, use --where instead of a list option, for example --where "logger=machine,network".

Output formats and fields

compact (default): one log per line, fields separated by spaces, good for reading directly; an empty value is shown as -.
jsonl: one JSON object per line, good for export and program analysis. Use it when sending logs to technical support.

{"time":"2026-09-23T09:28:22.771+08:00","level":"info","logger":"service-manager","core_name":"sub05","caller":"transaction/job.go:172","msg":"started vnc"}

To add a header for easier reading, set a custom delimiter and enable the header:

fflog manager --header --fields time,status_code,msg --delimiter " | "

time | status_code | msg
2026-09-23 10:24:17.685 | 200 | Successfully obtained date and time

Default fields of each log type:

Log type	Each line contains, in order
general	time, level, logger, core_name, caller, message
manager	time, level, category, username, client, method, path, status_code, latency_ms, message
system	time, level, log_id, core_name, entry_type, sensor_type, sensor_number, message

To keep only some fields or drop some, use --fields (keep only) or --exclude-fields (drop), for example:

fflog general --fields time,level,msg

FAQ

Q: The result is empty? By default only the latest 10 are shown, and the filters also limit the result. Remove the filters, add --all, or widen the --since time range and try again.

Q: It reports that the database or a table does not exist? Confirm that the aBMC service on the device is running properly and that the current firmware version supports the log type you are querying.

Q: The displayed time is different from what I expect? All times are shown in the device's local time zone. If the device time is wrong, calibrate the system time in the aBMC web interface first, then query again.

Q: There are too many options to remember? Running fflog on its own shows the help below, or run fflog general --help for the options of one log type. (The tool's built-in help text is currently in Chinese.)

查询 Firefly BMC 日志

用法:
  fflog [命令] [选项]

可用命令:
  general     查询 general 日志
  help        显示命令帮助
  manager     查询 manager 日志
  system      查询 system 日志

选项:
  -h, --help      显示帮助
  -v, --version   显示版本
