Deploying a Simple Application

This chapter uses Nginx as an example to deploy a simple application on a K3s cluster that has completed online deployment. It covers commonly used resources such as host directory mounts (hostPath), Services, and Ingress.

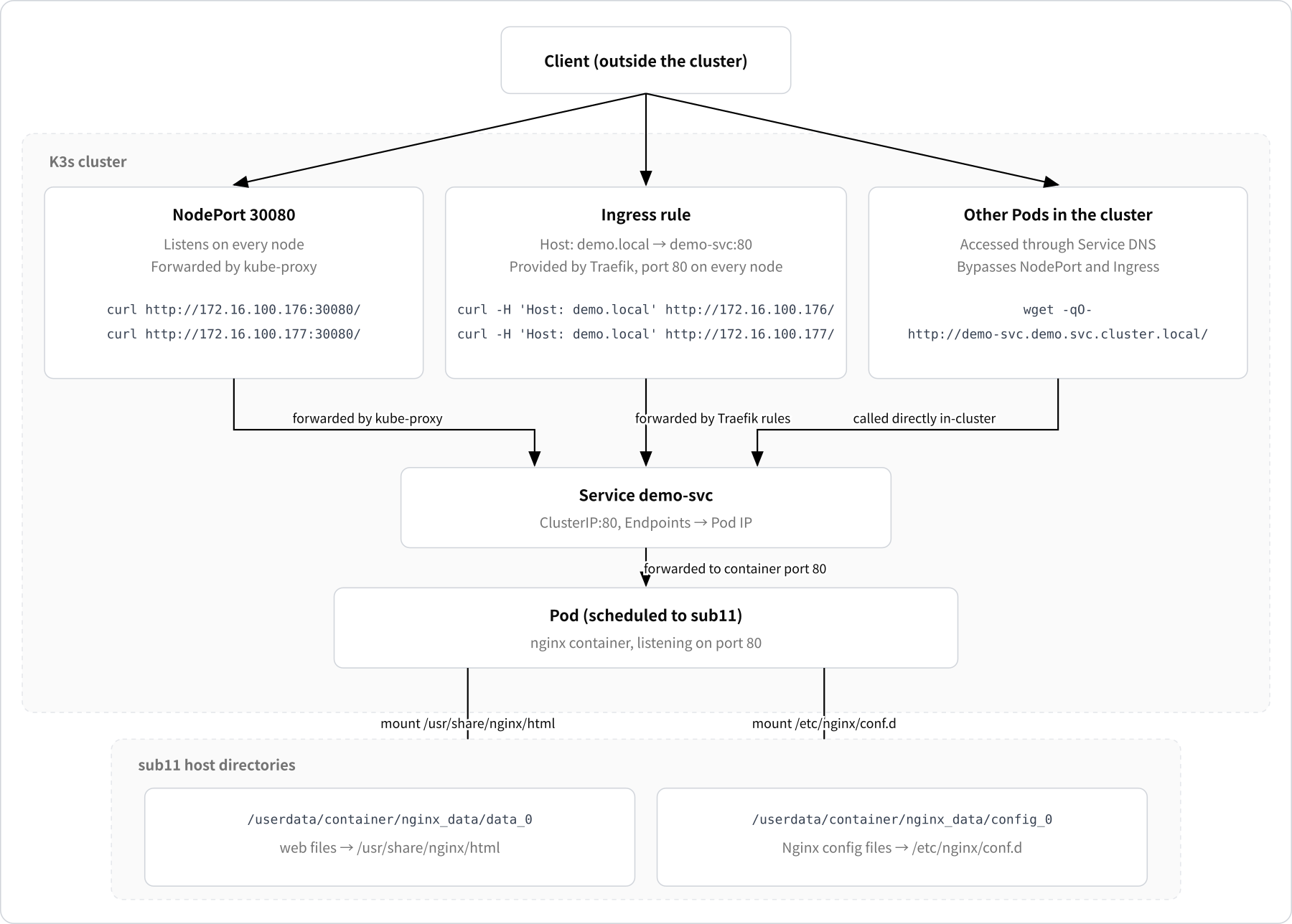

What is deployed: a single YAML file that creates four kinds of resources: Namespace, Deployment, Service, and Ingress, and uses hostPath to mount a host directory into the Pod.
Access methods: access the Nginx application through NodePort and Ingress.
Prerequisites: at least one Ready node in the cluster, and that node can pull the Nginx image (import it in advance in an offline environment).

Check the Node Status

Before deploying the application, confirm that at least one node is in the Ready state:

sudo k3s kubectl get nodes

Create the Application Manifest

Save the following content as demo-app.yaml:

apiVersion: v1
kind: Namespace
metadata:
  name: demo                             # Dedicated namespace, easy to manage and clean up
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: demo-app
  namespace: demo
spec:
  replicas: 1                            # Run one Pod
  selector:
    matchLabels:
      app: demo-app
  template:
    metadata:
      labels:
        app: demo-app                    # The Service finds the Pod through this label
    spec:
      nodeSelector:
        kubernetes.io/hostname: sub11    # hostPath is a node-local directory, so pin the Pod to this node
      containers:
        - name: nginx
          image: nginx:1.27-alpine       # Must match the node CPU architecture; this environment is arm64
          ports:
            - containerPort: 80          # Nginx listens on port 80 in the container
          volumeMounts:
            - name: data
              mountPath: /usr/share/nginx/html   # Web content directory
            - name: config
              mountPath: /etc/nginx/conf.d       # Nginx configuration directory
          resources:
            requests:
              cpu: 100m                  # CPU reserved when the Pod is scheduled
              memory: 64Mi               # Memory reserved when the Pod is scheduled
            limits:
              cpu: 500m                  # The Pod uses at most 500m CPU
              memory: 256Mi              # The Pod uses at most 256Mi of memory
      volumes:
        - name: data
          hostPath:
            path: /userdata/container/nginx_data/data_0     # Web content directory
            type: DirectoryOrCreate   # kubelet creates the directory if it does not exist
        - name: config
          hostPath:
            path: /userdata/container/nginx_data/config_0   # Nginx configuration directory
            type: DirectoryOrCreate
---
apiVersion: v1
kind: Service
metadata:
  name: demo-svc
  namespace: demo
spec:
  type: NodePort                         # Access the application from outside through "<node IP>:<port>"
  selector:
    app: demo-app                        # Forward to Pods labeled app=demo-app
  ports:
    - name: http
      port: 80                           # Port exposed by the Service inside the cluster
      targetPort: 80                     # Forward to port 80 of the Pod
      nodePort: 30080                    # Reach the application at <node IP>:30080 from outside
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: demo-ingress
  namespace: demo
spec:
  ingressClassName: traefik              # Use the Traefik bundled with K3s to handle Ingress requests
  rules:
    - host: demo.local                   # This rule matches requests whose Host is demo.local
      http:
        paths:
          - path: /
            pathType: Prefix             # Match all requests under /
            backend:
              service:
                name: demo-svc           # Forward requests to demo-svc
                port:
                  number: 80             # Use port 80 of the Service

Deploy the Application

sudo k3s kubectl apply -f demo-app.yaml

Check the created resources:

sudo k3s kubectl -n demo get all,ingress -o wide

Confirm that the Pod STATUS is Running and that NODE is sub11.

Write the Page and Configuration

Write the configuration and web page on the sub11 node

sudo tee /userdata/container/nginx_data/config_0/default.conf >/dev/null <<'EOF'
server {
    listen 80;
    root /usr/share/nginx/html;
    index index.html;
}
EOF

echo hello-from-hostpath | sudo tee /userdata/container/nginx_data/data_0/index.html

Reload the Nginx configuration on the bmc node

sudo k3s kubectl -n demo exec deploy/demo-app -- nginx -s reload

Access the Application

After deployment, the application can be accessed in the following ways:

The Service uses 30080 as its NodePort, so any node IP works:

curl http://172.16.100.177:30080/

hello-from-hostpath

The NodePort listens on every node, so accessing it through the bmc address also reaches this Pod on sub11:

curl http://172.16.100.176:30080/

hello-from-hostpath

Manifest Description

Resource	Key Settings	Purpose
`Namespace`	`name: demo`	Isolate all resources of this application; deleting the namespace cleans everything up
`Deployment`	`image`, `replicas`, `nodeSelector`, `resources`	Run the Nginx Pod and pin it to `sub11` with `nodeSelector`
`Deployment.volumes`	`hostPath`, `type: DirectoryOrCreate`	Mount the host directories `data_0` and `config_0` into the container, creating them if they do not exist
`Service`	`type: NodePort`, `nodePort: 30080`	Provide a stable entry point for the Pod and listen on `30080` on every node
`Ingress`	`host: demo.local`, `ingressClassName: traefik`	Forward requests to `demo-svc` by domain name, handled by Traefik

Clean Up the Application

Deleting the namespace also deletes the Deployment, Service, Ingress, and other cluster resources, but the hostPath directories belong to the host and are not deleted; clean them up separately.

Delete the cluster resources on the bmc node

sudo k3s kubectl delete namespace demo

Delete the host data on the sub11 node

sudo ls -l /userdata/container/nginx_data/data_0/

# Back up
sudo tar czf /userdata/nginx_data-backup.tar.gz -C /userdata/container nginx_data

# Delete
sudo rm -rf /userdata/container/nginx_data
