Interface definition

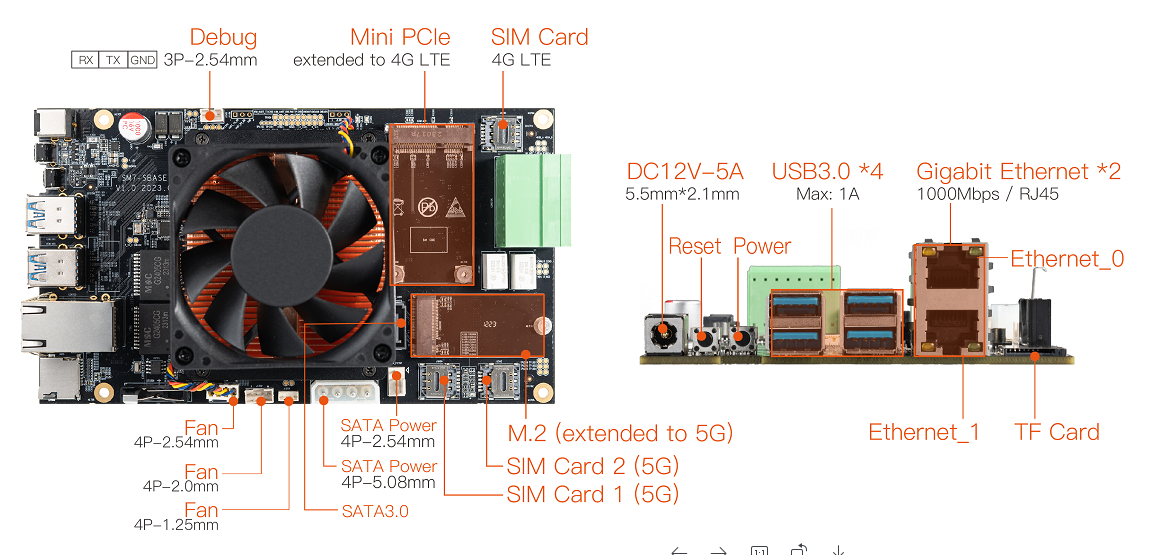

Interface definition of the whole machine

AIO-1684XQ provides rich interfaces, including:

• 12V power interface (5.5*2.5mm)
• 4 x USB 3.0
• 2 x Gigabit Ethernet
• TF card slot
• SIM card slots x 3
• Fan interface
• Power button
• Reset button
• Debug serial port (labeled as "Debug" in the diagram)

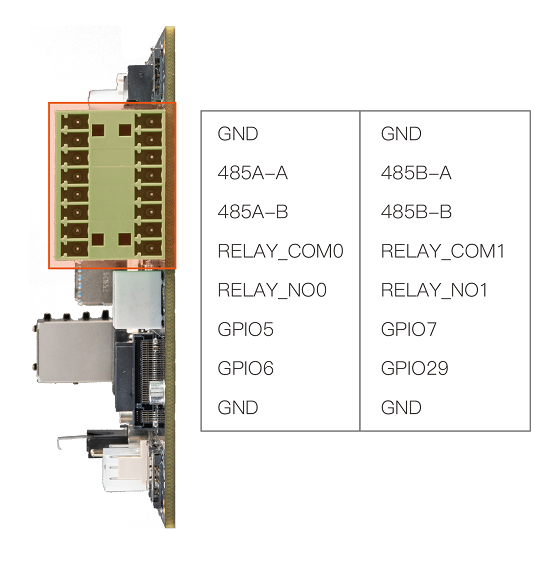

• Industrial serial ports (RS485, TTL)
• Mini PCIe interface (4G LTE)
• M.2 interface (5G Module)
• SATA interface (SATA 3.0 HD)

The specific details are as follows:

4G Module Antenna Connection

Antenna Specifications: Stick Antenna 4GLTE-5dB; Round Head
