Accessories

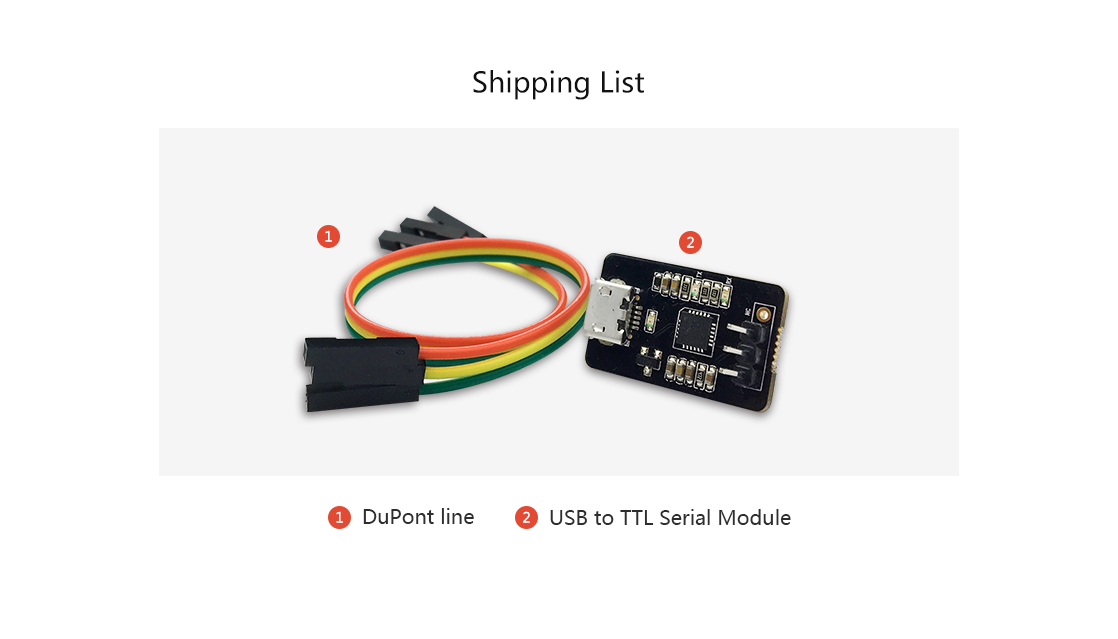

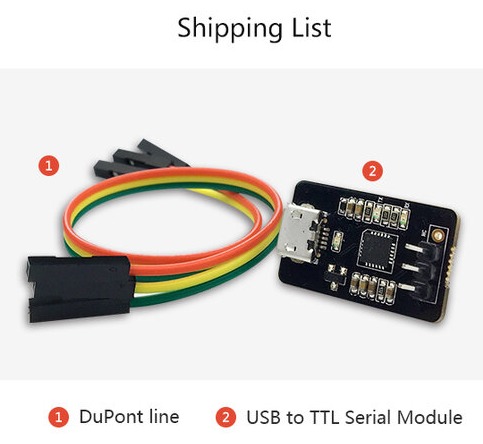

USB to UART module

Product Parameter

• Brand：Firefly
• Size：29mm * 19mm

Reference material

• Driver link


Connection

EC20 4G module

Product Parameter

• Model
  • EC20-C R2.0 Mini PCIe-C
• Power supply
  • 3.3V～3.6V (Typical 3.3V)
• Band
  • TDD-LTE: B38/B39/B40/B41
  • FDD-LTE：B1/B3/B8
  • WCDMA: B1/B8
  • TD-SCDMA: B34/B39
  • GSM: 900/1800
• Data
  • TDD-LTE： Max 130Mbps (DL) Max 35Mbps (UL)
  • FDD-LTE： Max 150Mbps (DL) Max 50Mbps (UL)
  • DC-HSPA+： Max 42Mbps (DL) Max 5.76Mbps (UL)
  • UMTS： Max 384Kbps (DL) Max 384Kbps (UL)
  • CDMA： Max 3.1Mbps (DL) Max 1.8Mbps (UL)
  • TD-SCDMA： Max 4.2Mbps (DL) Max 2.2Mbps (UL)
  • EDGE： Max 236.8Kbps (DL) Max 236.8Kbps (UL)
  • GPRS： Max 85.6Kbps (DL) Max 85.6Kbps (UL)
• Connector
  • USB: USB 2.0 high-speed interface, 480Mbps
  • Digital voice: 1 digital voice interface (optional)
  • USIM: 1.8 V / 3 V
  • Network instructions: * 2, NET_STATUS, and NET_MODE
  • UART: x 1 UART
  • Reset: low level
  • PWRKEY: low level
  • Antenna interface: x 3 (main antenna, split antenna and GNSS antenna interface)
  • ADC: x 2
• Dimensions
  • 51.0mm×30.0mm×4.9mm
• Weight
  • About 10.5g
• Approvals
  • CCC/ NAL*/ TA

Reference firmware:

• The public firmware supports EC20 4G module by default

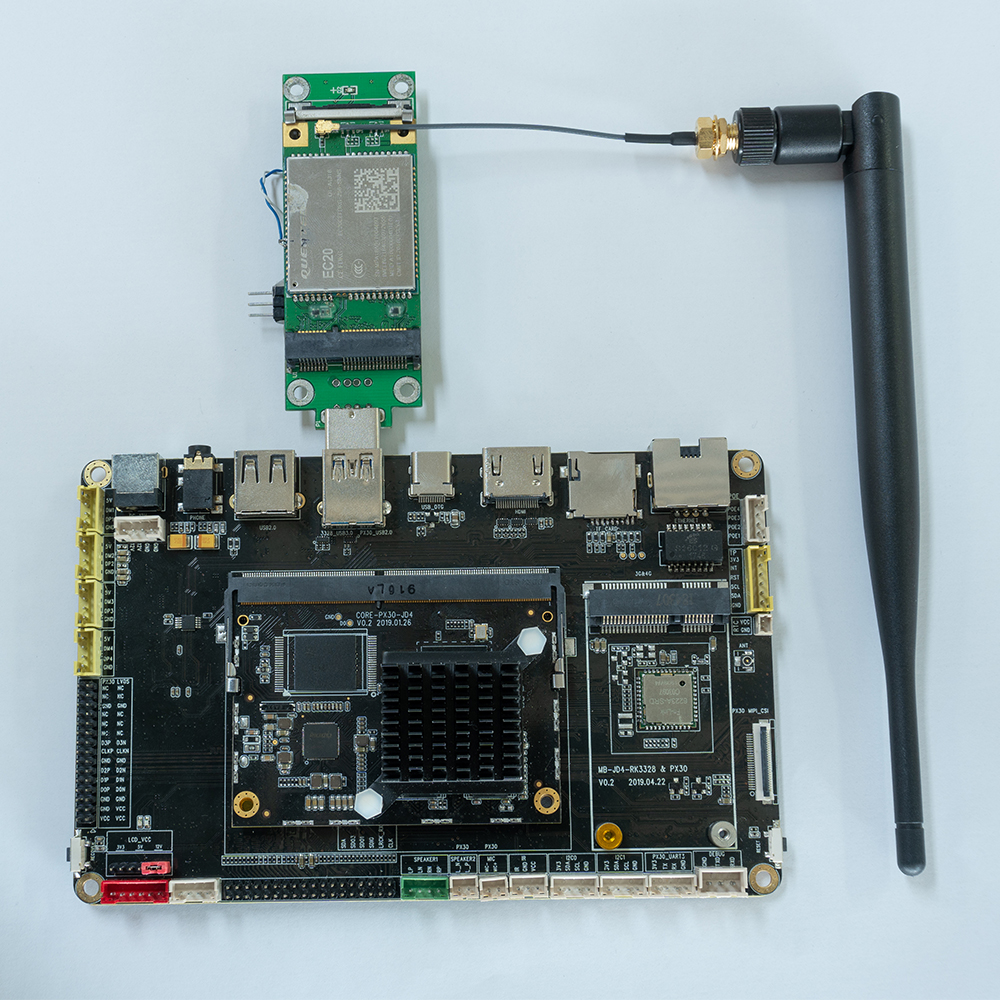

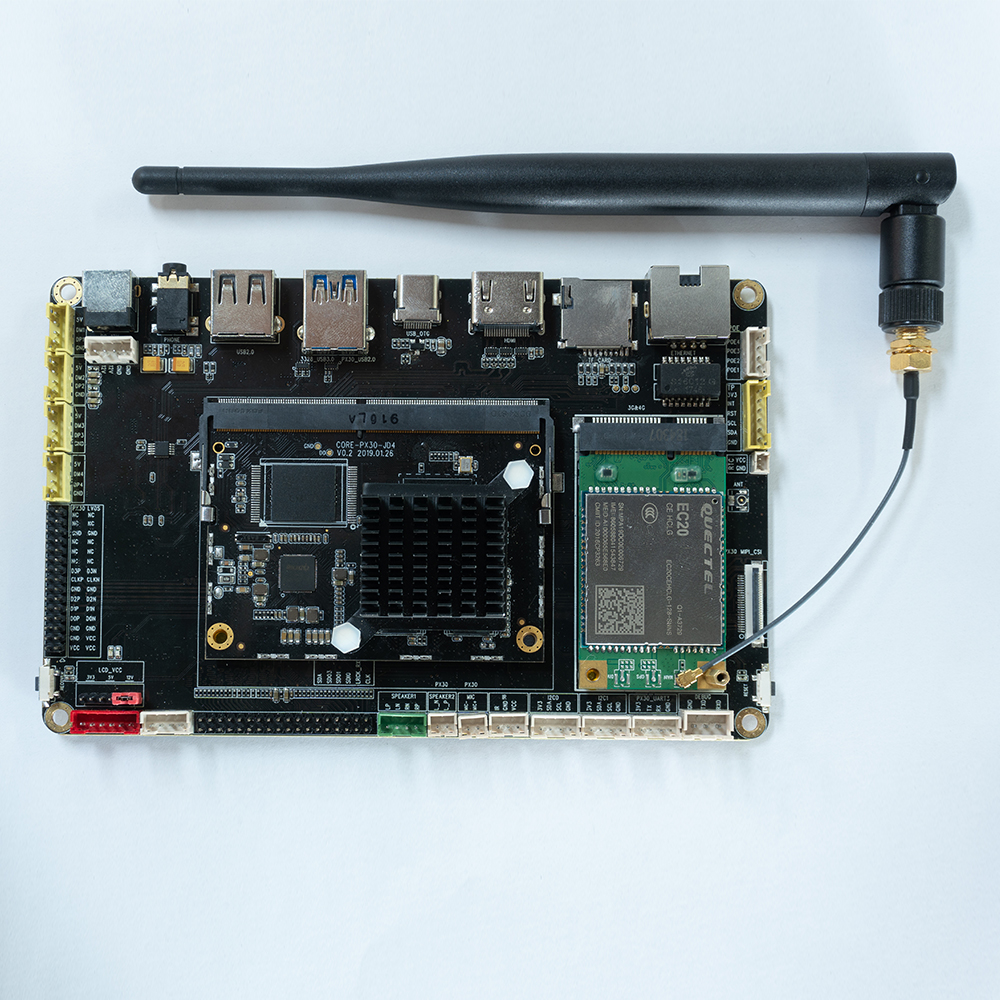

Connection

• USB connection

• MIPI connection

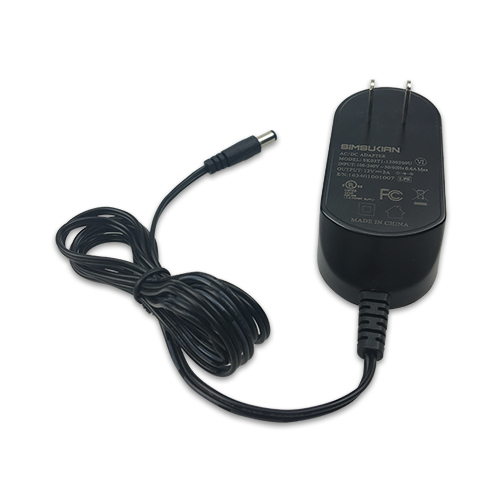

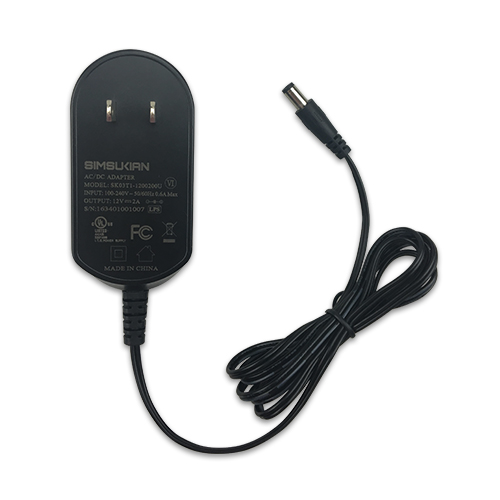

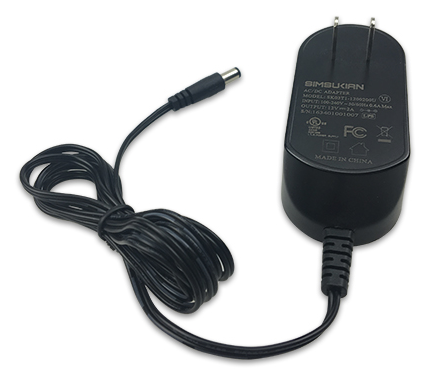

Power adapter

Product parameter

• Product parameter：Power Adapter
• Specifications: EU Standard/US Standard
• Input：AC110-240V 50/60Hz
• Output：12V-2A

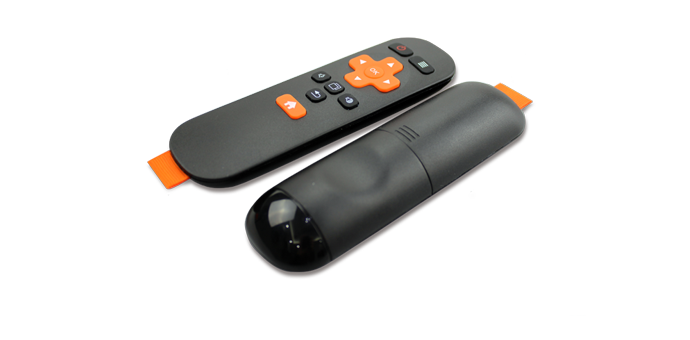

Remote control

Product Parameter

• Product: 12-KEY Remote Control
• Version: Firefly Customized
• Power: 2xAAA Batteries
• Adapter: AIO-PX30-JD4
• Description: Support for remote boot capabilities AIO-PX30-JD4


Key code

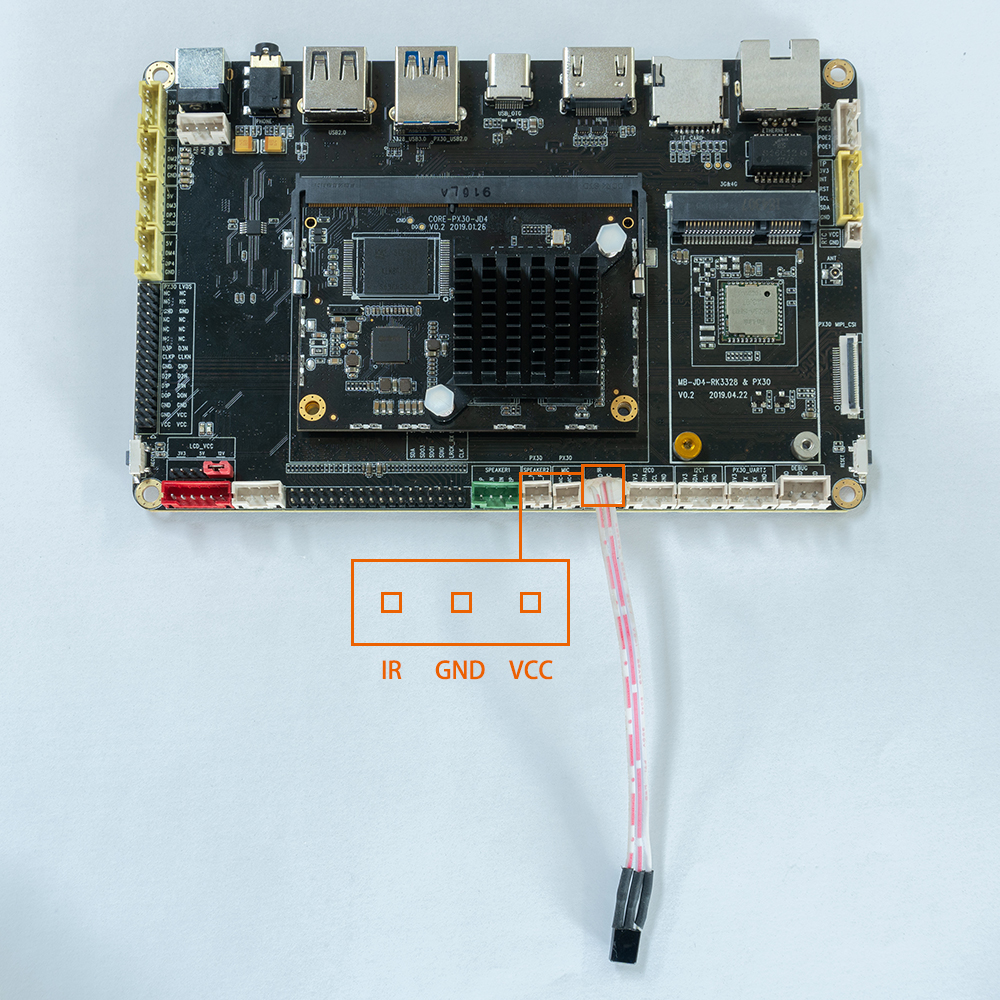

The IR wiring position of the AIO-PX30-JD4 is shown in the red box below:

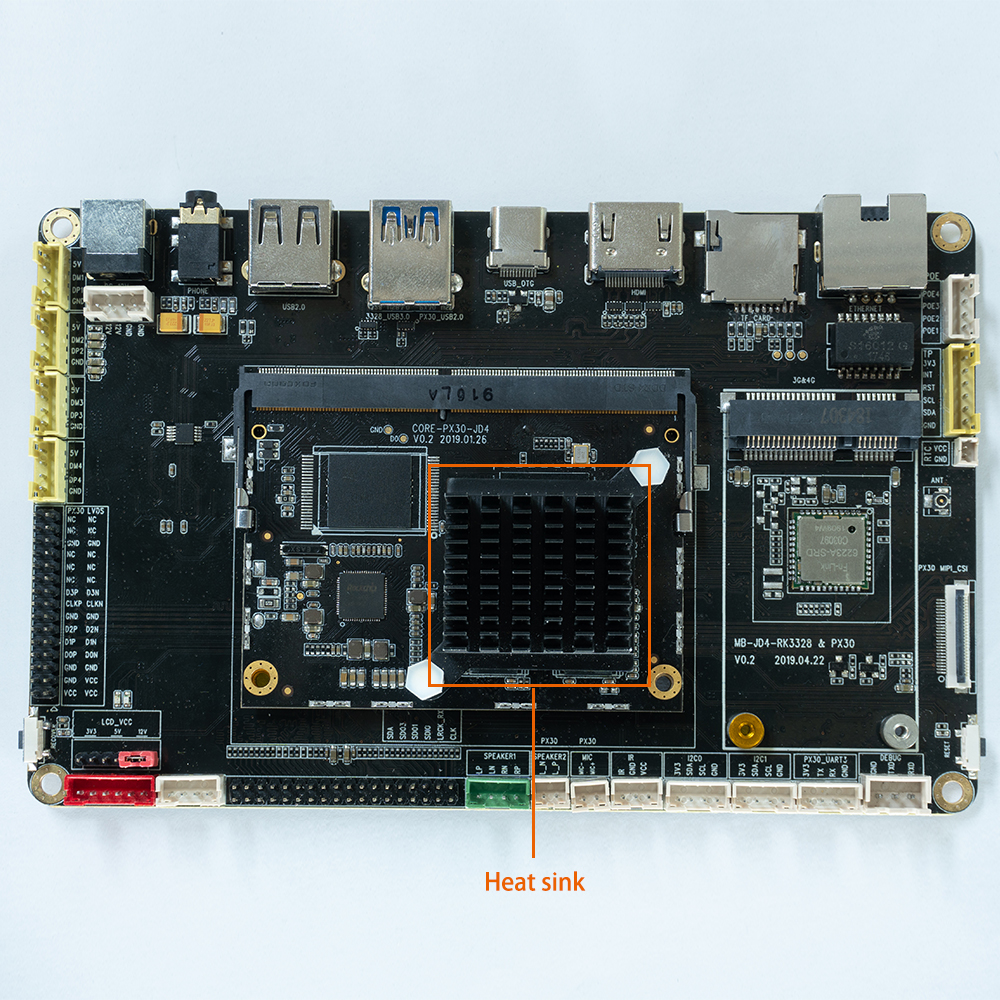

Aluminum heat sink

Product parameters

• Adaptation: AIO-PX30-JD4
• size: 43mm (L)* 39.5mm(W)*11mm(H)

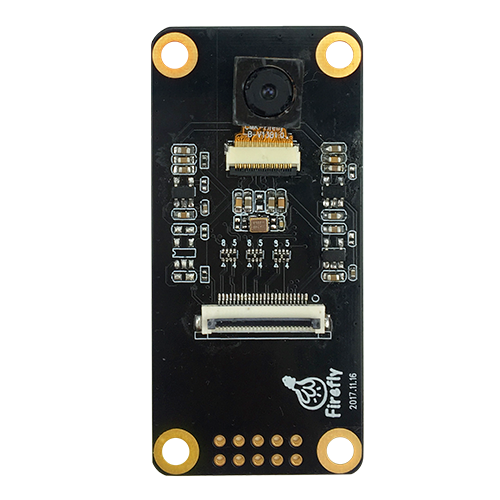

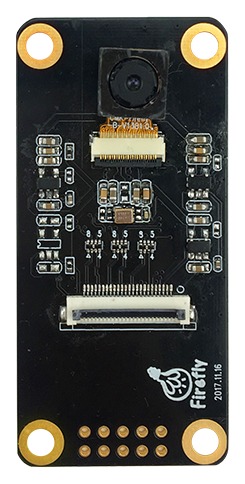

OV13850 Camera Moudle

Product Parameter

• Brand：Omnivision
• Model：OV13850
• Interface：MIPI
• Pixels：1320W

Firmware follow

• cMK-OV13850 camera module is supported by default in the public firmware

Datasheet

• DataSheet and schematic of OV13850 Camera Module

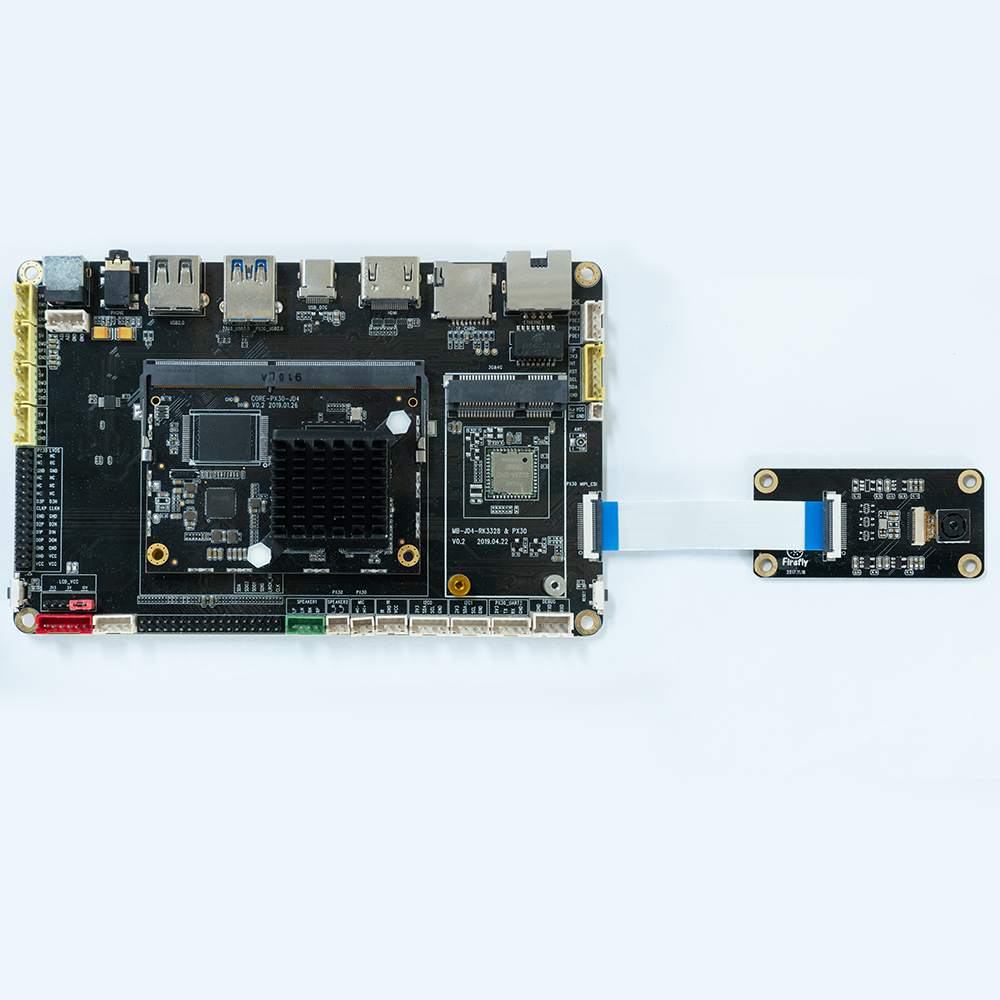

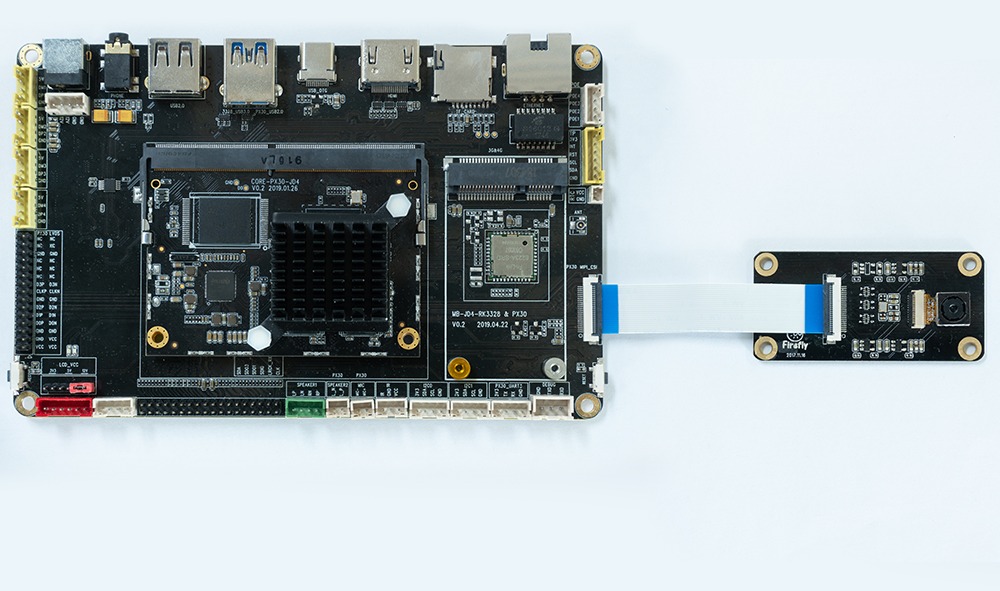

Connection

Renderings

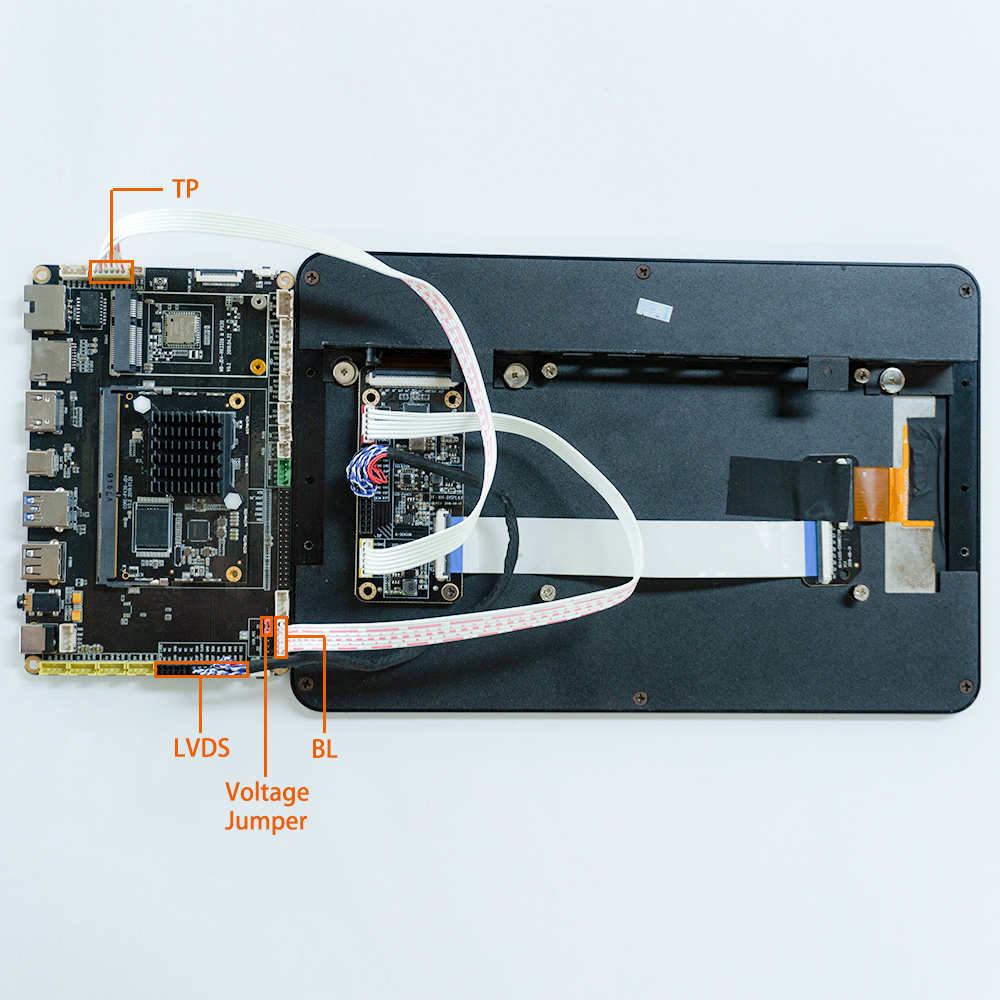

LVDS display module

Product parameters

• Brand: Firefly
• Model: HSX101H40C
• Size: 10.1 inch
• Resolution: 1280x800
• Interface: LVDS
• Visual angle: 170°
• Touch screen: Multi-touch capacitive

Reference materials

• Datasheet&Schematic

Reference firmware

Note: The official firmware name supporting 10.1 inch screen has the word "LVDS". The following is the firmware link:

• Firmware link


Compile command

Use the following command when compiling the supported 10.1 inch screen firmware with the official website SDK:

./FFTools/make.sh -j8 -d px30-firefly-aiojd4-lvds -l px30_evb-userdebug
./FFTools/mkupdate/mkupdate.sh -l px30_evb-userdebug
