Interface definition

Interface definition of the whole machine

AIO-3588SG provides rich interfaces, including:

• 1 x Display Port1.4 (Max output support 8K@30Hz)
• 1 x USB3.0 OTG(Type-C)
• 2 x MIPI-DSI
• 1 x EDP
• 1 x MIPI-CSI
• 1 x MIPI-D/CPHY-CSI
• 1 x TF Card
• 1 x USB3.0
• 1 x USB2.0(One USB2.0 are led by a 40-pin pin row)
• 1 x WIFI (Support wifi6)
• 1 x Bluetooth
• 1 x FAN
• 2 x RJ45 (Suport 1Gbps)
• 1 x Speaker

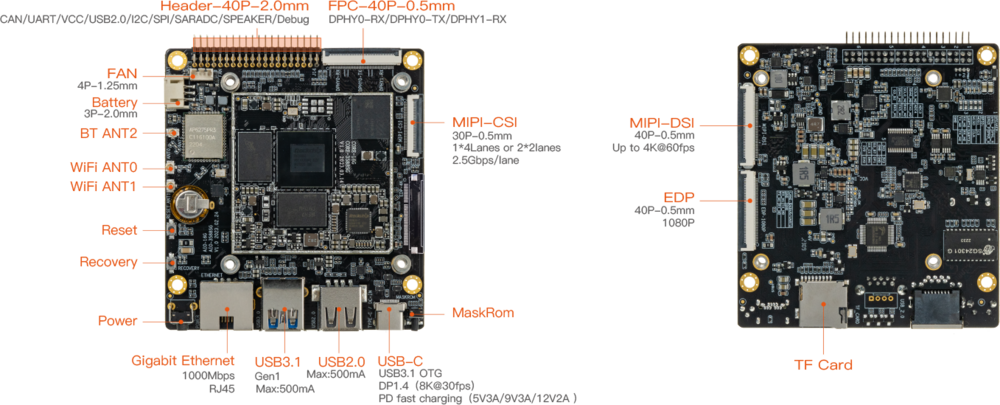

The details are shown below：
