Serial Port DeBug

Hardware Connection

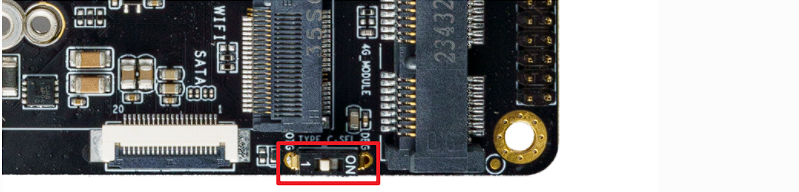

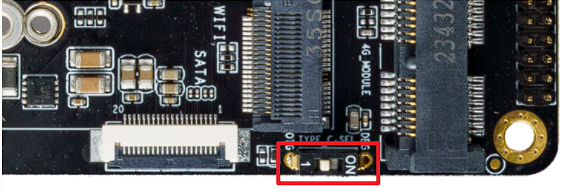

onnect the device "Typec" and the computer. AIO-3588JD4 Typec has two functions (serial port/OTG upgrade) controlled by the dip switch. Please turn the dip switch to "DBG" when debug.

Serial Parameters

• Baud rate: 1500000
• Data bit: 8
• Stop bit: 1
• Parity check: none
• Flow control: none
