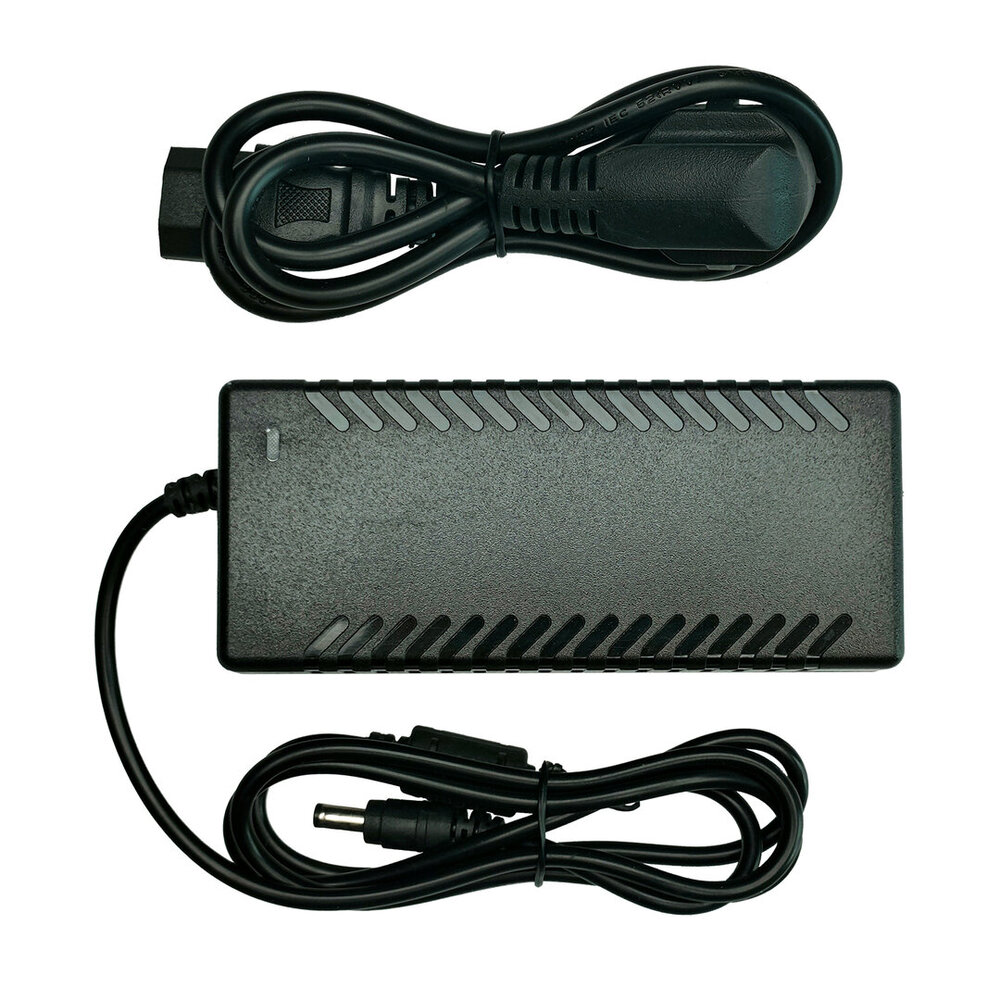

Power adapter

Product parameter

• Product parameter：Power Adapter
• Model：HHT108A-120700
• Input：AC100-240V1.8A 50/60Hz
• Output：DC12V-7A

Note： ITX-3588J normal operation of the fusioncube requires 12V/7A power supply. If the current is lower than 7A, abnormal restart may occur. To ensure normal operation of the development board, please use a power supply with 12V and 7A current.


Other power adapter

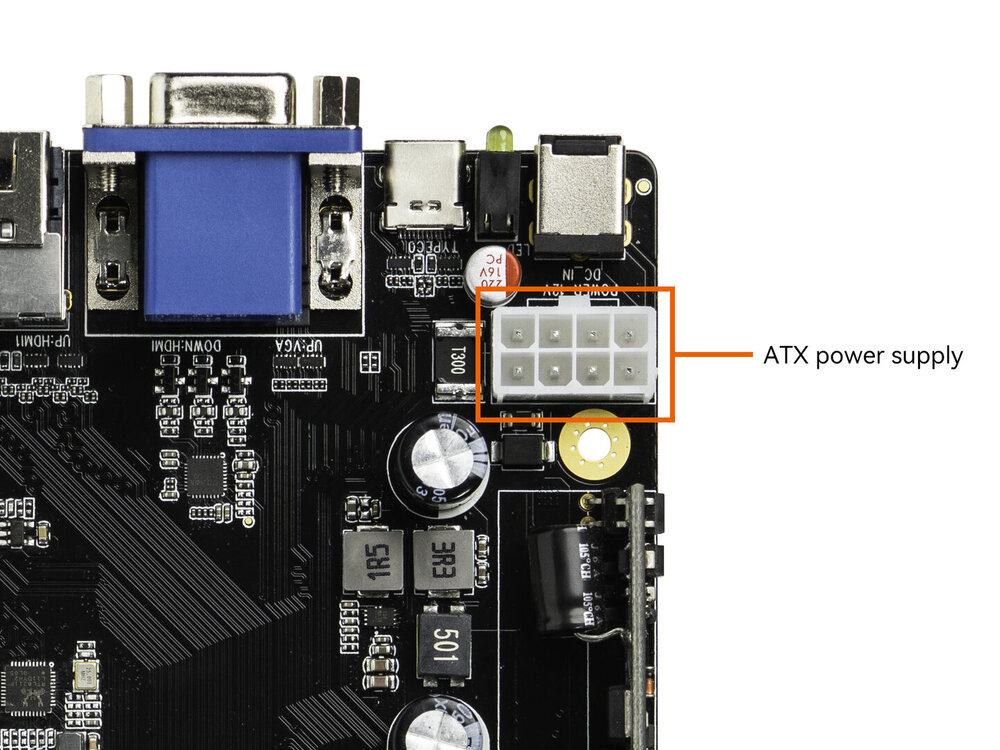

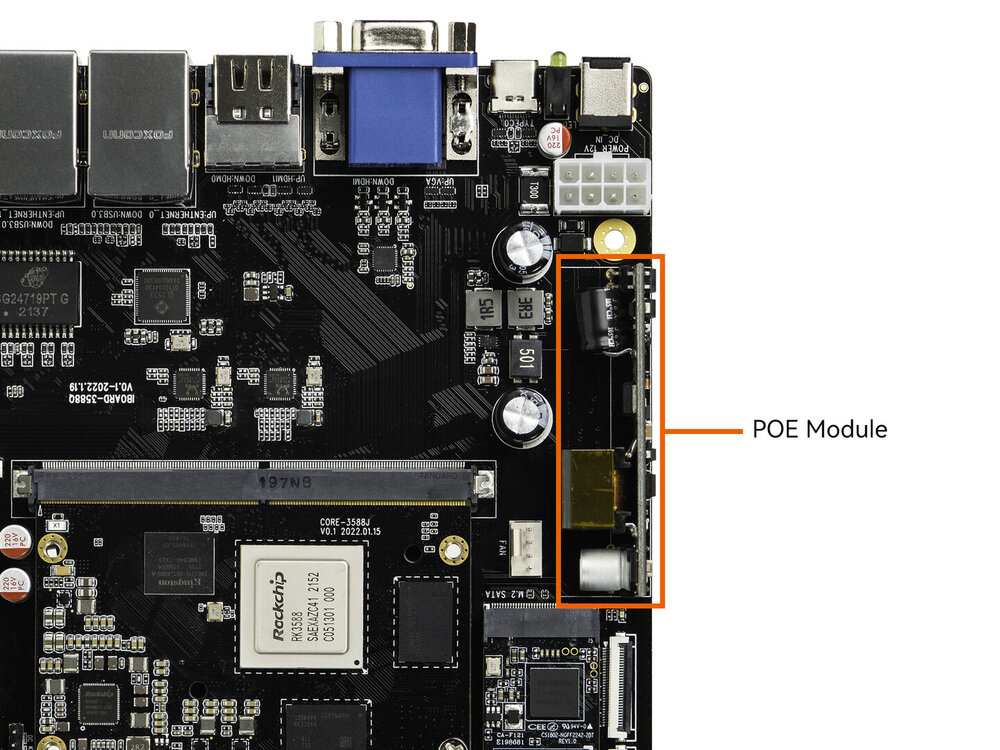

ITX-3588J in addition to using the 12V power adapter, you can also choose ATX power port or POE(maximum output power 60W) power source input, interface diagram:
