Interface definition
Interface definition of the whole machine
ITX-3588J V1.3 provides rich interfaces, including:
- 1 x HDMI2.1 (Max output support 8K@60Hz)
- 1 x HDMI2.0
- 1 x HDMIIN2.0 (Max input support 4K@60Hz)
- 1 x Display Port1.4 (Max output support 8K@30Hz)
- 1 x USB3.0 OTG(Type-C)
- 1 x VGA
- 2 x MIPI-DSI
- 1 x MIPI-CSI
- 4 x SATA3.0
- 1 x M.2(SATA3.0)
- 1 x PCIe3.0x4
- 1 x TF Card
- 1 x 4G LTE
- 1 x 5G Mobile Network
- 1 x SIM 卡槽
- 4 x USB3.0
- 4 x USB2.0
- 1 x WIFI (Support wifi6）)
- 1 x Bluetooth
- 1 x FAN (V1.1 version and subsequent versions is 4 PIN, controlled by PWM, ADC detection access)
- 2 x RJ45 (Suport 1Gbps)
- 1 x Speaker
- 1 x Line-In
- 1 x RS485
- 1 x RS232
- 1 x CAN (V1.1 version added, H and L markings reversed, and screen printing correct for V1.2 and subsequent versions)
- Multiple power input interfaces

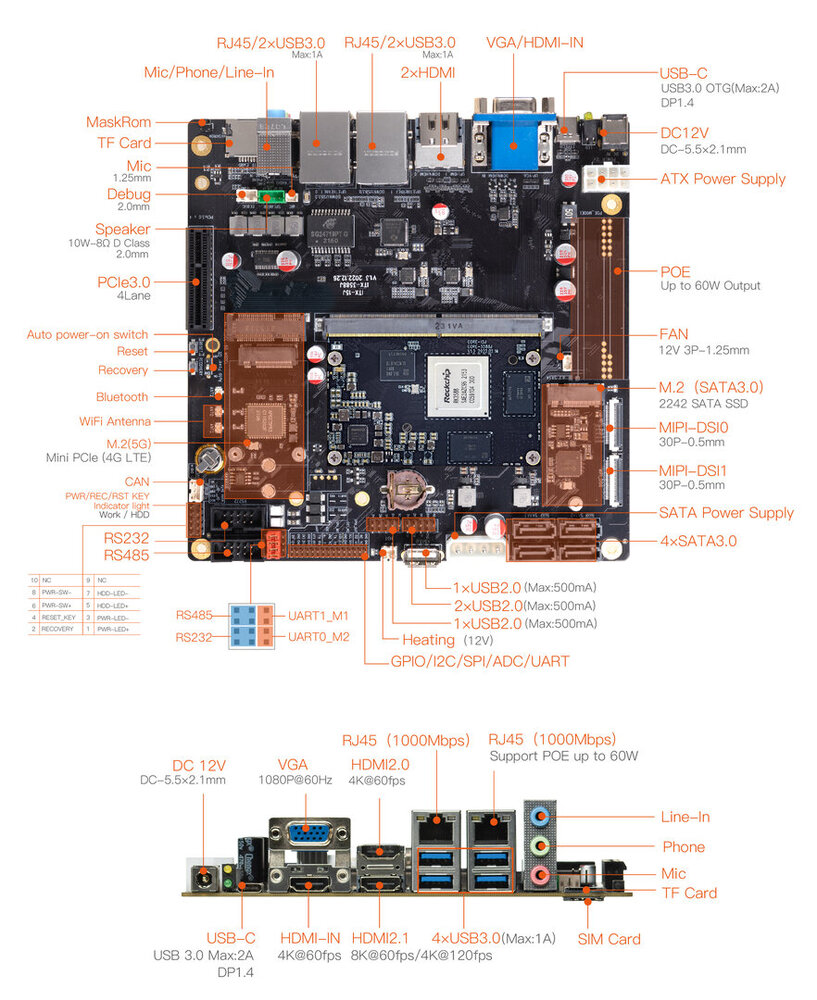

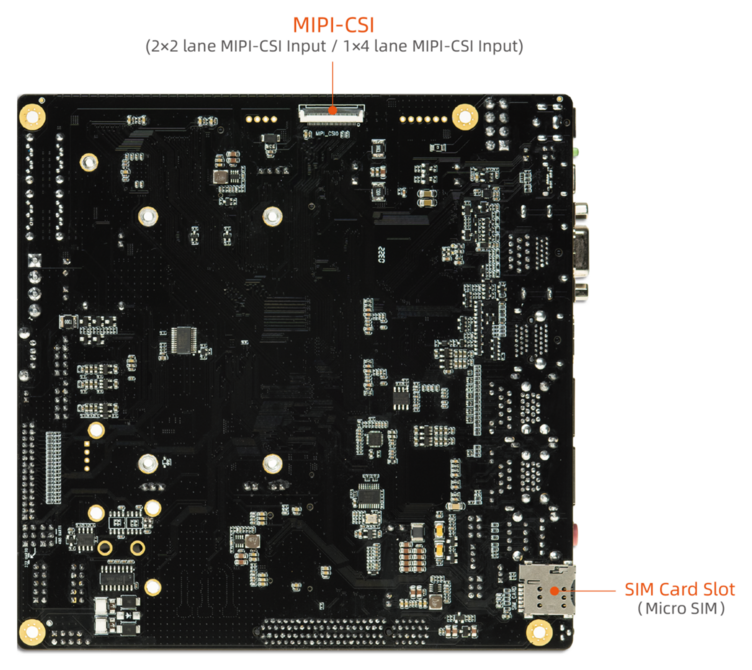

The details are shown below：
