Introduction

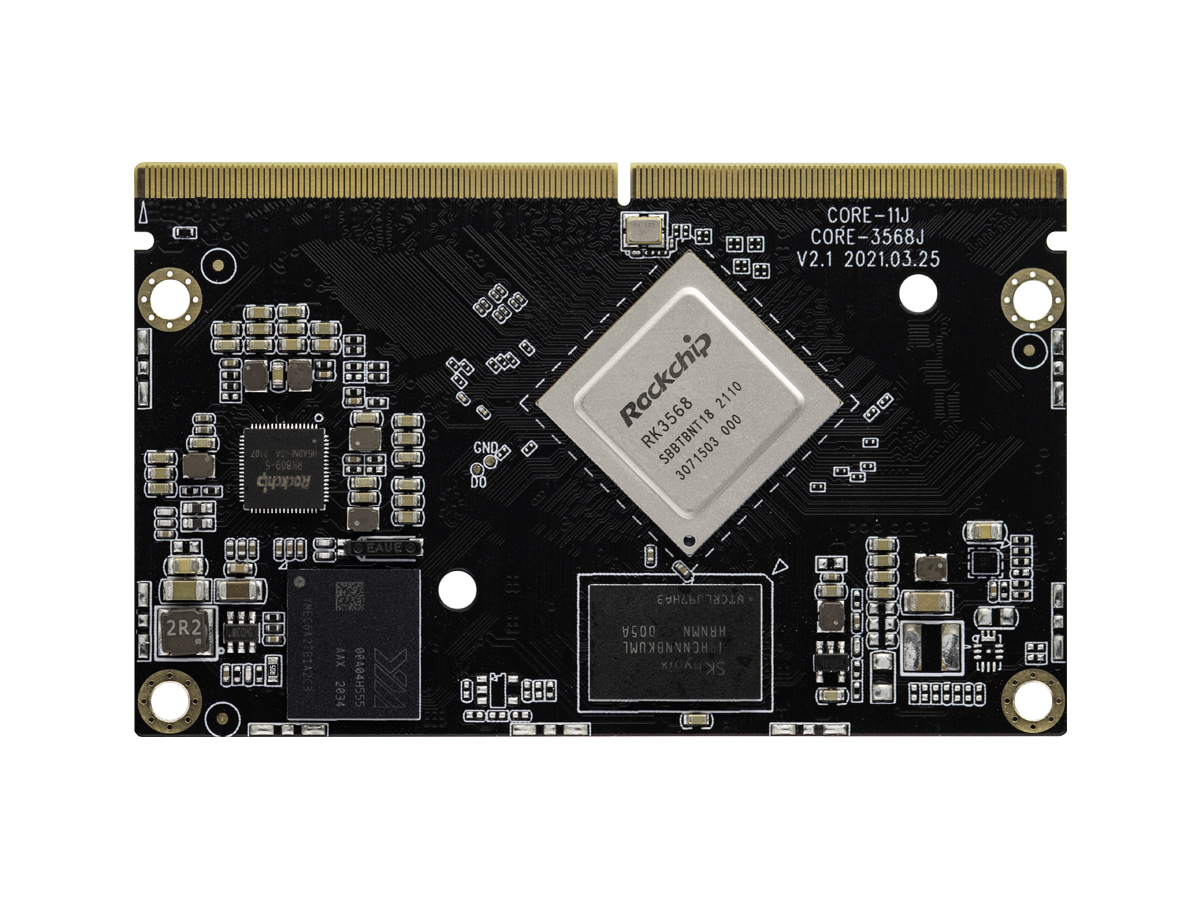

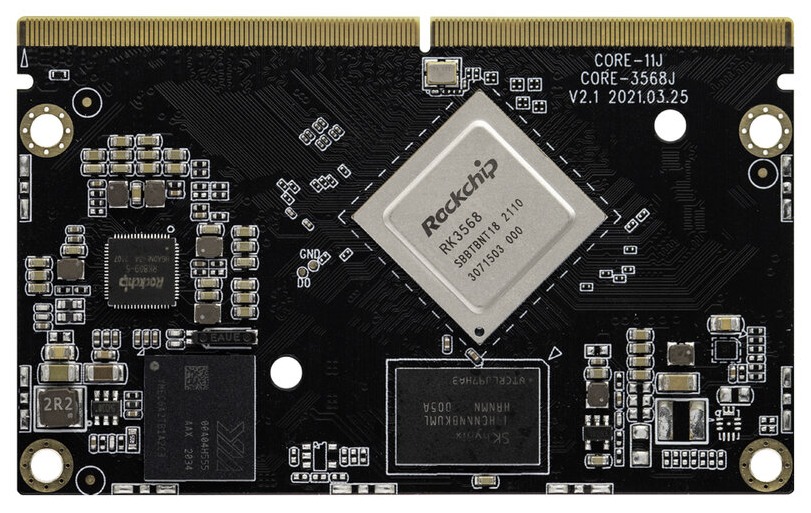

Core-3568J uses RK3568 quad-core 64-bit Cortex-A55 processor, with 22nm lithography process, has frequency up to 2.0GHz, with dual-core GPU and high-performance NPU, supporting up to 8G RAM. It supports WiFi 6, 5G/4G and other high-speed wireless network communications. Having different video input and output interfaces, it is suitable for scenarios such as smart NVR, cloud terminal, IoT gateway and industrial control

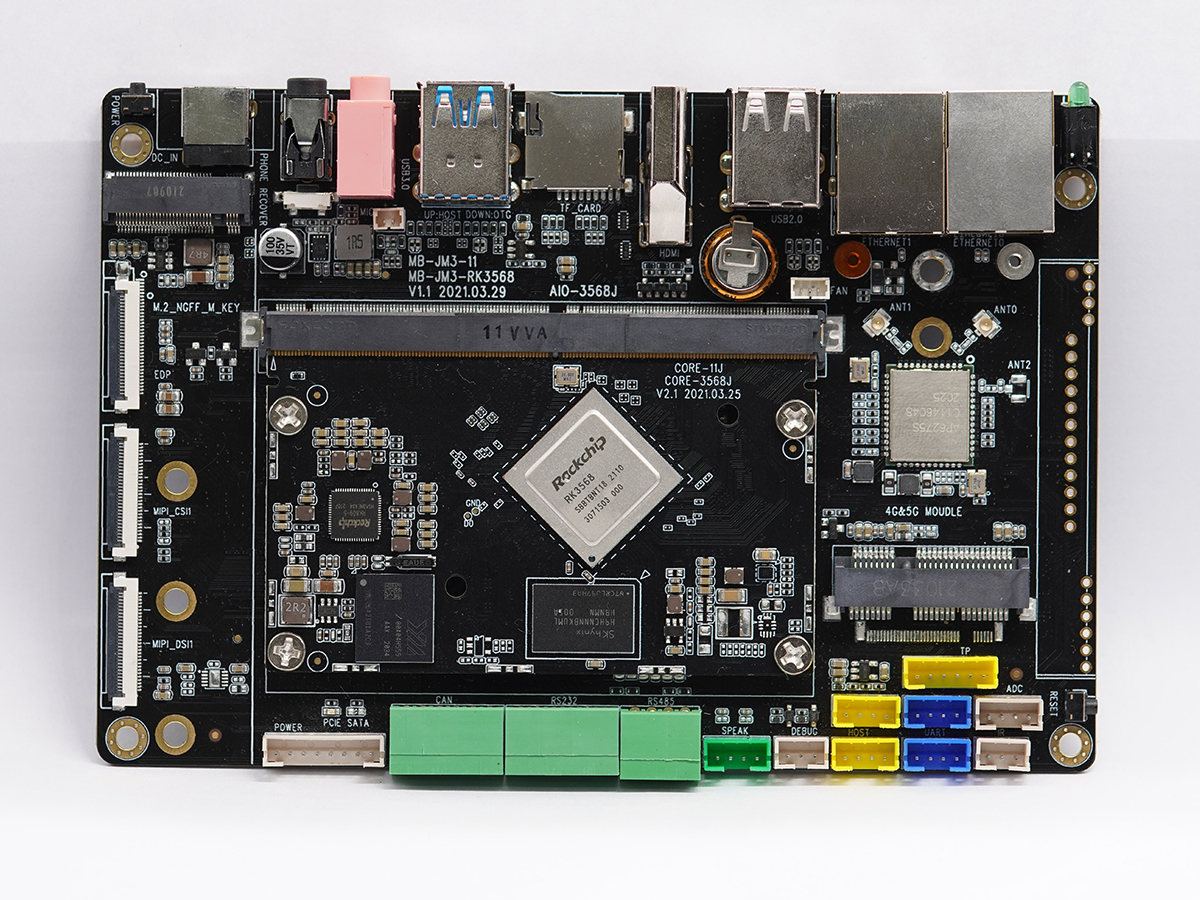

AIO-3568J is a Quad-Core High-Performance AI Mainboard，composed of core board Core-3568J + mother board MB-JM3-RK3568, equipped with interfaces such as RGMII, PCIE3.0, USB3.0, I2C, SPI, UART, GPIO, MIPI-DSI, it can be directly used in various intelligent products to facilitate the completion of products

The standard package of AIO-3568J includes the following accessories(for reference only):

• Core-3568J main board ×1
• Brass antenna ×2
• MB-JM3-RK3568 motherboard ×1
• 12V-2A Power adapter ×1
• Dual male USB data cable ×1

Other optional accessories:

• Firefly Serial Module

In addition, you may need the following accessories during use:

• Display device
  • Monitor or TV with HDMI interface and HDMI cable
• Network
  • 100M/1000M Ethernet cable, and wired router
  • WiFi router
• Input devices
  • USB wire/wireless mouse/keyboard
  • Infrared remote control (need to connect to the infrared receiver)
• Firmware upgrade and debugging
  • Dual male usb data cable
  • Serial port to serial adapter
