Screen module

DM-M10R800 V2 MIPI module

Product parameters

• model: M101014_BE45_A1
• size: 10.1 inch
• resolution: 800x1280
• display interface: MIPI
• panel material: IPS panel
• visual Angle: 160°
• touch screen: multi-point capacitive touch

Refer to the firmware

The official firmware name supporting the 10.1 screen has the word MIPI. Below is the link to the firmware: Dual MIPI Firmware link

Note:
Because RK3566 Dual screen Display uses the same internal input Source, that is, VOP is the Same Source, Dual Display, so if MIPI screen is used as the main screen, the HDMI screen of the secondary screen will stretch, so if you want to avoid this problem. Both the primary and secondary screens should be in the same direction (horizontal and vertical) with the same resolution.

Compile command

./FFTools/make.sh -d rk3566-firefly-aiojd4-mipi101_M101014_BE45_A1 -j8 -l rk3566_firefly_aiojd4_mipi-userdebug
./FFTools/mkupdate/mkupdate.sh -l rk3566_firefly_aiojd4_mipi-userdebug

Reference data

[schematic of screen module Datasheet& adapter board]

Real figure

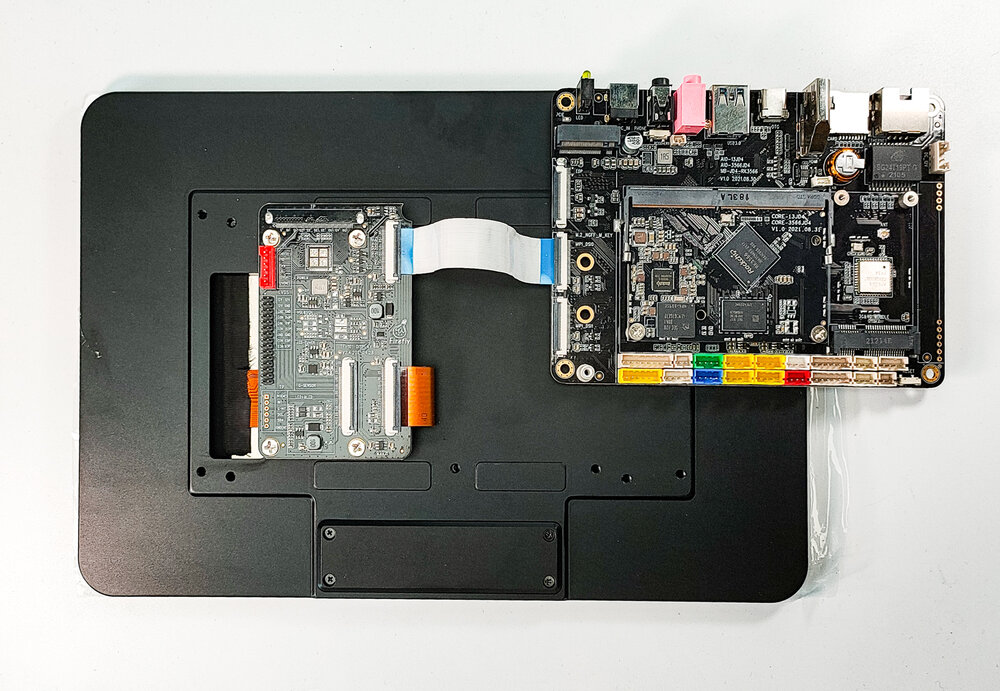

Front

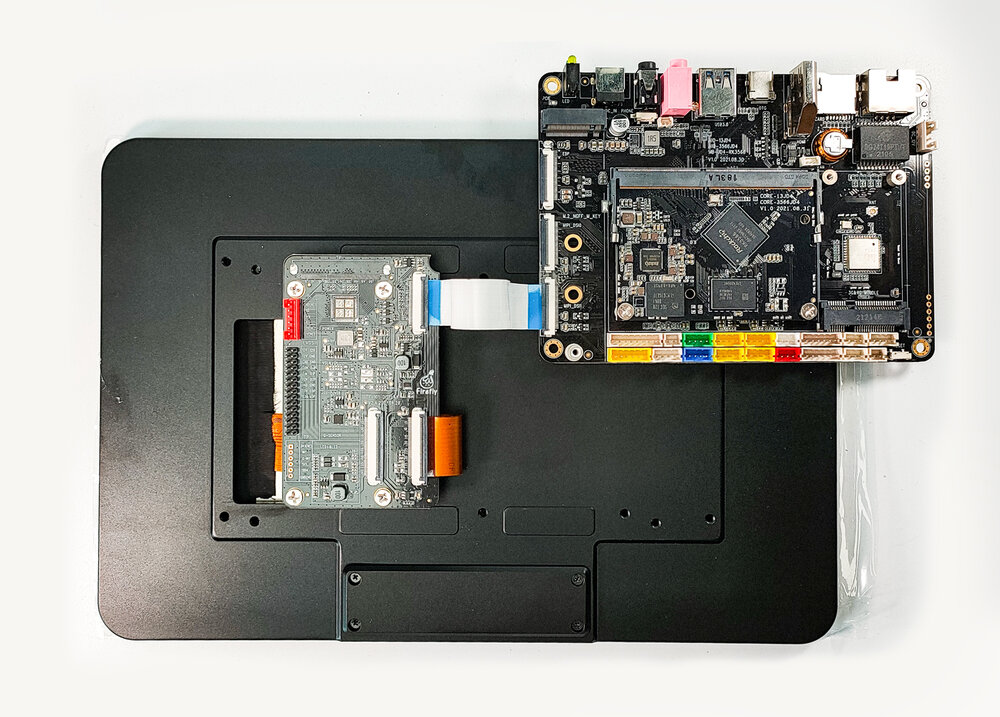

• MIPI DSI0
• MIPI DSI1
