product description

Six-core 64-bit high-performance core board

Core-3399-JD4 core board uses Rockchip high-performance six-core 64-bit processor RK3399, onboard AI neural network processor NPU SPR5801S, high computing power, ultra-high performance, powerful hardware decoding capabilities and rich expansion interfaces, It can be flexibly applied to industries such as cluster server, computer vision, and integrated commercial display equipment.

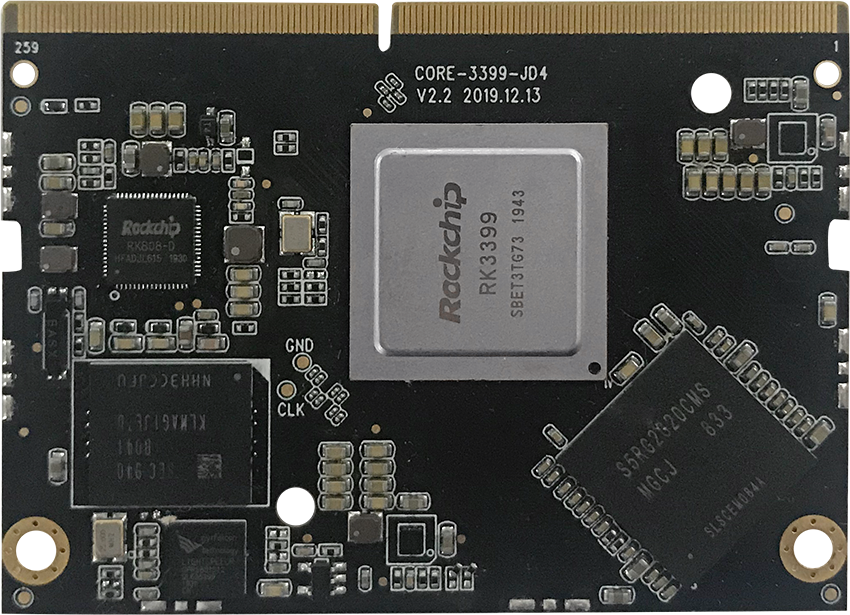

Note: NPU SPR5801S is used for versions above V2.2, SPR2801S for versions below V2.2

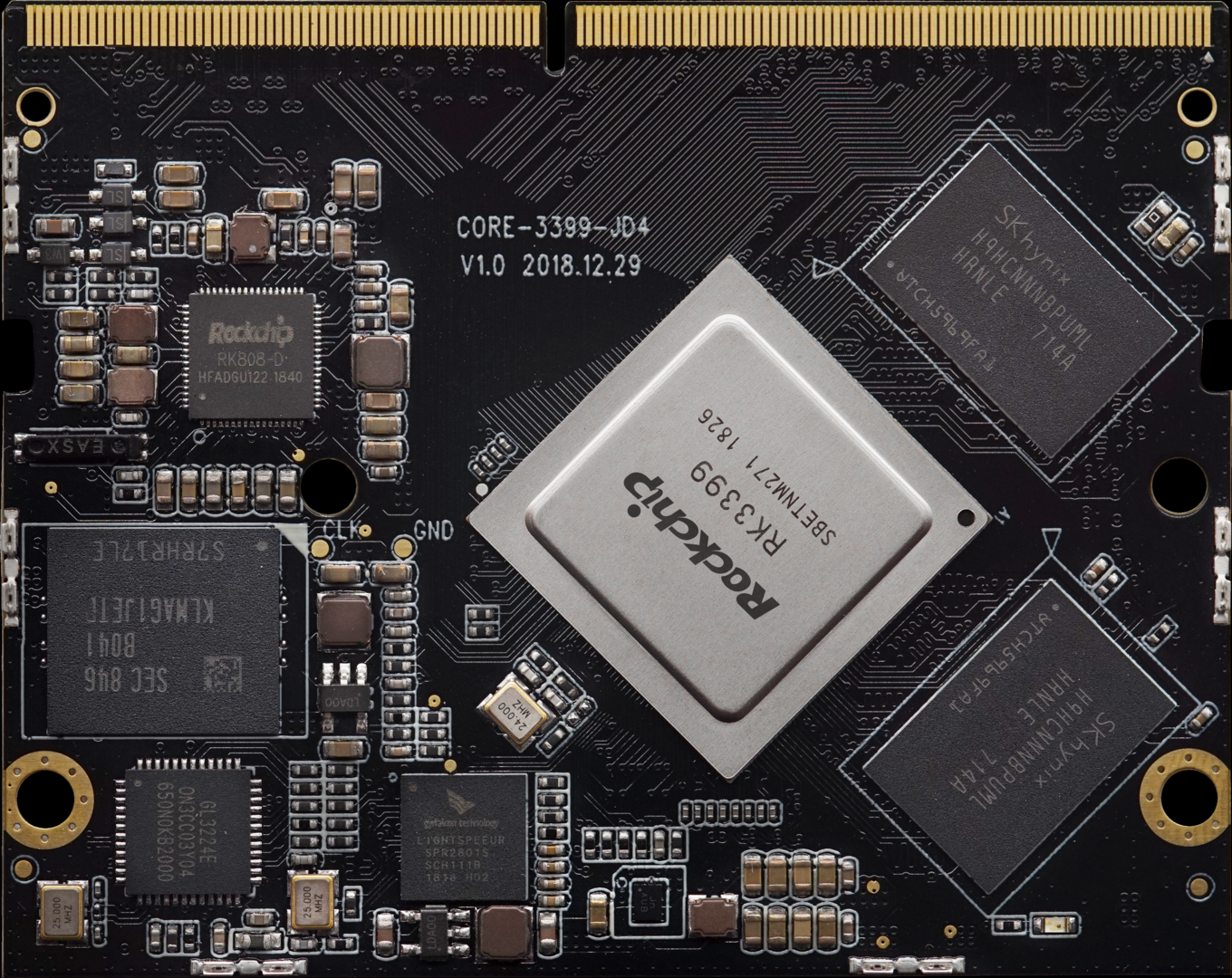

Note: NPU SPR2801S is used for versions below V2.2

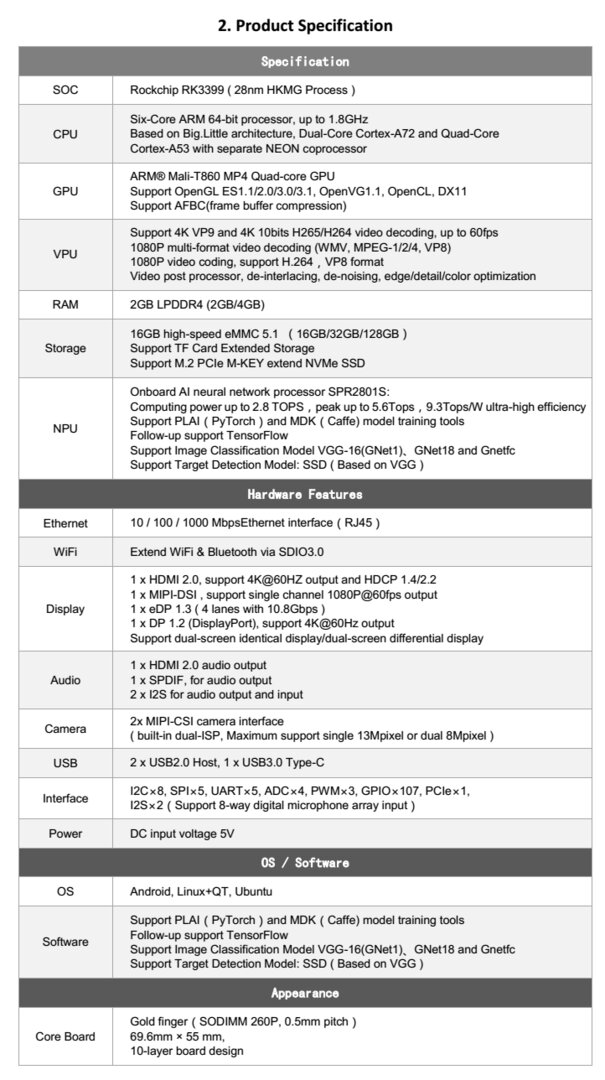

Product parameters

The standard package of AIO-3399JD4 includes the following accessories:

• CORE-3399-JD4 core board
• 1MB-JD4-3399&3399PRO One base plate
• Copper tube antenna×1
• One 12V-2A power adapter
• One male to male USB cable

Other optional accessories are:

• Firefly serial port module

In addition, during use, you may need the following accessories:

• display screen

  • Display or TV with HDMI interface, and HDMI cable

• The internet

  • 100M/1000M Ethernet cable, and wired router
  • WiFi router

• input device

  • USB wireless/wired mouse/keyboard
  • Infrared remote control (need to connect an infrared receiver)

• Upgrade firmware, debug

  • Double male USB data cable
  • Serial to USB adapter

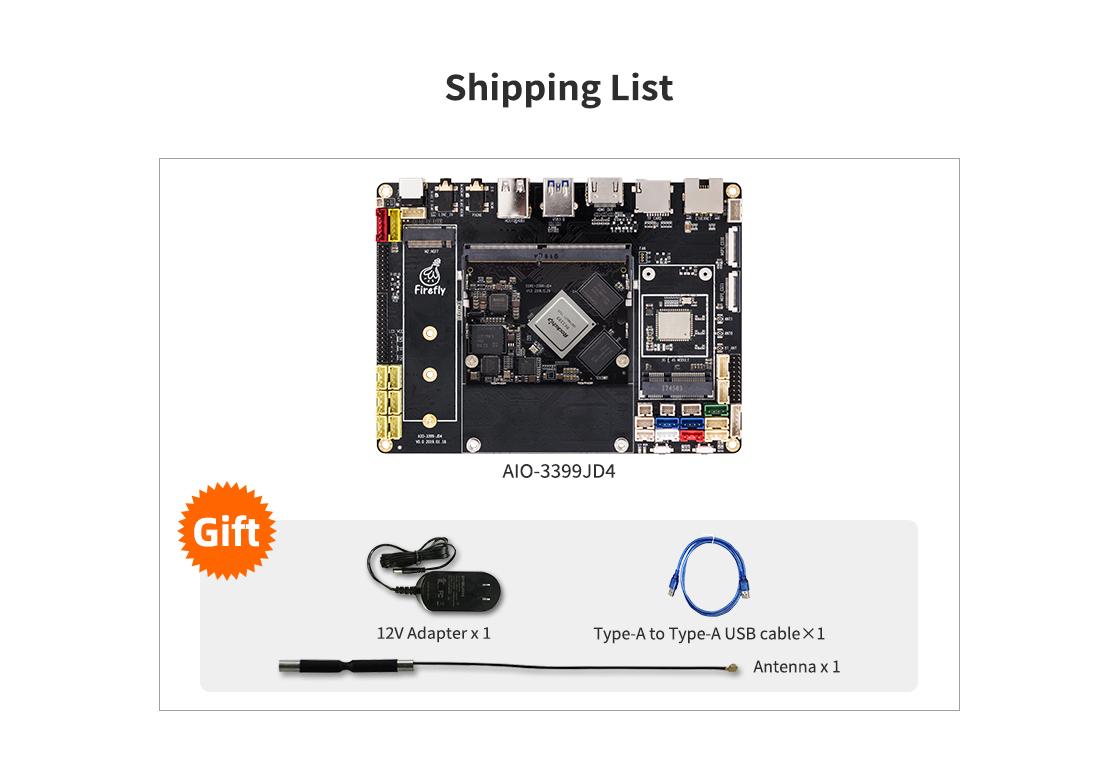

• Shipping list reference
