Camera Module

OV13850 Camera Moudle(Out of production)

Product Parameter

• Brand：Omnivision
• Model：CMK-OV13850
• Interface：MIPI
• Pixels：1320W

Firmware follow

CMK-OV13850 camera module is supported by default in public firmware.

Datasheet

DataSheet and schematic of OV13850 Camera Module.


Connection Method

Renderings

CAM-8MS1M Monocular camera

Product Parameter

• Brand：SV
• ISP：XC7160
• Sensor: SC8238
• Interface: MIPI
• Pixels: 800W(Currently only supports up to 1080P, 4K is still being adapted)

Reference firmware

Public Fimware support CAM-8MS1M camera module by default. If it doesn't work, please update the latest firmware. Android7.1 Download link

Physical map

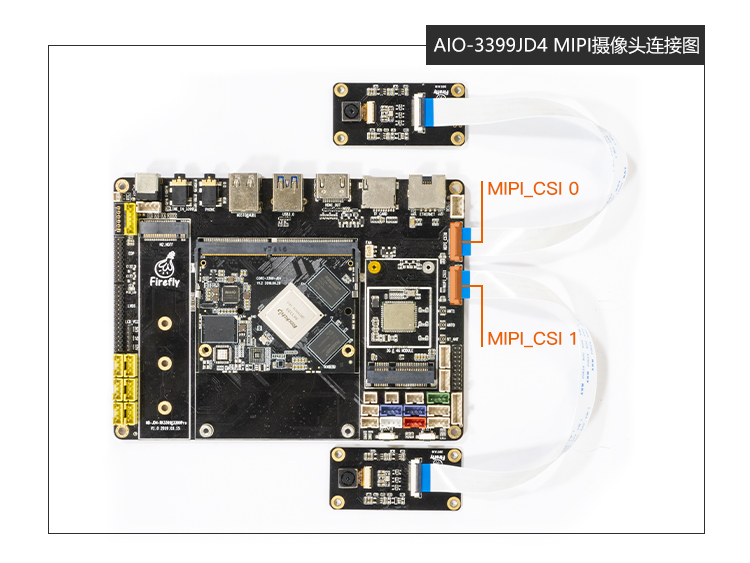

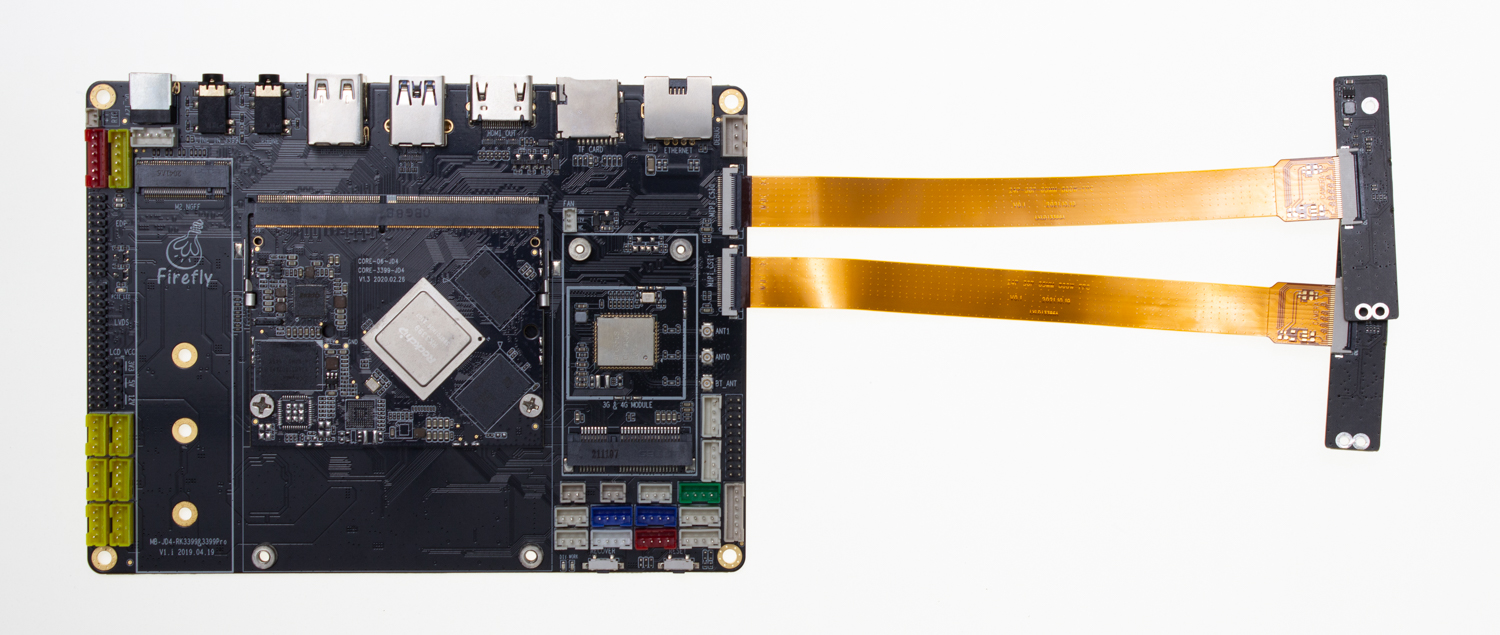

Connection method

Real pictures

SV-TAYSH-TQ Camera module

Product parameters

• Model：XC7022(RGB)/XC6130(IR)

• Interface ：MIPI

• Pixel ：200W

Patch

「 Android 7.1 」device/rockchip/rk3399/rk3399_firefly_aiojd4.mk

 BOARD_NFC_SUPPORT := false
 BOARD_HAS_GPS := false
+BOARD_XC7022_XC6130_SUPPORT := true

 #for 3G/4G modem dongle support
 BOARD_HAVE_DONGLE := false

Modify the above patch and complie Android, then reboot after upgrading system.img.

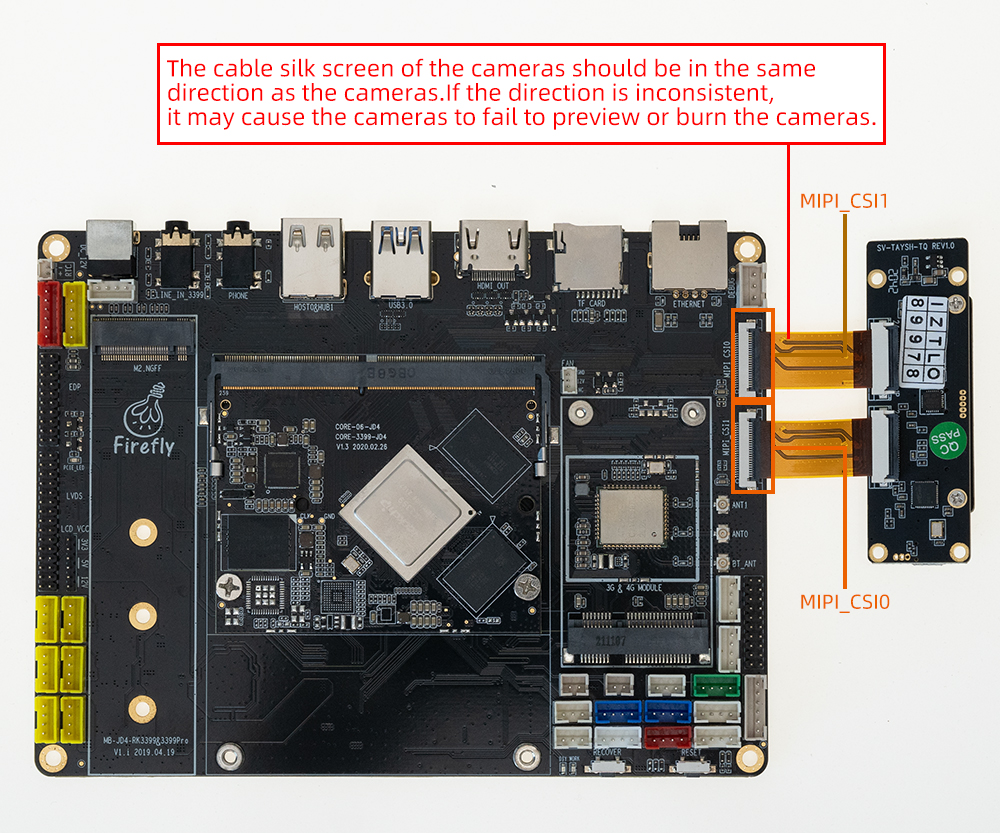

Physical map

Connection method

Real pictures
