Serial Port Module

USB to TTL Serial Port Module

Product Parameters

Brand: Firefly
Size: 25mm*15.5mm

Technical Information

Driver Download: https://www.prolific.com.tw/en/portfolio-item/pl2303gl/

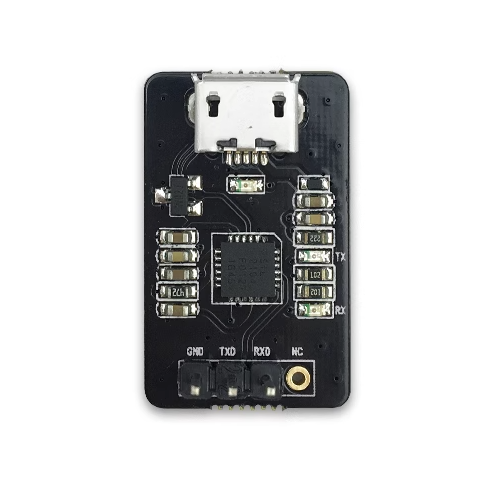

Physical Image

Connection Method

USB to Serial Adapter, with four pins:

3.3V Power (NC), no need to connect
GND, ground line for the serial port, connect to the GND pin of the development board
TXD, output line for the serial port, connect to the TX pin of the development board
RXD, input line for the serial port, connect to the RX pin of the development board

Note: If using another serial adapter and encountering issues with TX and RX not being able to input and output, try swapping the connections of TX and RX.

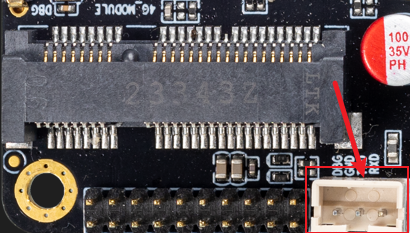

AIO-186JD4 DEBUG Port:
