Interface Definition

Whole Machine Interface Definition

AIO-1688JD4 provides a rich set of interfaces, mainly including:

• 12V power interface
• 2 x USB 3.0
• 2 x Gigabit Ethernet
• WIFI antenna
• Fan interface
• Power button
• Reset button
• Recovery button
• Debug serial port (TTL)
• CAN
• Industrial serial port (RS485, RS232)
• Type-C (USB2.0, debug serial port)
• SIM card slot
• Mini PCIe interface (4G LTE)
• M.2 interface (5G Module)
• NVME interface (PCIE3.0 x 1)
• SATA 3.0
• TF card slot
• Headphone
• RTC
• MIPI CSI
• MIPI DSI
• HDMI 2.0

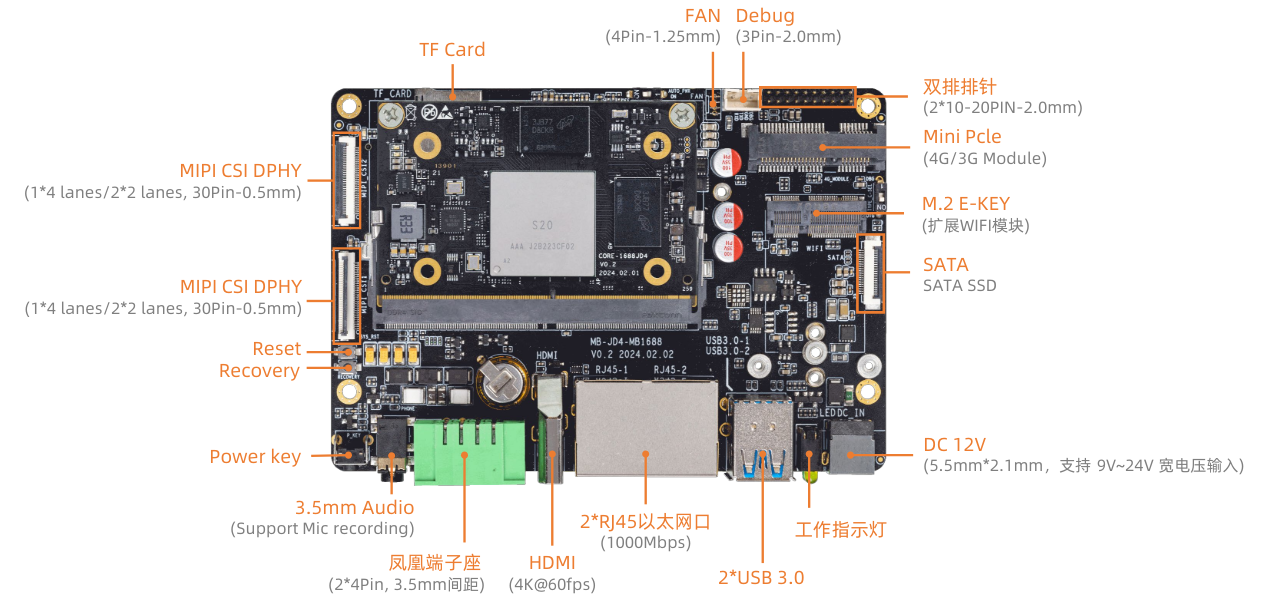

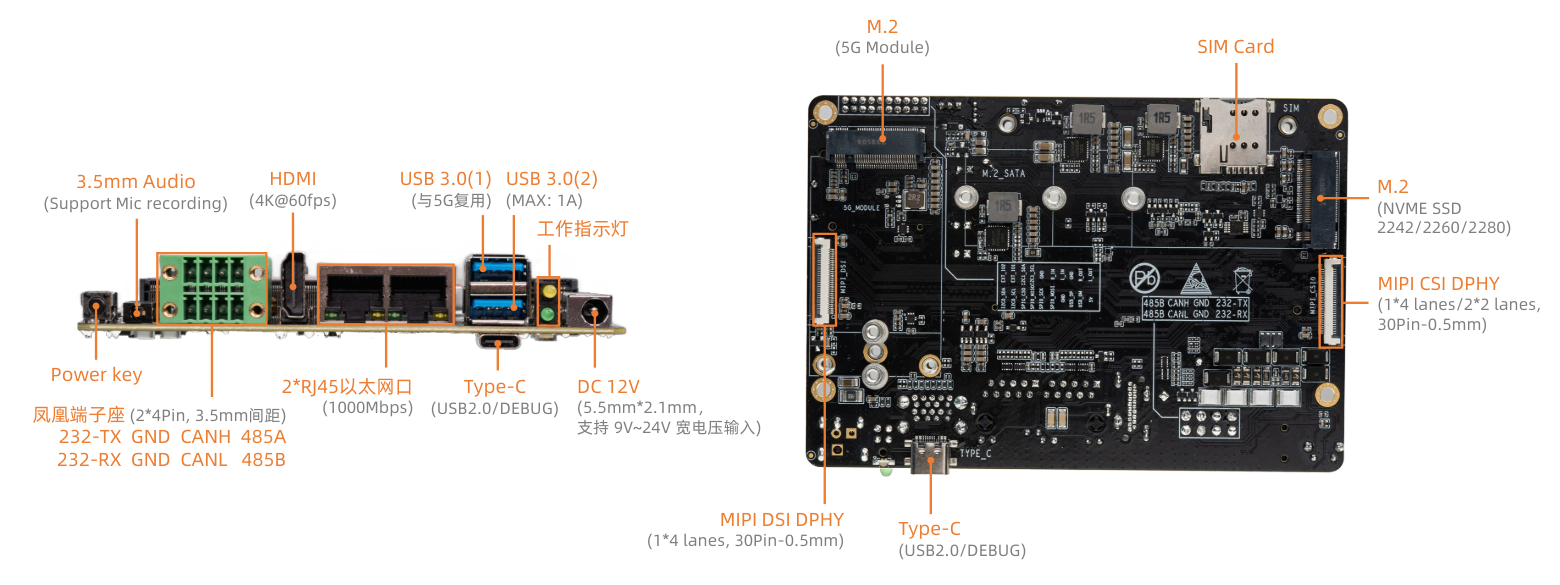

Details are as shown in the pictures below:
