Interface definition

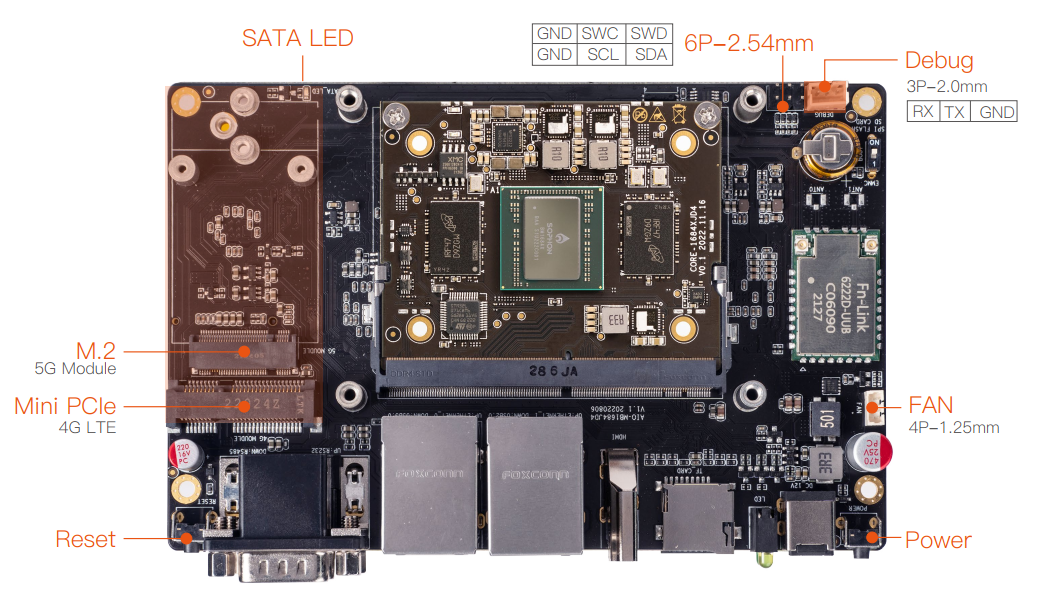

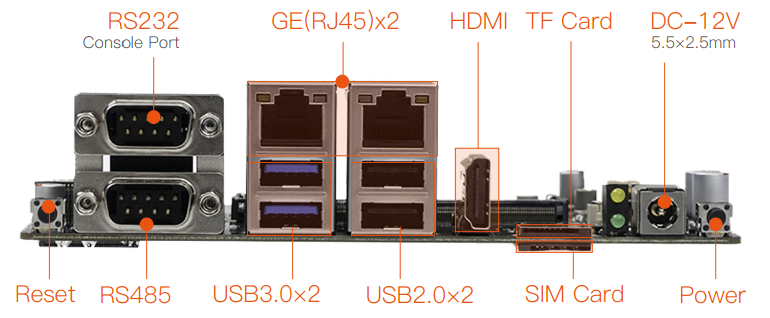

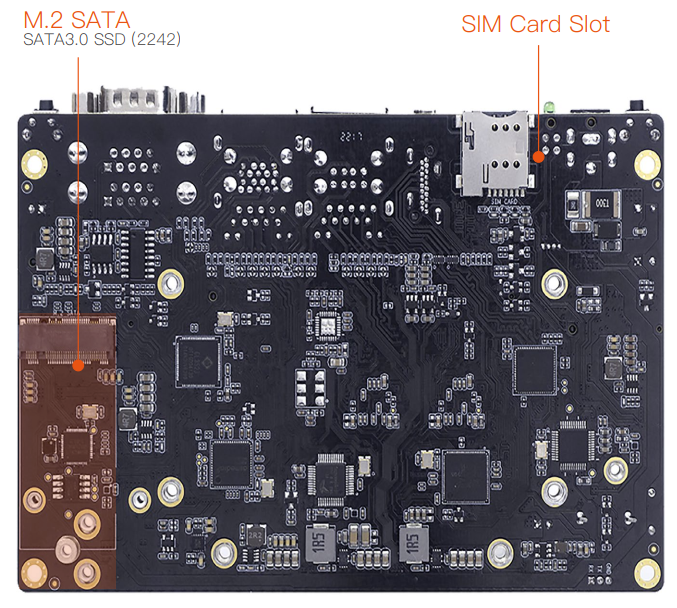

Interface definition of the whole machine

AIO-1684XJD4 provides rich interfaces, including:

• 12V Power interface
• 2 x USB 3.0
• 2 x USB 2.0
• 2 x 1000Mbps Ethernet
• WIFI antenna
• HDMI 1.4
• TF card slot
• SIM card slot
• FAN interface
• Power button
• Reset button
• Debugging serial port
• Industrial serial port (RS485, RS232, TTL)
• Mini PCIe interface (4G LTE)
• M.2 interface (5G Module)
• M.2 SATA interface (SATA3.0 SSD)

The specific details are as follows:

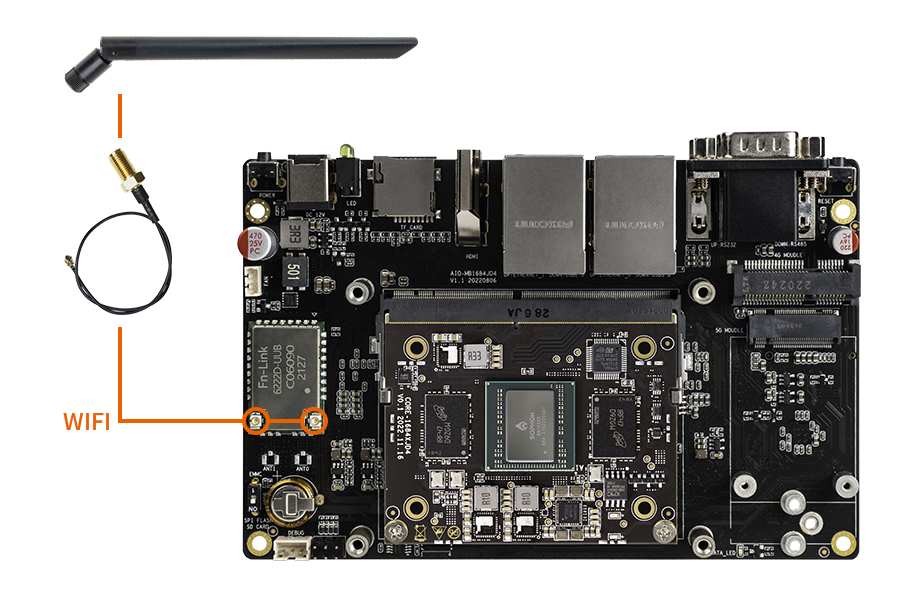

WiFi Antenna Connection

Antenna Specifications: Stick Antenna 5dB; Flat Head

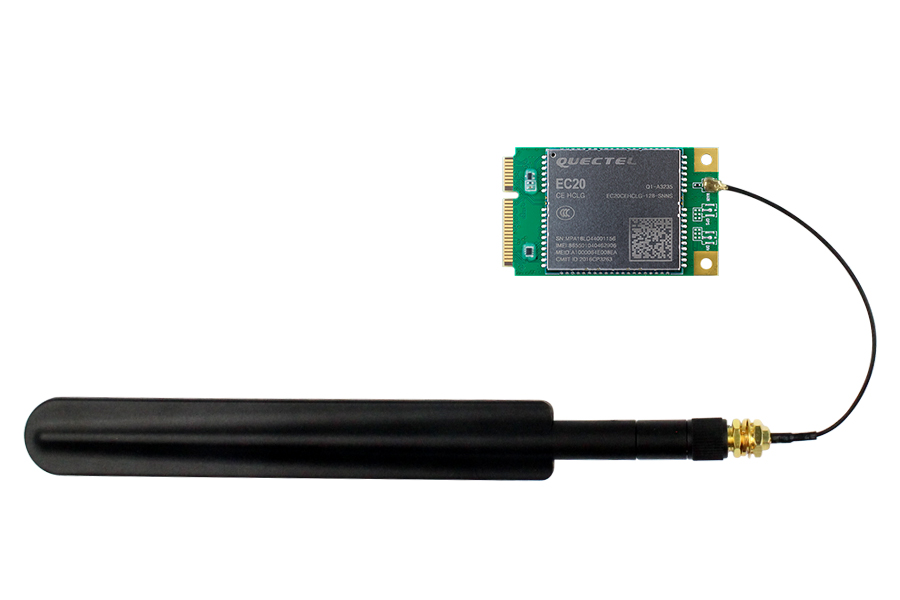

4G Module Antenna Connection

Antenna Specifications: Stick Antenna 4GLTE-5dB; Round Head

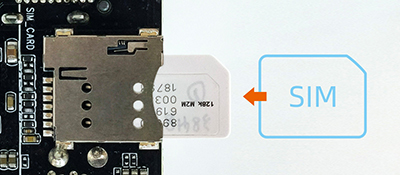

SIM Card Connection

UART Pinout
