Interface definition

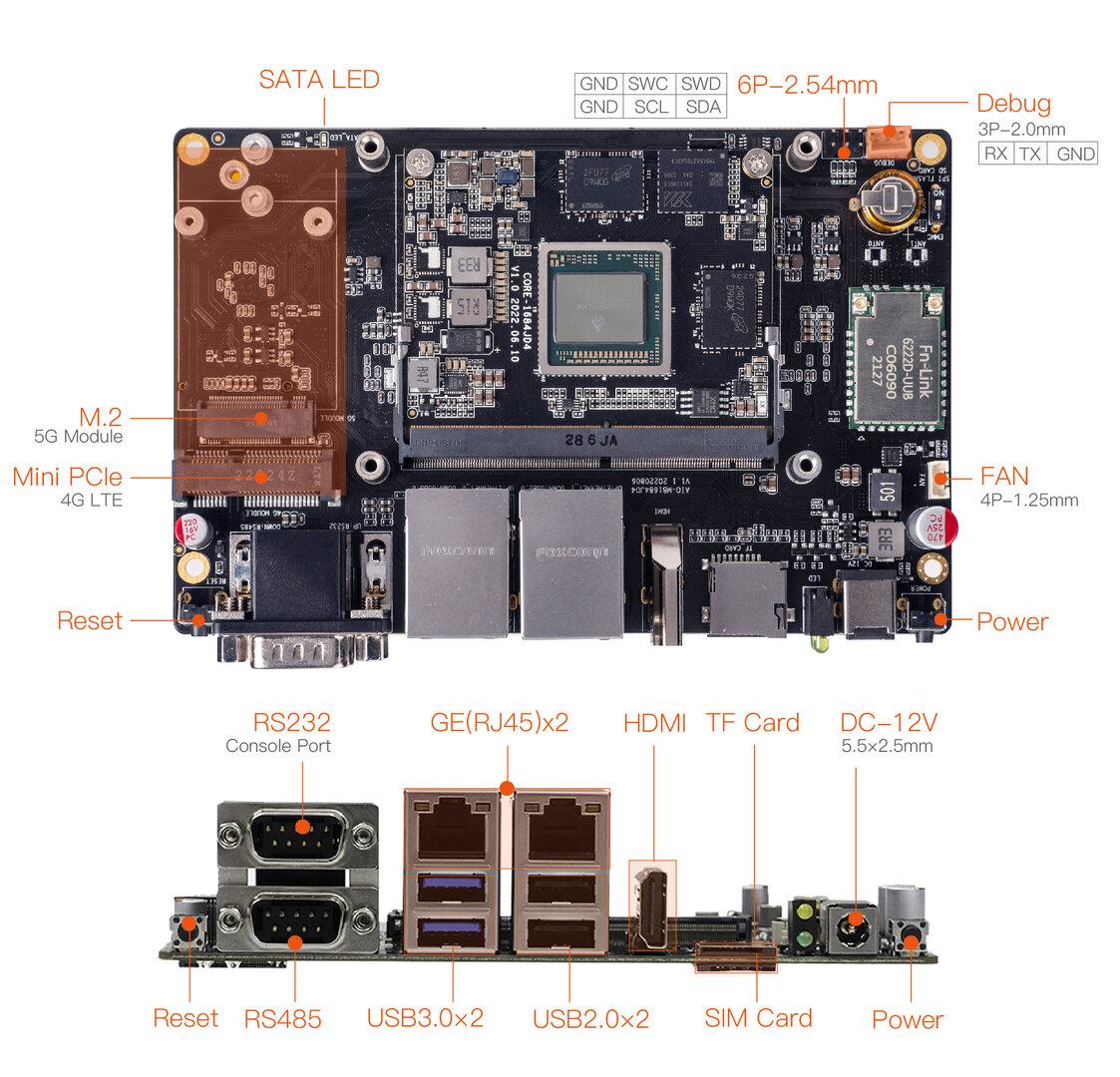

Interface definition of the whole machine

AIO-1684JD4 provides rich interfaces, including:

• 12V Power interface
• 2 x USB 3.0
• 2 x USB 2.0
• 2 x 1000Mbps Ethernet
• WIFI antenna
• HDMI 1.4
• TF card slot
• SIM card slot
• FAN interface
• Power button
• Reset button
• Debugging serial port
• Industrial serial port (RS485, RS232, TTL)
• Mini PCIe interface (4G LTE)
• M.2 interface (5G Module)

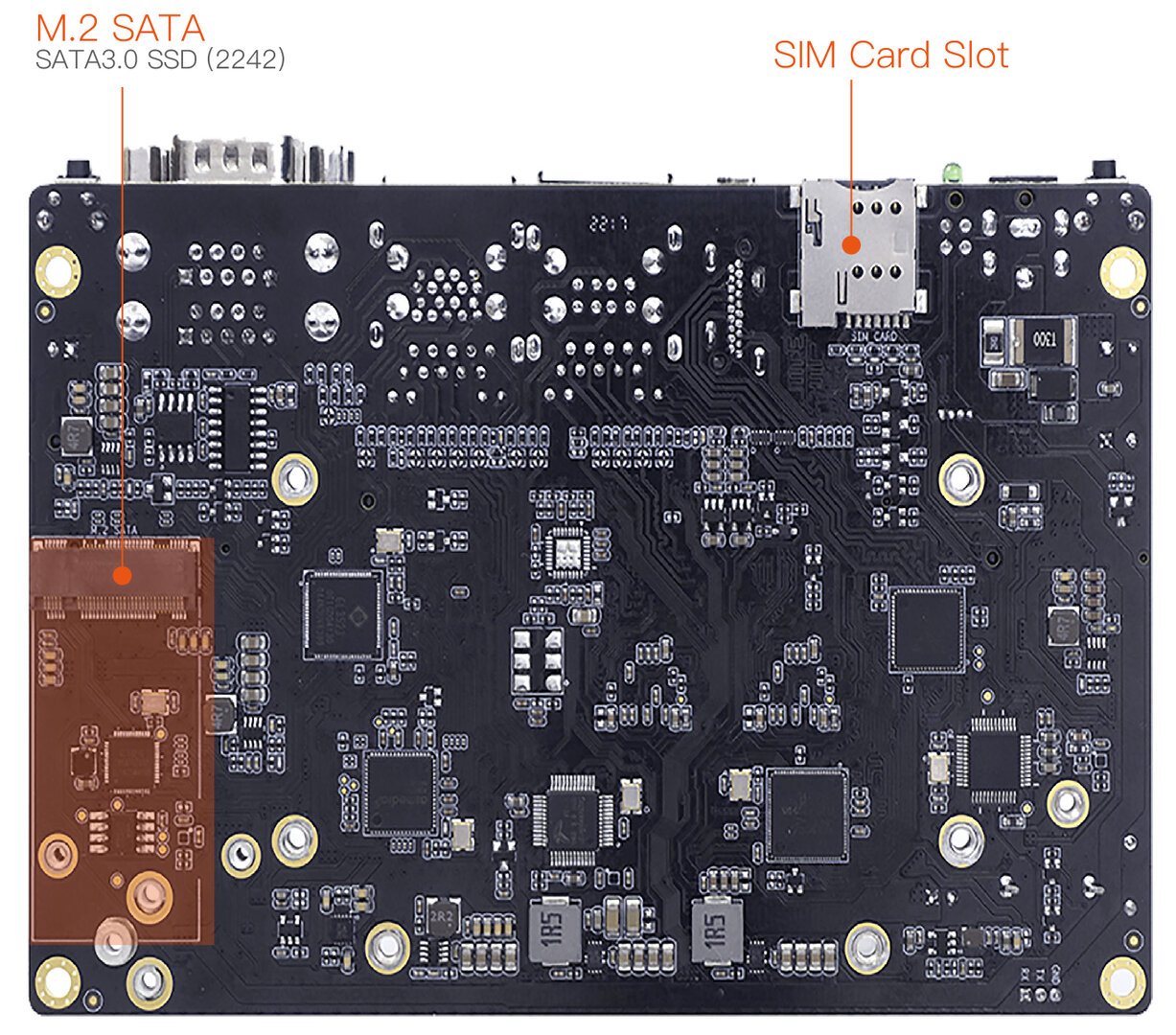

• M.2 SATA interface (SATA3.0 SSD)

The details are as follows:
