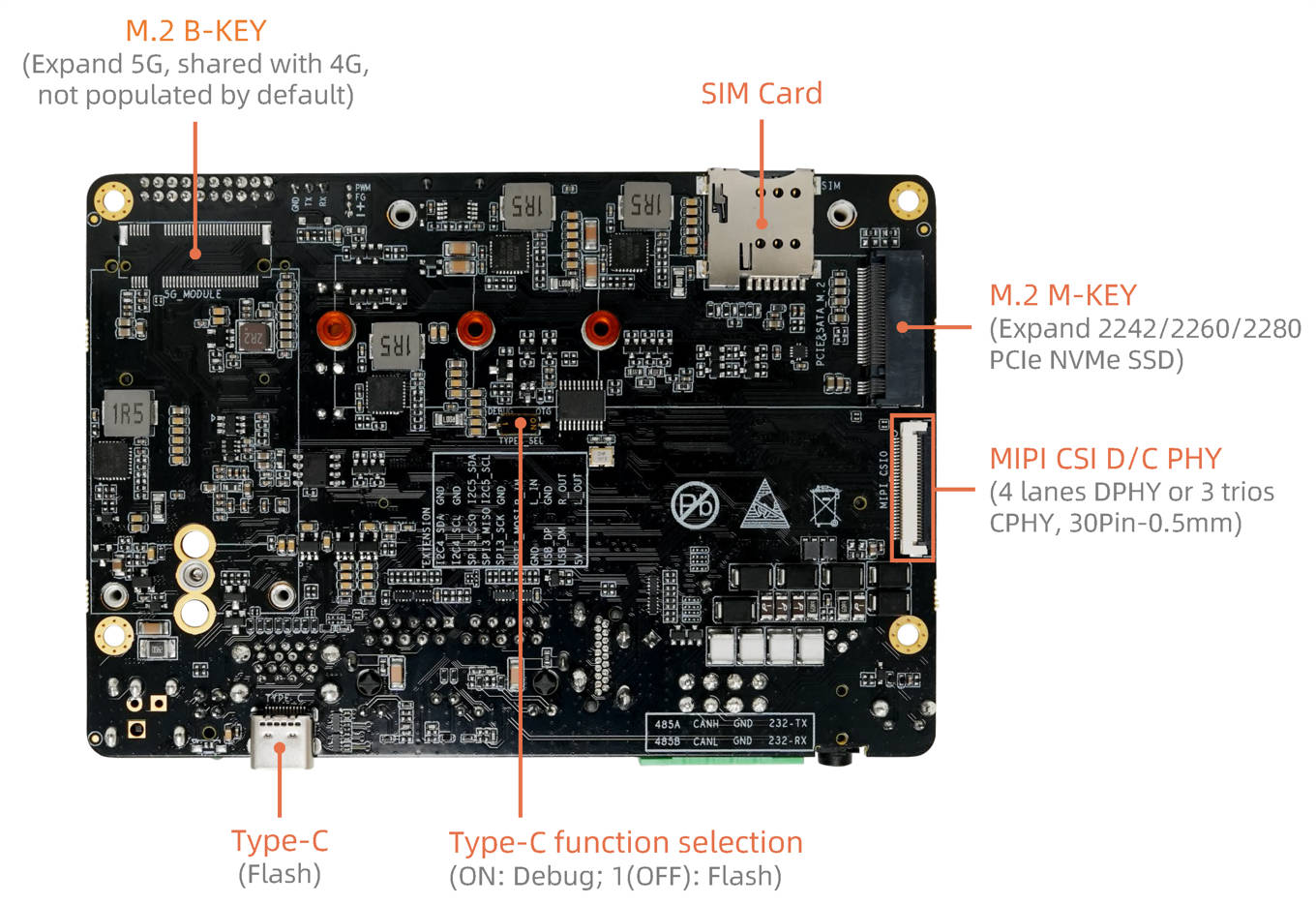

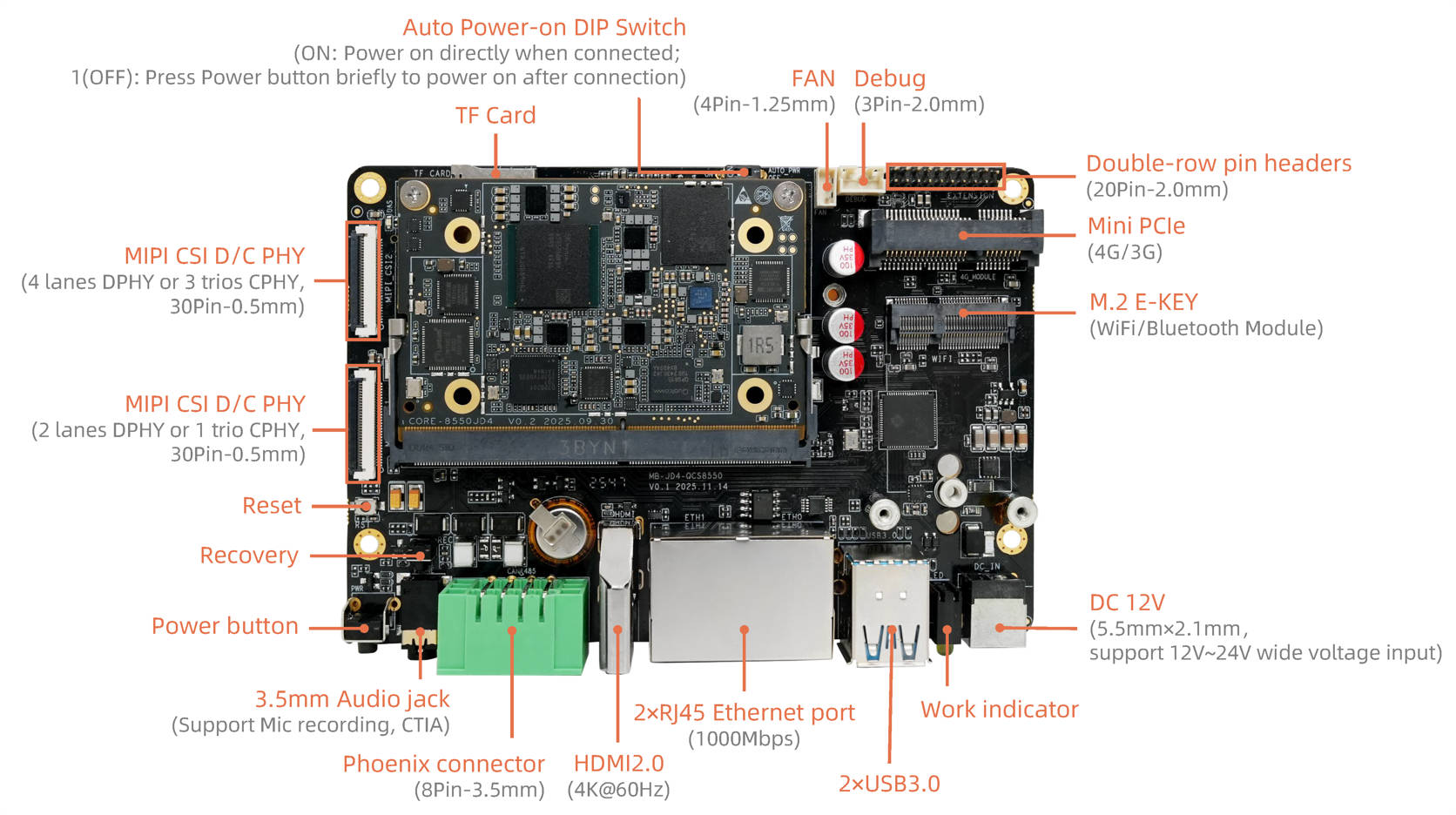

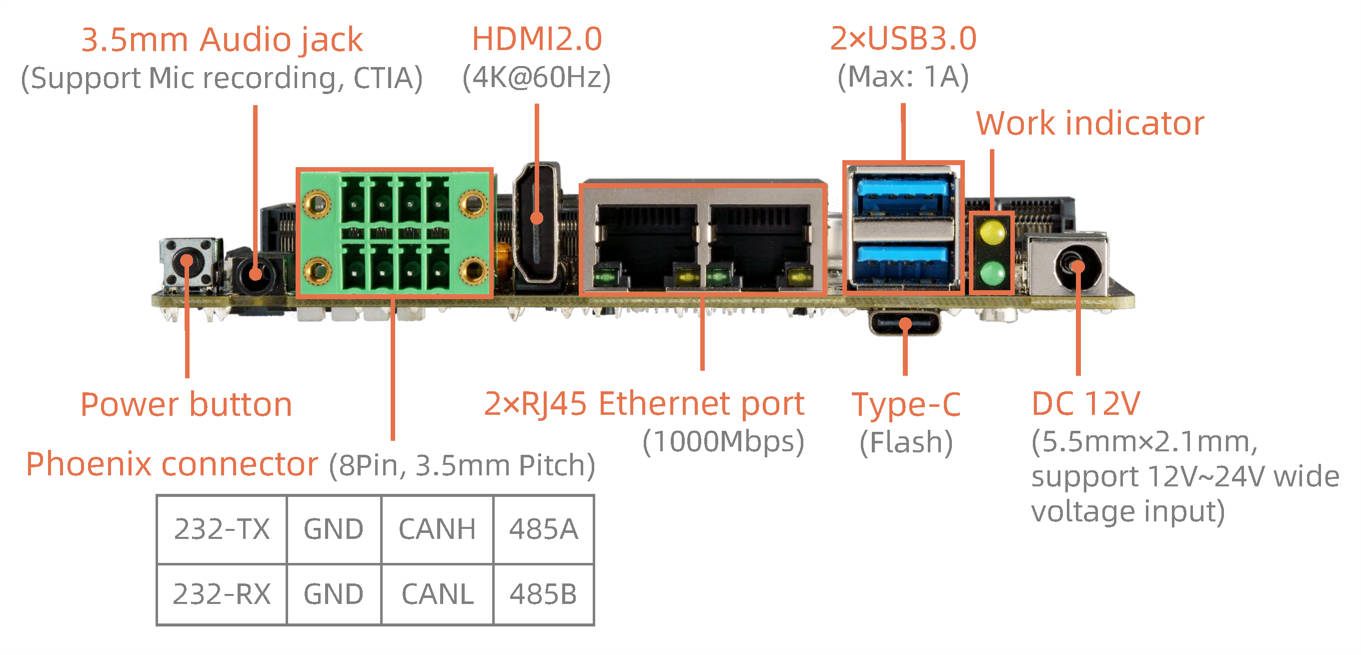

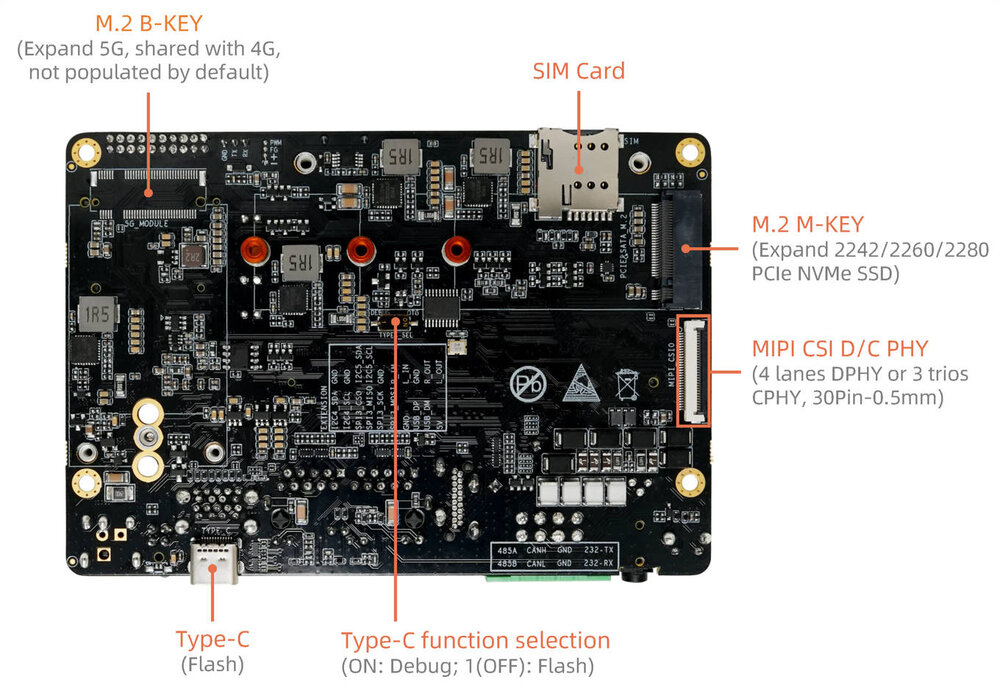

Interface Definition

AIO-8550JD4 provides these interfaces:

• DC power jack
• 2 x USB3.0
• 1 x Type-C (Download/Debug)
• 1 x Console (Debug)
• 2 x 1000M ethernets
• 1 x TF slot
• 1 x SIM slot
• 1 x HDMI2.0
• 1 x 3.5mm headphone jack
• 3 x MIPI CSI
• 1 x FAN
• 1 x Mini PCIe (4G module)
• 1 x M.2 E-KEY (wifibt module)
• 1 x M.2 M-KE (PCIe NVMe SSD)
• 2 x dip switch
• 1 x EDL key (recovery)
• 1 x Reset key
• Power key
