Document Center/Products/System on Module/CORE-1126BJD4/Hardware resources/Interface Definition

Last Updated: 2026-09-10 18:06:40

Interface Definition

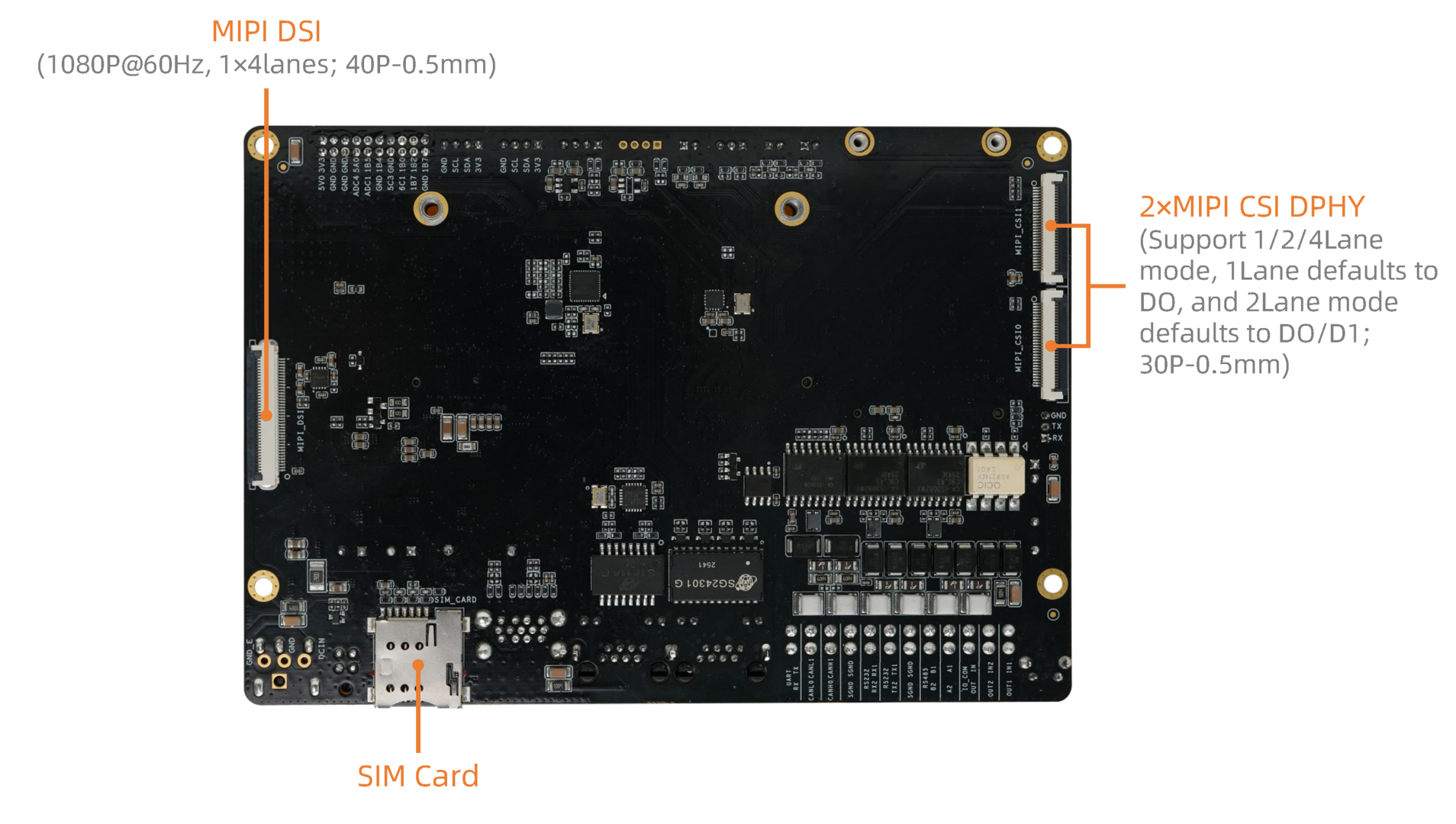

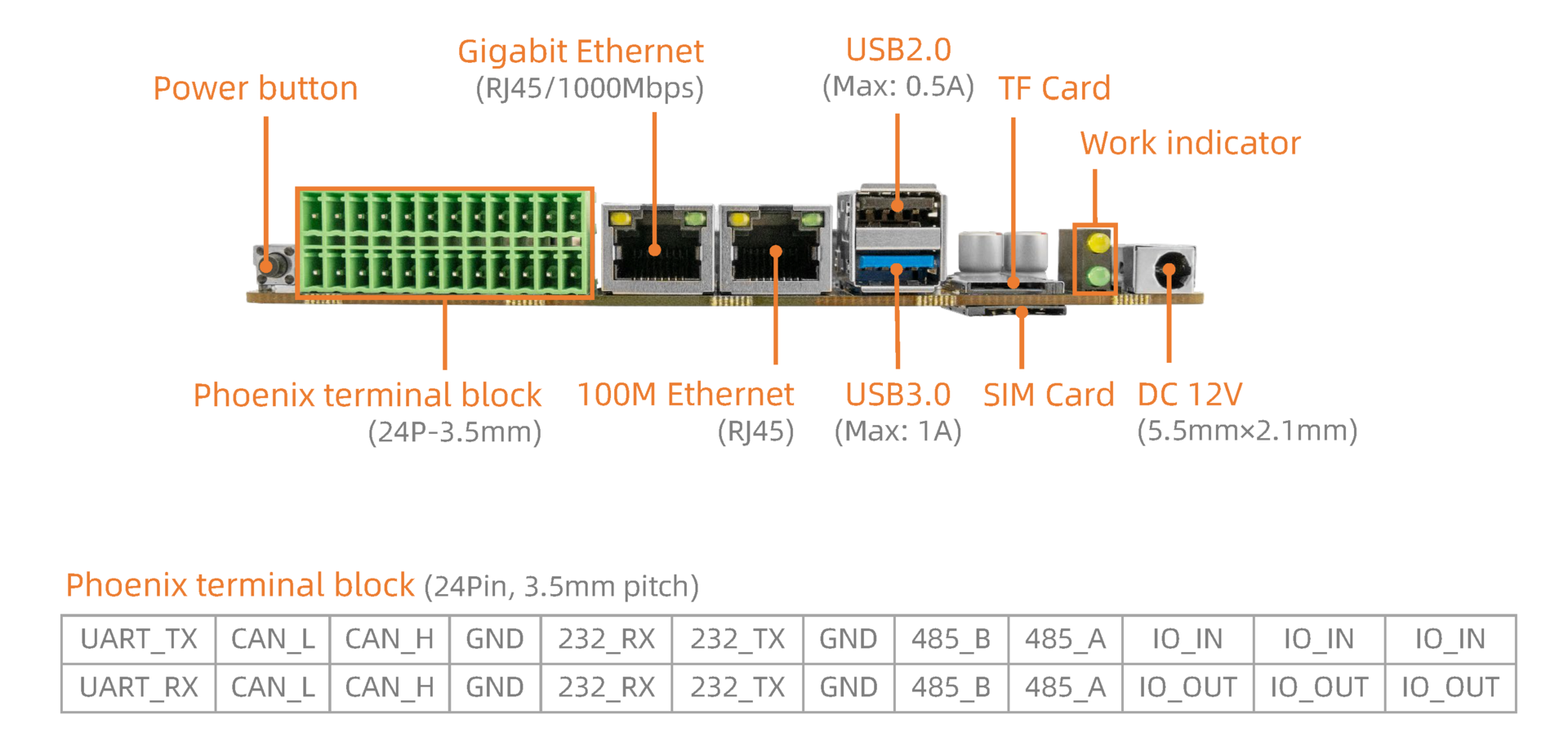

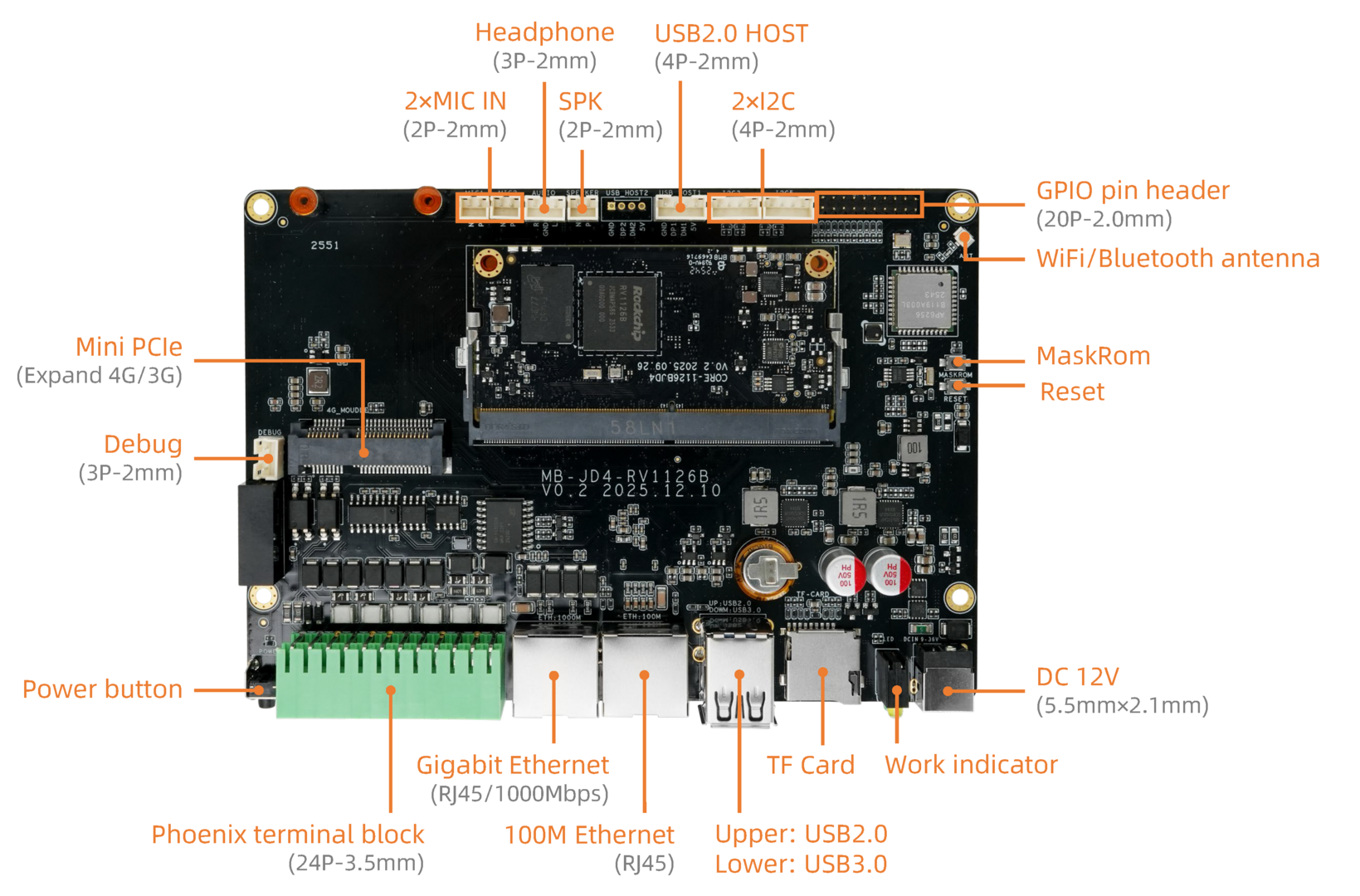

Overall Machine Interface Definition

Linux Device Tree (DTS) ManualPrevious Page

On this page

Interface Definition

Overall Machine Interface Definition
