Interface definition

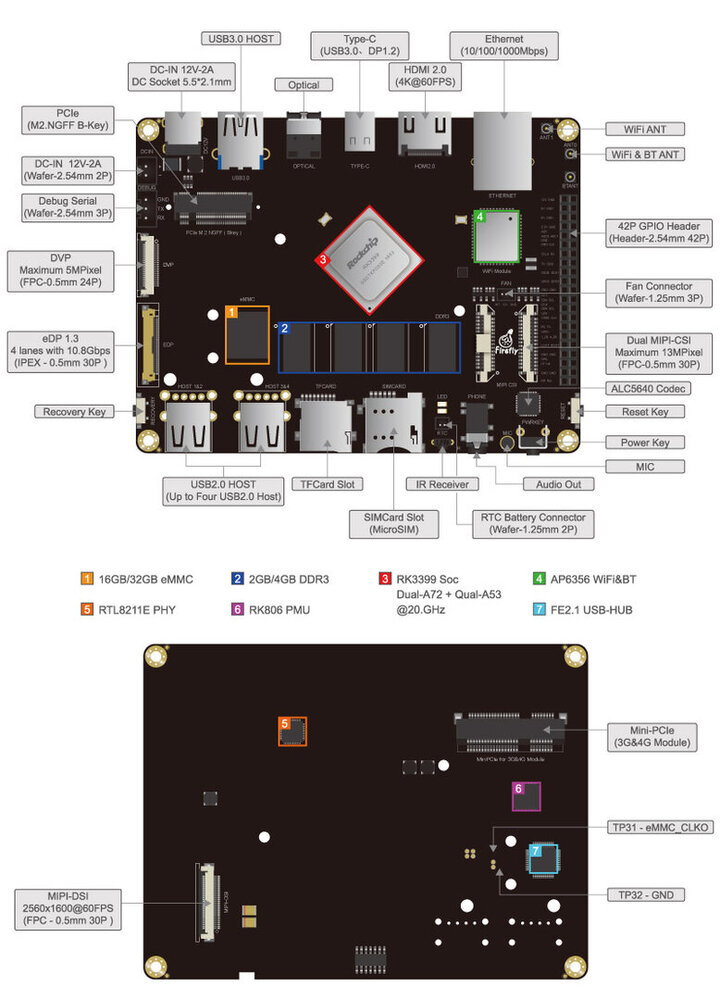

Firefly-RK3399 Interface Definition

Firefly-RK3399 provides a wealth of interfaces, including:

• Power interface,
• USB3.0 HOST,
• Digital optical fiber,
• Type-C,
• HDMI,
• Ethernet,
• WIFI antenna,
• Bluetooth antenna,
• Dual MIPI camera,
• Fan interface,
• Reset button,
• Power button,
• Silicon wheat,
• Audio input and output,
• RTC power interface,
• Infrared reception,
• TF card slot,
• USB2.0 HOST,
• Recovery key,
• EDP screen interface,
• DVP camera interface,
• Debug serial port,
• PCIE interface,
• Battery power input port,
• MIPI screen interface,
• MINI-PCIE.

In addition, there is a row of extended interfaces. Specifically as follows:
