Interface Definition

Device Interface Definition

Firefly-Q6490A provides these interfaces:

• Power Port
• 1 x Type-C (For firmware download)
• 1 x USB3.0
• 1 x USB2.0
• 1 x 1000M Ethernet RJ45
• 1 x HDMI 2.0
• 1 x TF Card slot
• 1 x 3.5mm headphone jack
• 1 x M.2 PCIE
• 1 x MIPI-DSI
• 2 x MIPI-CSI
• Download Key
• Power Key
• Expansion Pin Header

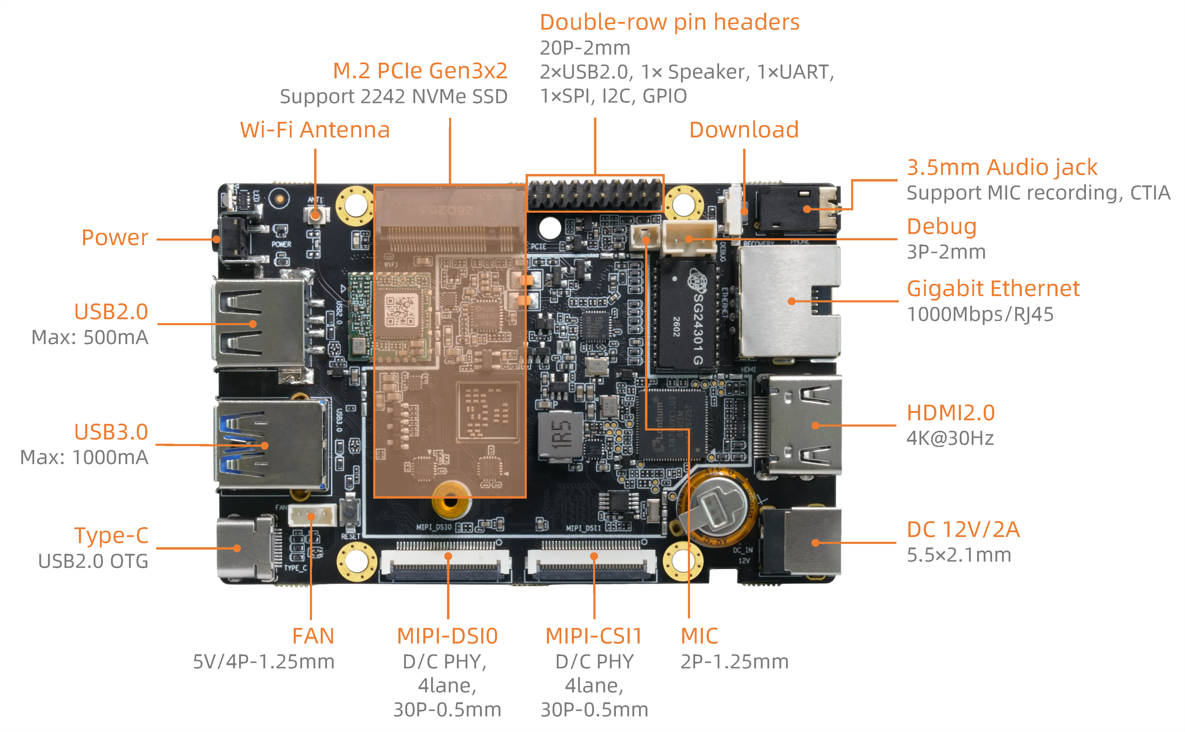

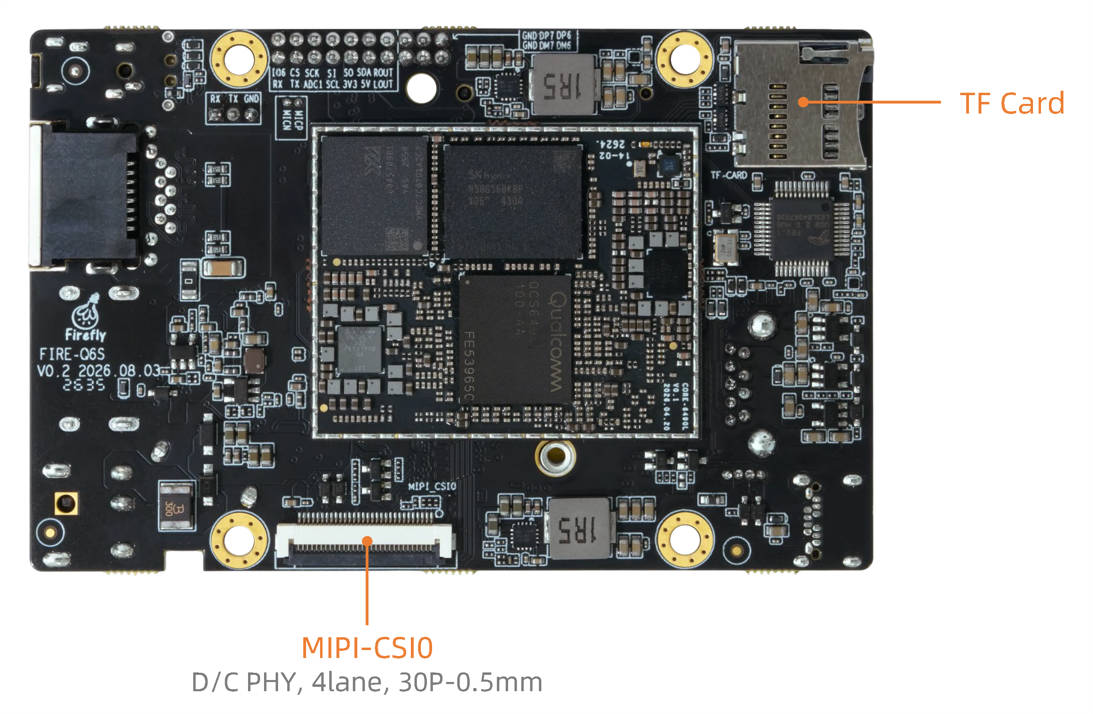

As shown in the figure below:
