USB to TTL serial module

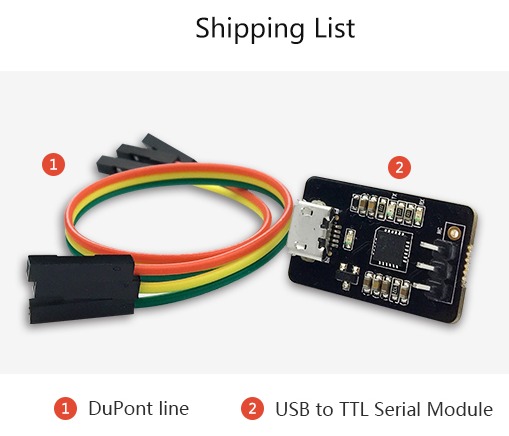

USB to TTL serial module
Product Parameter
- Brand：Firefly
- Size：29mm * 19mm
Reference material
Download driver：https://www.prolific.com.tw/en/portfolio-item/pl2303gl/
Connection Method
The Debug interface can be found in Interface definition. The reference connection is as follows:
| Board | Module |
|---|---|
| TX | TX |
| RX | RX |
| GND | GND |
