SATA

Introduction

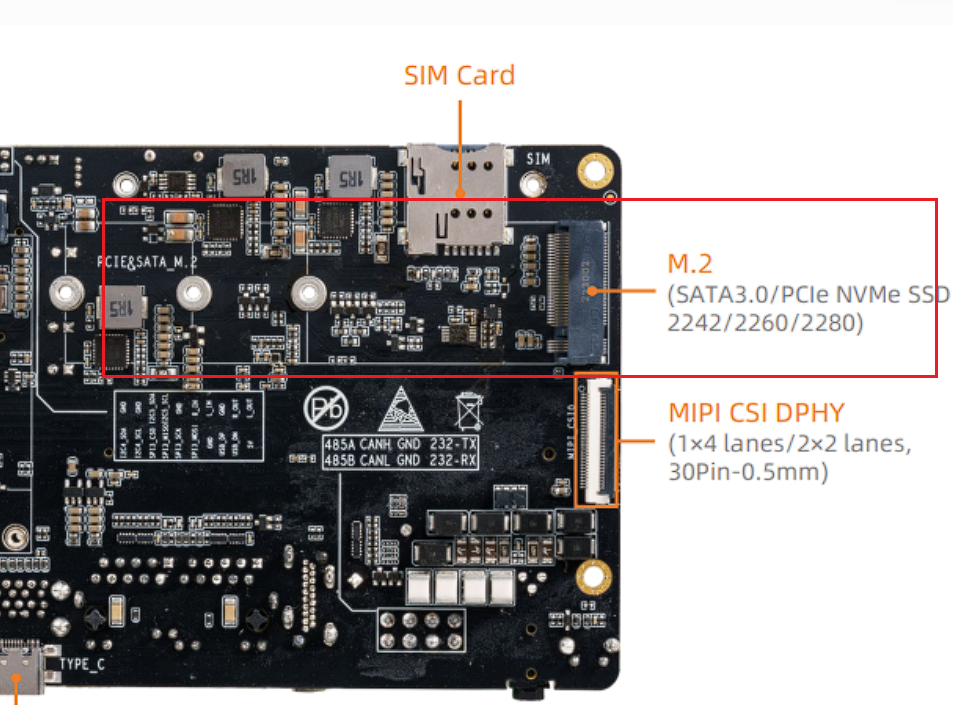

There is a M.2 SATA port on the AIO-3588JD4 development board.

The software can be configured as M.2 SATA3.0 to support SATA SSD , or it can be configured as M.2 PCIe2.0 to support NVMe SSD .

The default software configuration is M.2 SATA3.0, which supports the SATA SSD .

Generally, configure the power supply pins in DTS according to the schematic diagram, select the correct controller node and PHY node to enable, and close the controller node that is multiplexed with it.

There is the following configuration in kernel/arch/arm64/boot/dts/rockchip/aio-3588jd4.dtsi:

#define rk3588
#include "rk3588-firefly-port-aio-3588jd4.dtsi"
#include "rk3588-diff-aio-3588jd4.dtsi"


#define M2_SATA_OR_PCIE 1 /*1 = SATA , 0 = PCIe */

 / {
/* led */
        firefly_leds: leds {
                power_led: power {
                        status = "disabled";

                        gpios = <&gpio0 RK_PC5 GPIO_ACTIVE_HIGH>;//green led
            default-state = "on";
                };

                user_led: user {
                        gpios = <&pca9555 PCA_IO0_3 GPIO_ACTIVE_HIGH>; //yellow led
            default-state = "off";
                };
        };

sata0：sata0 controller node

combphy0_ps：PHY node

pcie2x1l2：pcie2x1l2 controller node

vcc_sata_pwr_en：M.2 SATA power pin node

M2_SATA_OR_PCIE：The default value is 1, which is configured as SATA3.0. If it needs to be configured as PCIe2.0, it needs to be modified to 0.

Mount

Auto mount

Format the hard drive to a usable format in the Android system interface to mount it automatically at boot

Command to mount manually

Find device nodes

ls /dev/block/sd*
/dev/block/sda

Formatted as EXT4 file format

mkfs.ext4 /dev/block/sda

Mount

mount /dev/block/sda /mnt/media_rw/

View the mount path

df -h
/dev/block/sda               916G  24K  916G   1% /mnt/media_rw

cat /proc/mounts  | grep sda
/dev/block/sda /mnt/media_rw ext4 rw,seclabel,relatime 0 0

Read and write speed

The transfer rate of SATA3.0 is theoretically 6.0 Gbps. You can refer to the following commands to test the read and write speed:

# The path is modified according to the actual mount path
# Write 1G file
echo 3 > /proc/sys/vm/drop_caches
busybox dd if=/dev/zero of=/mnt/media_rw/41AD-09EA/test1 bs=1M count=1024 conv=sync
# Read 1G file
echo 3 > /proc/sys/vm/drop_caches
busybox dd if=/mnt/media_rw/41AD-09EA/test1 of=/dev/null conv=sync

# Using fio will format the hard drive
# Write
fio -filename=/dev/block/sda -direct=1 -iodepth 1 -thread -rw=write -ioengine=psync -bs=1M -size=200G -numjobs=30 -runtime=60 -group_reporting -name=mytes
# Read
fio -filename=/dev/block/sda -direct=1 -iodepth 1 -thread -rw=read -ioengine=psync -bs=1M -size=200G -numjobs=30 -runtime=60 -group_reporting -name=mytes
