Interface definition
AIO-3399J Interface Definition
AIO-3399J provides a lot of interfaces, which include:
- DC power imterface,
- Double USB3.0 HOST,
- USB2.0x6,
- HDMI,
- HDMI-IN,
- ethernet,
- Dual LVDS,
- EDP LCD,
- TP Touch Interface,
- Screen voltage jumper interface,
- Blacklight control interface,
- Wifi antenna,
- BT antenna,
- Dual MIPI Camera(one of them is reused with HDMIIN),
- Fan interface,
- Reset button,
- Power button,
- Silicon microphone(HDMIIN audio multiplexing),
- Audio input/output(linein,lineout),
- 3.5mm earphone interface,
- RTC power interface,
- IR receiver,
- TF card slot,
- SIM Kaka slot,
- Extended key interface,
- I2C,
- I2S,
- Speaker interface,
- USB2.0 HOST,
- recovery/reset button,
- Serial debug interface,
- Industrial level serial port (RS485, RS232, 2TTL),
- M.2PCIE-M.key interface,
- RTC Battery-powered interface,
- MIPI LCD(double LVDS reuse),
- MINI-PCIE,
- MIPI-CSI.

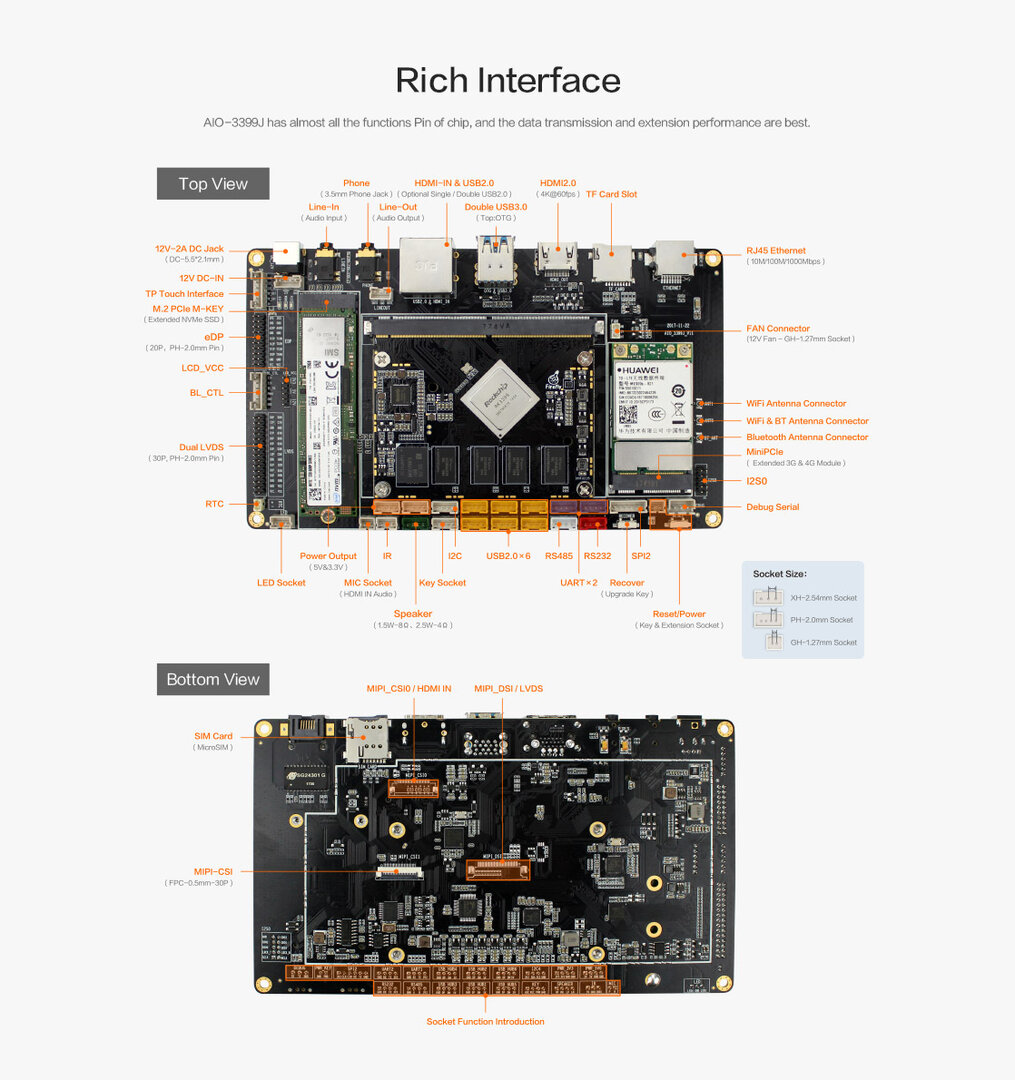

Such as followings:
