Screen module

7.85 MIPI LCD module

Note : the AIO-3399C motherboard does not carry the mipi_dsi interface by default, and the hardware needs to be modified if this function is needed. Please refer to LCD driver section for details.

Product parameters

• model: B080XAN01
• size: 7.85 inch
• resolution: 1024x768
• display interface: MIPI
• panel material: IPS panel
• visual Angle: 160°
• touch screen: multi-point capacitive touch

Compile command

• Android 7.1 (Industry)

./FFTools/make.sh -j8 -d rk3399-firefly-aioc-mipi -l rk3399_firefly_aioc_mipi-userdebug
./FFTools/mkupdate/mkupdate.sh -l rk3399_firefly_aioc_mipi-userdebug

• Android 7.1 (Box)

./FFTools/make.sh -j8 -d rk3399-firefly-aioc-mipi -l rk3399_firefly_aioc_mipi_box-userdebug
./FFTools/mkupdate/mkupdate.sh -l rk3399_firefly_aioc_mipi_box-userdebug

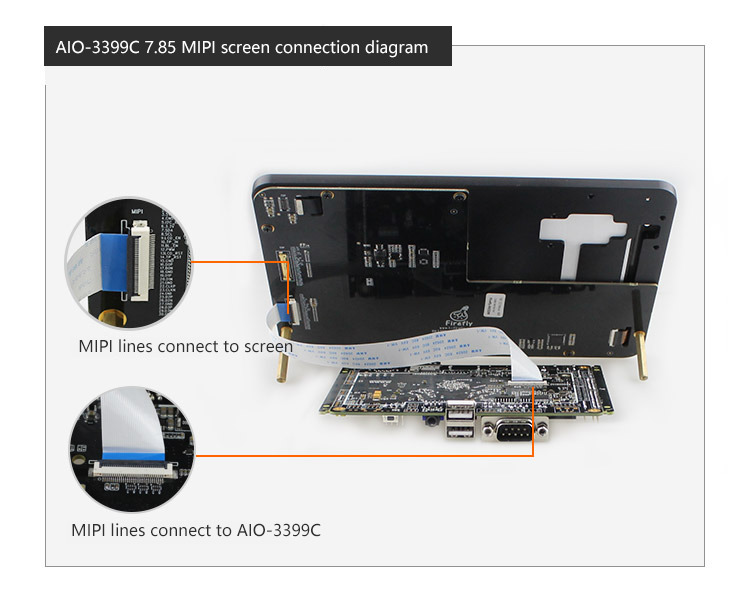

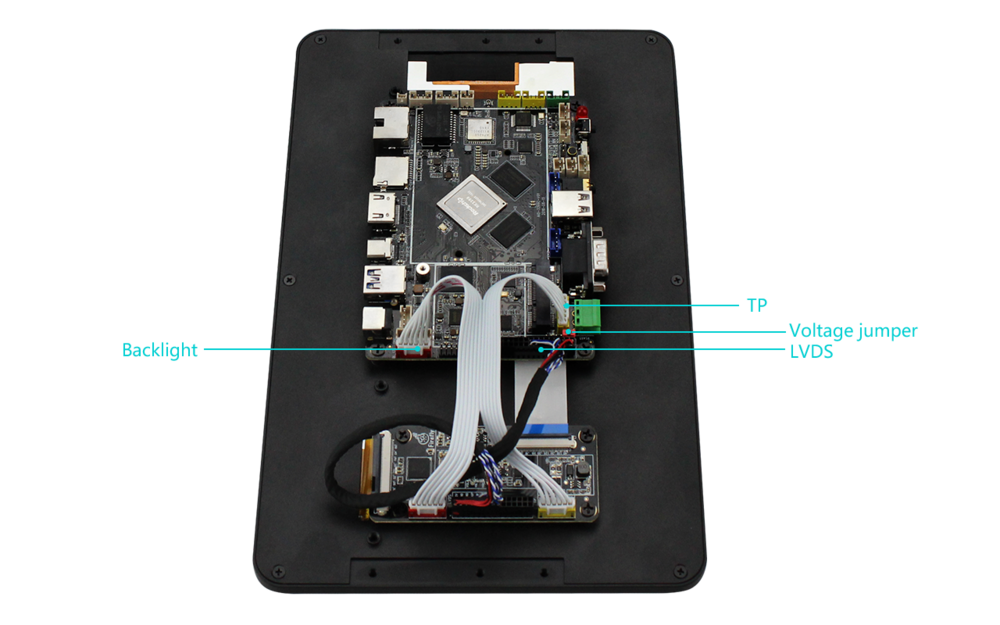

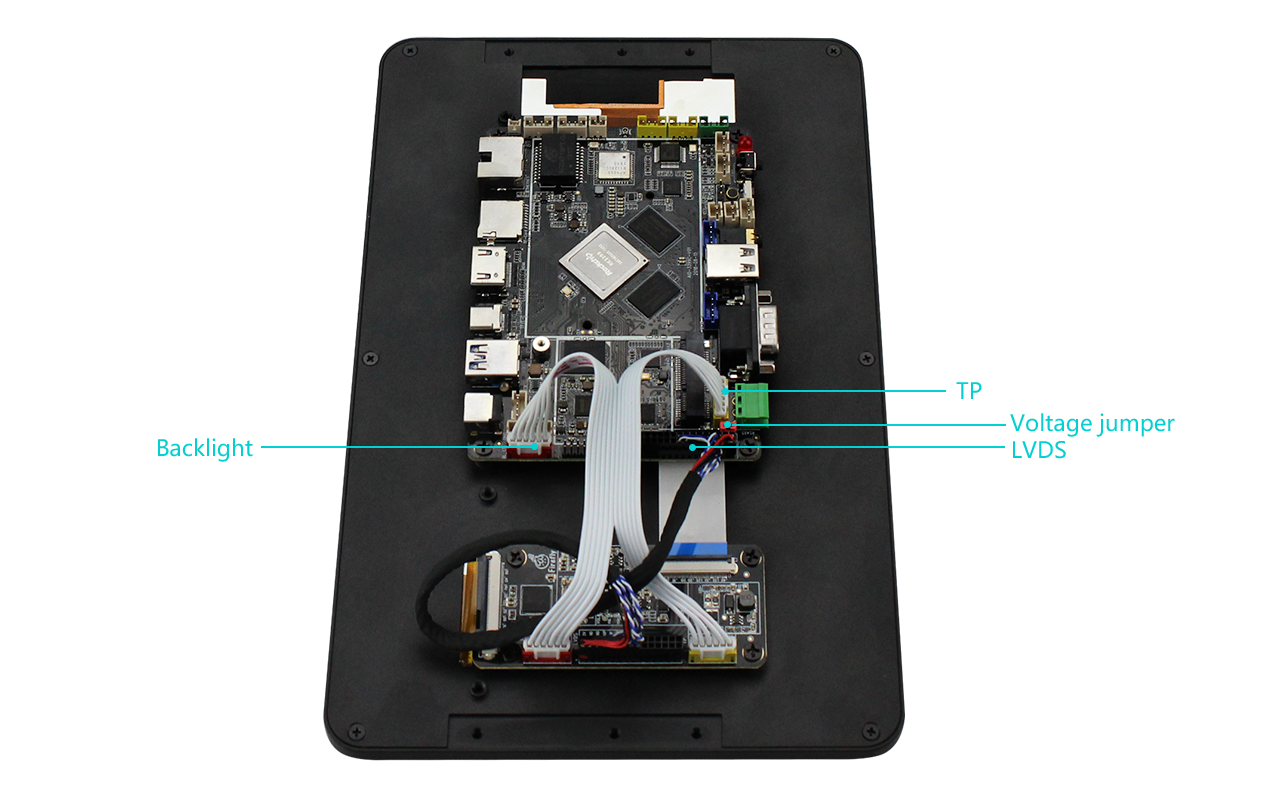

Real figure

• Note: the voltage jumper in the figure below should use 12V.

10.1" LVDS module

Product parameters

• model: HSX101H40C-L28A
• size: 10.1 inch
• resolution: 800x1280
• display interface: LVDS
• visual Angle: 170°
• touch screen: multi-point capacitive touch

Refer to the firmware

• Note: The official firmware name supporting the 10.1 screen has the word "LVDS". Below is the link to the firmware: Firmware link

Compile command

Use the following command when compiling the 10.1-inch screen firmware supported by the official website SDK:

• Android 7.1 (Industry)

1.std version

./FFTools/make.sh -j8 -d rk3399-firefly-aioc-lvds-HSX101H40C -l rk3399_firefly_aioc_lvds-userdebug
./FFTools/mkupdate/mkupdate.sh -l rk3399_firefly_aioc_lvds-userdebug

2.AI version

./FFTools/make.sh -j8 -d rk3399-firefly-aioc-ai-lvds-HSX101H40C -l rk3399_firefly_aioc_ai_lvds-userdebug
./FFTools/mkupdate/mkupdate.sh -l rk3399_firefly_aioc_ai_lvds-userdebug

• Android 7.1 (Box)

1.std version

./FFTools/make.sh -j8 -d rk3399-firefly-aioc-lvds-HSX101H40C -l rk3399_firefly_aioc_lvds_box-userdebug
./FFTools/mkupdate/mkupdate.sh -l rk3399_firefly_aioc_lvds_box-userdebug

2.AI version

./FFTools/make.sh -j8 -d rk3399-firefly-aioc-ai-lvds-HSX101H40C -l rk3399_firefly_aioc_ai_lvds_box-userdebug
./FFTools/mkupdate/mkupdate.sh -l rk3399_firefly_aioc_ai_lvds_box-userdebug

• Android 8.1

./FFTools/make.sh -j8 -d rk3399-firefly-aioc-lvds-HSX101H40C -l rk3399_firefly_aioc_lvds_mid-userdebug
./FFTools/mkupdate/mkupdate.sh -l rk3399_firefly_aioc_lvds_mid-userdebug

Reference data

[schematic of screen module Datasheet& adapter board]

Real figure

• Note: the voltage jumper in the figure below should use 12V.

7.85 "EDP LCD module

Product parameters

• model: LP079QX1
• size: 7.85 inch
• resolution: 2048x1563
• display interface: EDP
• panel material: IPS panel
• visual Angle: 160°
• touch screen: multi-point capacitive touch

Refer to the firmware

Note: The official firmware name supporting the 7.85 screen has the word "EDP785". Below is the link to the firmware : Firmware link

Compile command

Use the following command when compiling the 7.85-inch screen firmware supported by the official website SDK:

• Android 7.1 (Industry)

 ./FFTools/make.sh -j8 -d rk3399-firefly-aioc-edp -l rk3399_firefly_aioc_edp-userdebug
  /FFTools/mkupdate/mkupdate.sh -l rk3399_firefly_aioc_edp-userdebug

• Android 7.1 (Box)

 ./FFTools/make.sh -j8 -d rk3399-firefly-aioc-edp -l rk3399_firefly_aioc_edp_box-userdebug
  /FFTools/mkupdate/mkupdate.sh -l rk3399_firefly_aioc_edp_box-userdebug

Technical data

7.85" screen module DataSheet & Floor schematic diagram

Real figure

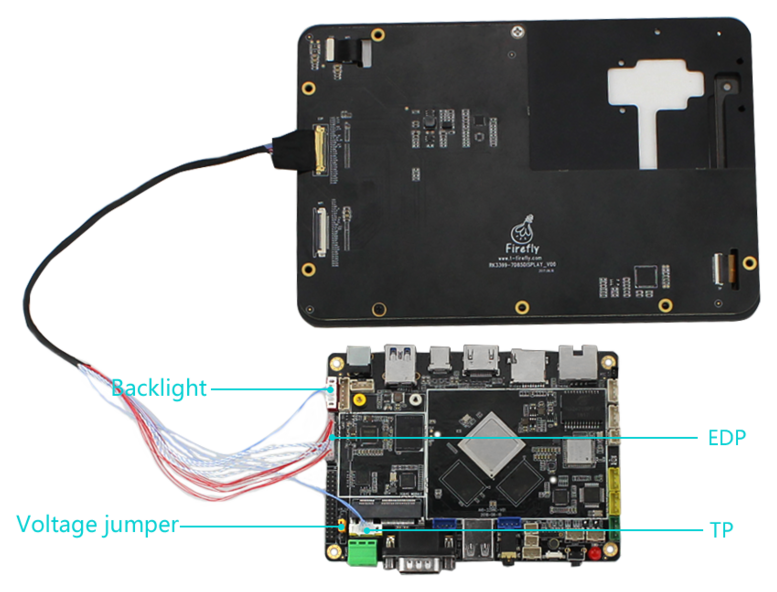

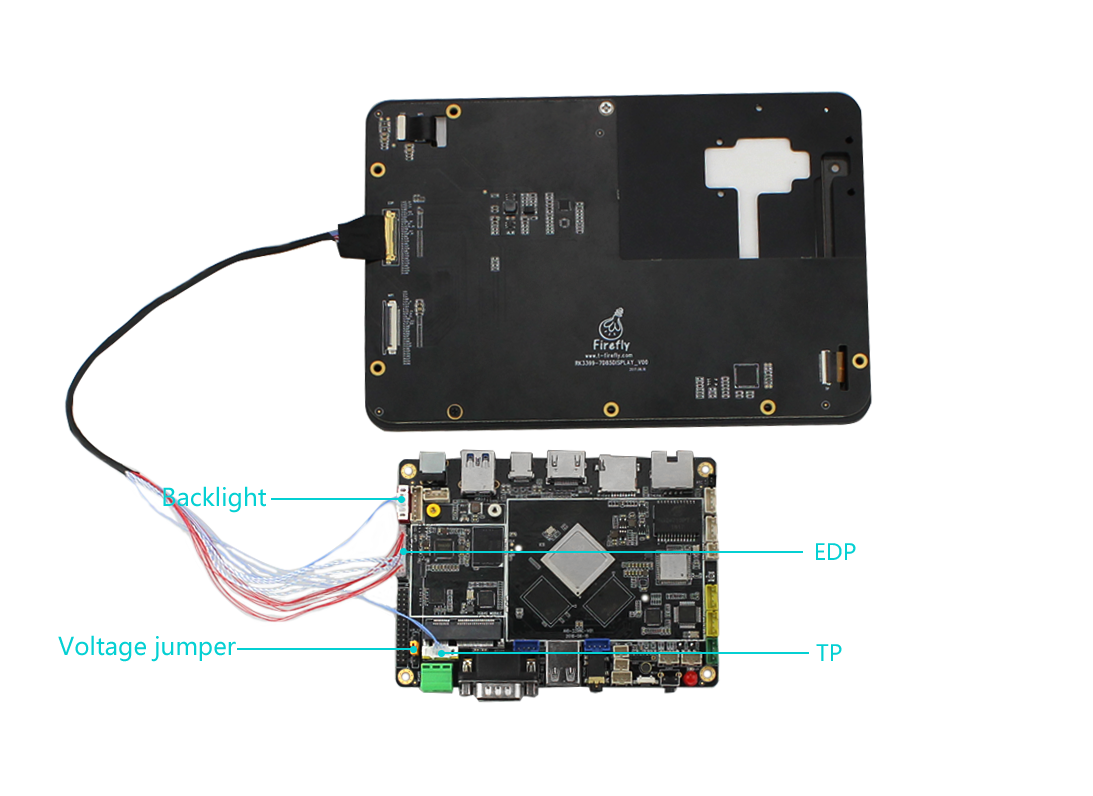

Connection methods

Note: the voltage jumper in the figure below will use 5V, and a wrong connection to 12V will burn the screen chip
