Display module

10.1 inch LVDS display module

Product parameters

• Model: HSX101H40C-L28B
• Size: 10.1 inch
• Resolution: 1280x800
• Interface: LVDS
• Viewing angle: 170°
• Touch screen: multi-point capacitive touch

Note:

1.Firmware for 10.1-inch screen AIO-3128C LVDS Firmware

2.After updating the latest code of AIO-3128C, support for 10.1-inch screen.

Reference materials

Display module Datasheet

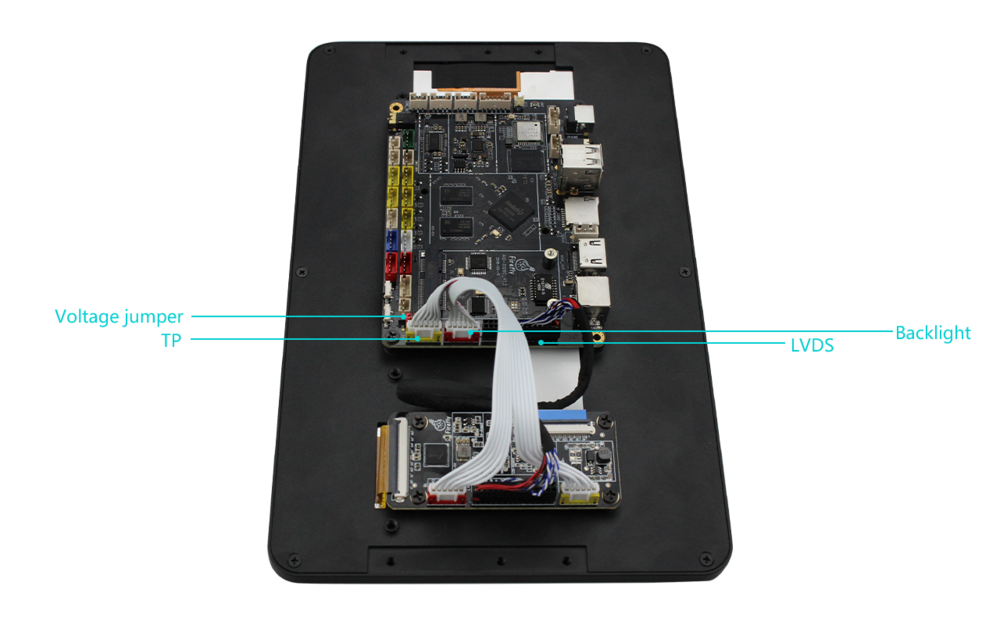

Wiring method
