Introduction

Specification | Purchase | Downloads

AIBOX-9075 KIT is equipped with the Qualcomm IQ-9075 processor, delivering a peak computing power of 200 TOPS and a 13B large model inference performance of 12 TPS, supporting private deployment of edge-side large models. The octa-core CPU runs at up to 2.36GHz, suitable for high-load edge AI and multi-task concurrency. It has a built-in security subsystem and four real-time cores. Based on the Qualcomm Linux software stack, it supports Ubuntu/Yocto systems and mainstream AI inference frameworks. With industrial wide-temperature design and standard GMSL2, CAN-FD, RS485 and optocoupler isolated IO, it is suitable for edge computing, industrial control, intelligent surveillance and robotics scenarios.

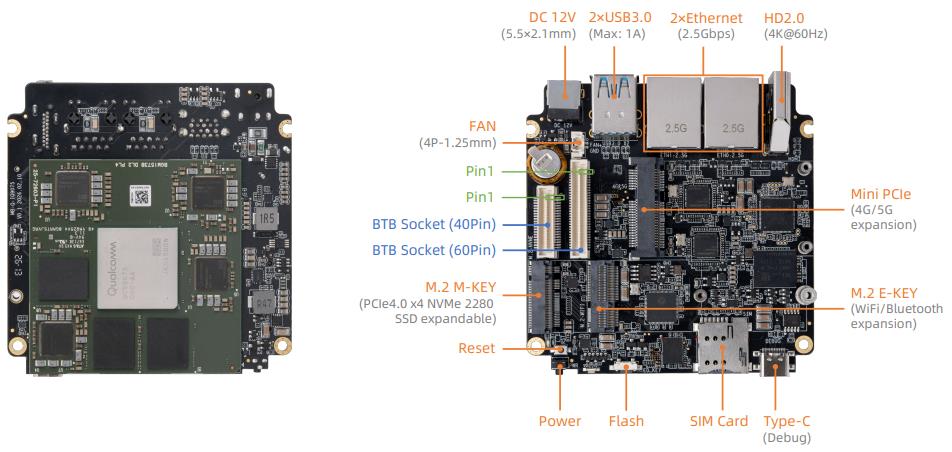

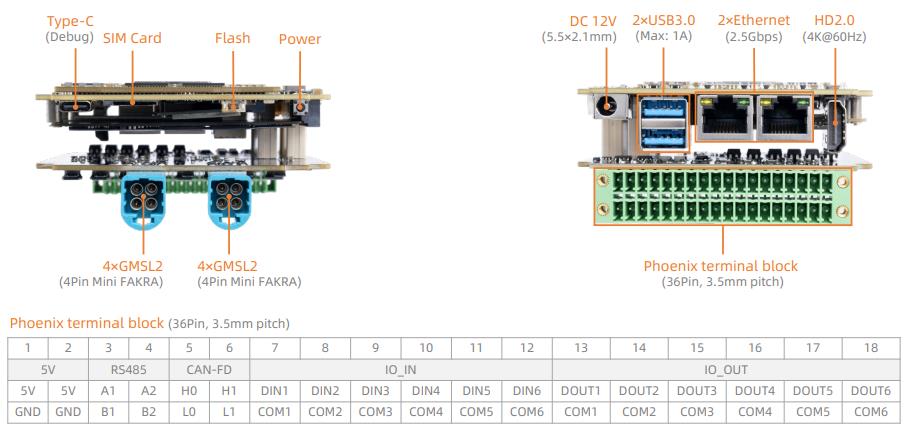

Interface Description

AIBOX-9075 KIT provides rich interfaces, mainly including:

• DC Power Port
• 2 x USB3.0
• 1 x Type-C (For debug console)
• 2 x 2.5G Ethernet RJ45
• 1 x HDMI 2.0
• 1 x SIM Card Slot
• 2 x GMSL2 4Pin Mini FAKRA
• 2 x RS485
• 2 x CAN-FD
• 6 x IO in
• 6 x IO out
• Download Key
• Power Key

Structure and Dimension
