Introduction

Specification | Purchase | Downloads

The EC-R3566PC embedded computer is based on the high-performance open-source ROC-RK3566-PC platform, with an ultra-slim enclosure that is dustproof and anti-interference for long-term stable operation. It supports 4K hardware decoding and provides rich interfaces for easy connection to various industrial devices. It is equipped with an ARM Cortex-A55 architecture quad-core 64-bit high-performance processor with a frequency up to 1.8GHz, an ARM G52 2EE GPU, and an RKNN NPU AI accelerator (integrated in the SoC).

Interface Description

EC-R3566PC provides rich interfaces, mainly including:

• 1 x Type-C (OTG & DC 5V power supply)
• 1 x HDMI 2.0 (4K@60fps)
• 1 x RJ45 (1000Mbps)
• 1 x 3.5mm Audio
• 1 x USB 3.0
• 1 x USB 2.0
• 1 x TF Card
• 1 x Power Key
• 1 x WiFi antenna (ANT)

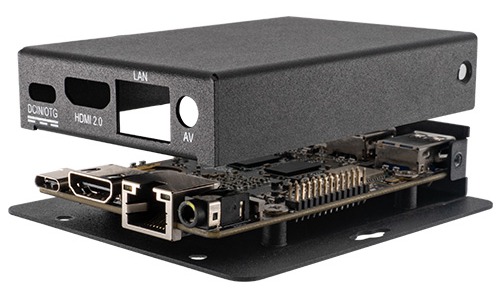

As shown in the figures below:

Structure and Dimensions

Resources and Support

• [Wiki]: Contains Android & Ubuntu driver development and other materials (refer to the ROC-RK3566-PC Wiki)
• [Technical Forum]: A communication platform with more than 100,000 enterprise customers and users
