Introduction

Specification | Purchase | Downloads

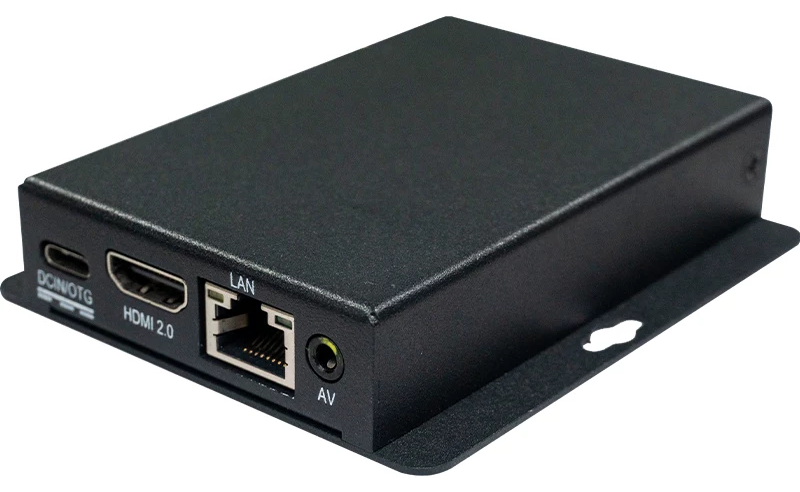

The EC-R3328PC embedded host is built on the high-performance open-source ROC-RK3328-PC platform. It is equipped with a RK3328 quad-core 64-bit Cortex-A53 processor running at 1.5 GHz. The chip integrates a quad-core Mali-450 GPU supporting OpenGL ES 1.1/2.0 and OpenVG 1.1 for powerful graphics performance. Its built-in VPU video engine enables 4K@60fps decoding for VP9 and 10-bit H.264, 1080p decoding of VC-1, MPEG, VP8 and other formats, as well as 1080p H.264 encoding. Featuring a premium metal enclosure, the device delivers efficient heat dissipation, dust resistance and shockproof performance. Compact and easy to deploy, it is ideal for long-term continuous stable operation.

Interface Description

EC-R3328PC provides rich interfaces, mainly including:

• 1 x Type-C (USB3.0 OTG / DC IN 5V/2A power supply)
• 1 x HDMI 2.0 (4K@60Hz, HDCP 1.4/2.2 supported)
• 1 x AV (CVBS output, complying with the 480i and 576i standards)
• 1 x RJ45 (Gigabit Ethernet, 1000Mbps)
• 1 x USB3.0 (current limit 1000mA)
• 1 x USB2.0 (current limit 500mA)
• 1 x TF Card
• 1 x WiFi antenna (single-band 2.4GHz WiFi, 802.11 a/b/g/n, Bluetooth 4.2)
• 1 x IR receiver
• 1 x Power button

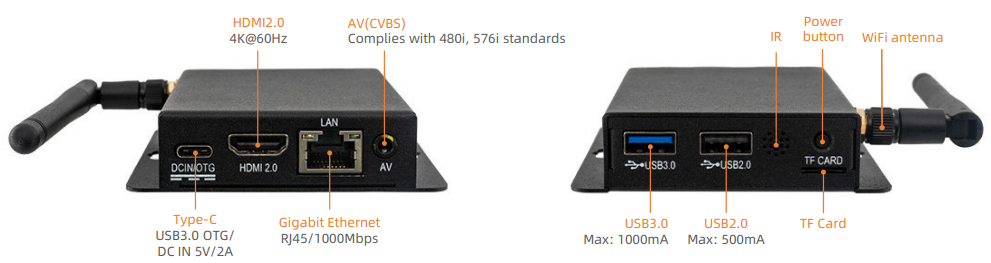

The interface layout is shown in the figure below:

Structure and Dimensions

Resources and Support

• [Wiki]: Includes information on Android & Ubuntu driver development (see ROC-RK3328-PC Wiki)
• [Technical Forum]: A communication platform with more than 100,000 enterprise customers and users
